Zenmuse Z15-5D III (HD) User Manual
©2014 DJI. All Rights Reserved.
9

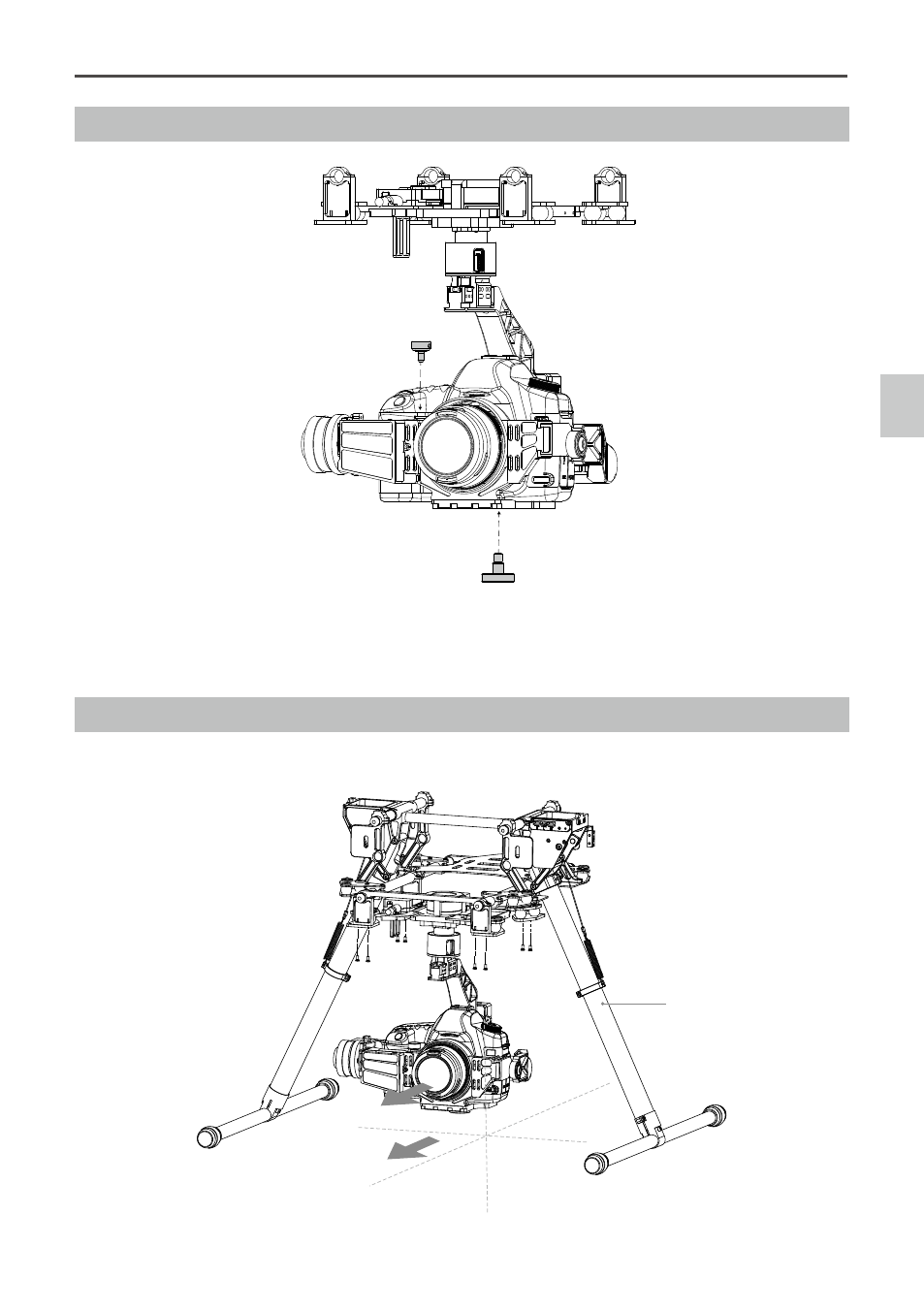

Mounting the Camera
Mount
Z Y
X
S1000 Landing Gear
Lens Direction
Aircraft Nose Direction
2. Mount the camera onto gimbal as shown above.
3. Adjust the camera and tighten the top camera mounting screw. Then tighten the bottom camera mounting
screw and the lens retaining ring screw.
Mounting the Gimbal to the Landing Gear
The following diagram shows the gimbal mounted on a DJI S1000. You may also mount the gimbal onto
different landing gear by referring to this diagram.
Lens Retaining Ring Screw
Camera Mounting Screw
