Video Signal Transmission

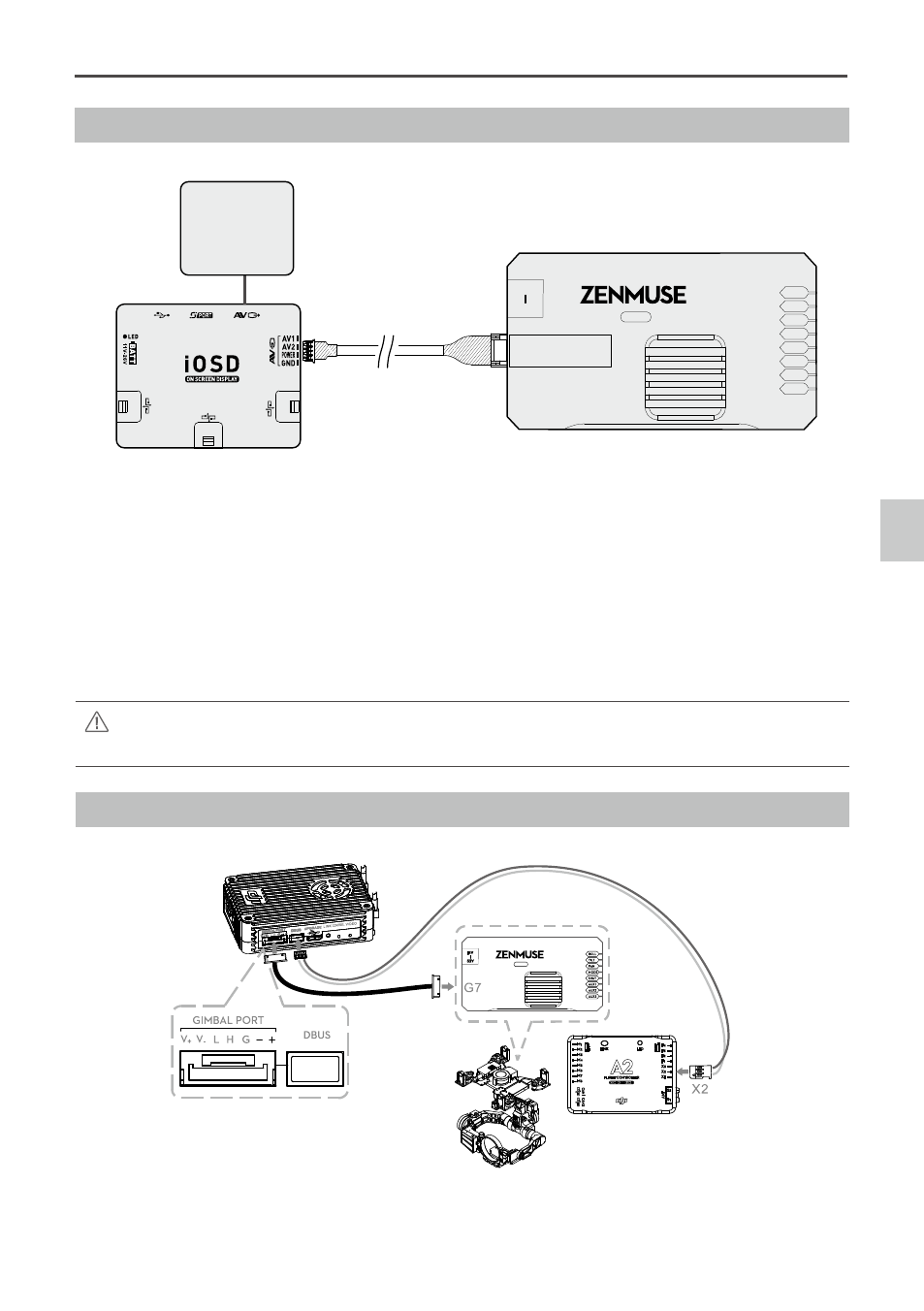

1. Connect the iOSD Mark II cable to the GCU’s G7 port.
2. Complete the other connections between the iOSD Mark II cable and the wireless video transmission
module, according to their manuals.
3. Toggle HD/AV Switch to the AV position. (See Page 7 for the location of the HD/AV Switch)
4. Power on the gimbal. If the gimbal LED indicator blinks yellow, it is functioning normally. If the LED
indicator shows a continuous, unblinking yellow light, the video signal is lost. Check the connections
between the camera and the HDMI video input.
Make sure to connect the wireless video transmission module and the iOSD MarkII cable to the GCU
before powering on.
