Gimbal Description
To avoid motor damage, ensure there is nothing blocking the rotation of the servo drive modules.
Clear obstacles or immediately cut off the power if any blockage occurs.
The servo drive modules have two motor command input ports and one private encoder port.
The HDMI-HD/AV module converts HDMI to HD (or AV) using a cable connected to the camera HDMI
port.

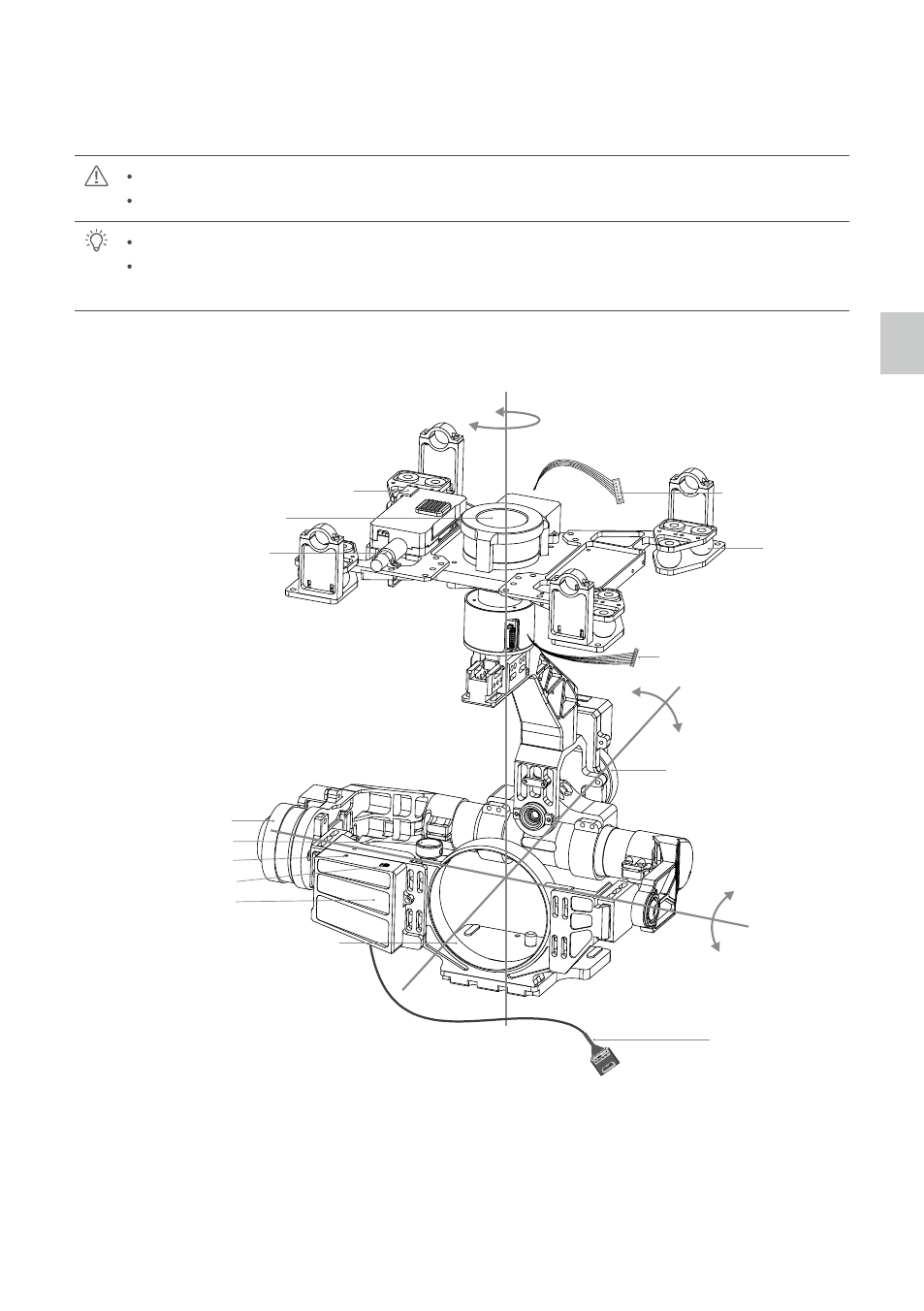

Gimbal Description
Pan
360°
Damping Unit
Servo Driver Module 2
Roll
±25°
Tilt
- 120° ～ +15°
HDMI-HD/AV Module
Camera Mount Position
Receiver Mounting Board
Servo Driver Module 1
Cable Clamp
Servo Driver Module 3
Gimbal LED Indicator
Lens Retaining Ring Screw
9-Pin Port
To G9 port of GCU
HD/AV Switch
Motor Input Port
To G6 port of GCU
HDMI Cable
