a triangle is formed which will allow for an easy solution of the
exit fitting angle in step 2.
0’ -39”
15/16
TRA
VEL
0’ - 15”
RUN
Unknown
Exit Fitting
Angle

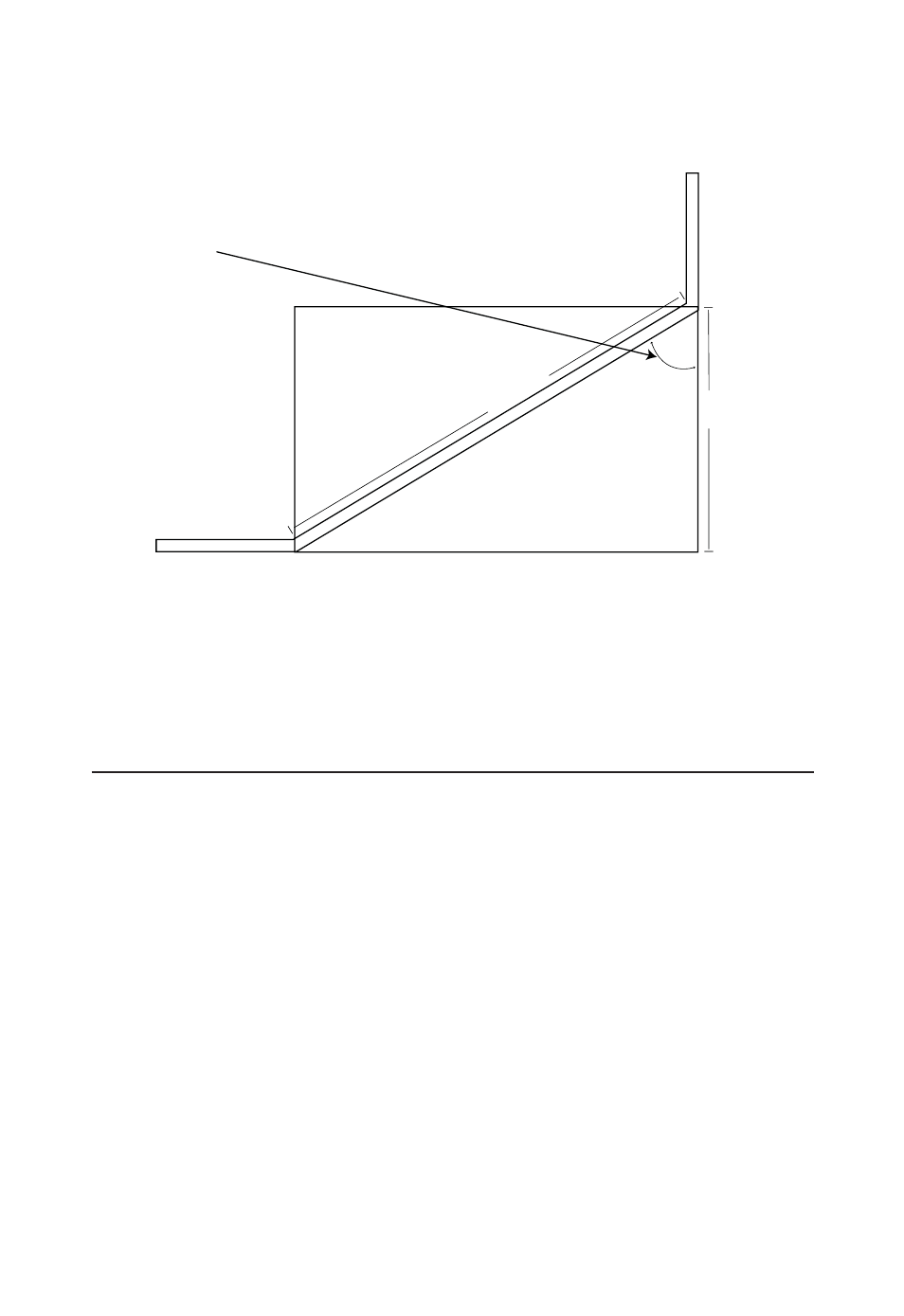

Diagram 2
2. Next, use the Pipe Trades Pro’s built-in right-angle functions
to solve the triangle in Diagram 2 and calculate the exit fitting
angle. Use the pipe length from step 1 as your Travel.
KEYSTROKE DISPLAY
    
39-15/16 INCH

TRAV 39-15/16 INCH
   
RUN 15 INCH

/_Ø 67.94°
The entry fitting angle (lower pipe fitting in Diagram 1) is 43.44°
and the exit fitting angle (upper pipe fitting in Diagram 2) is 67.94°.
