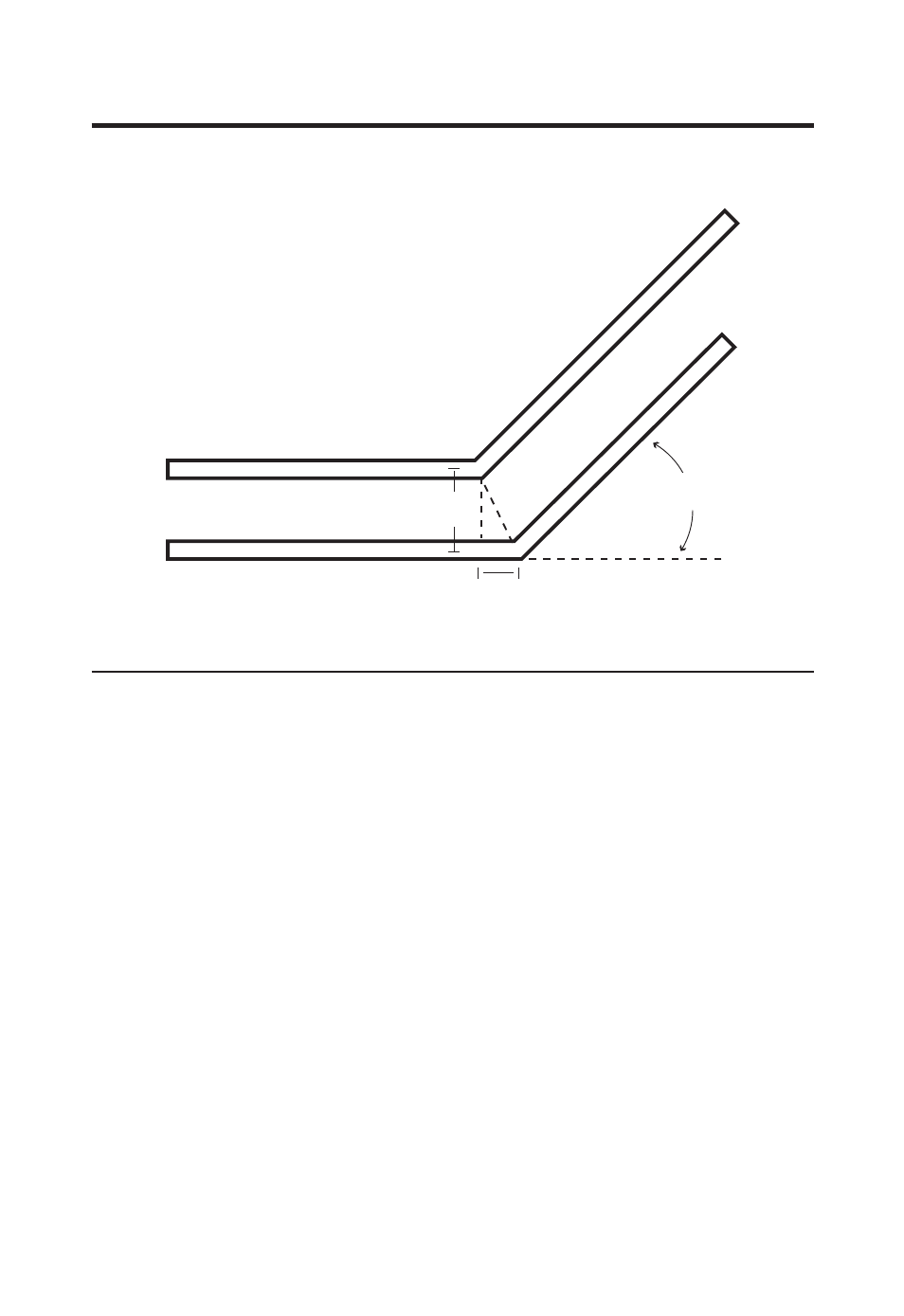

Concentric Pipe Bend Cutback
Find the pipe Cutback when you are running pipes through a
45º bend with a 10" offset.
10”
CUTBACK
45º
KEYSTROKE DISPLAY
  0.
1. Enter the bend angle:
  
/_Ø 45.00 º
2. Enter the Offset:
   
OFST 10 INCH
3. Calculate the Cutback:


CUT 4-1/8 INCH
