Rolling Offset – Cut Length

Find the end-to-end pipe length for a rolling pipe offset with a
13” Roll, a 24” Offset, and an advance of 32”. The bend angle
is unknown. This example assumes 6” Steel, factory made long
radius butt weld elbows are used with a Welder’s Gap of 3/32”.
Note: the default Welder’s Gap is 1/8”.

Note: All Take-Out calculations are based on Carbon Steel
O.D. See the Cut Length – Known Take-Out Value example
to solve Cut Lengths for known Take-Out values.

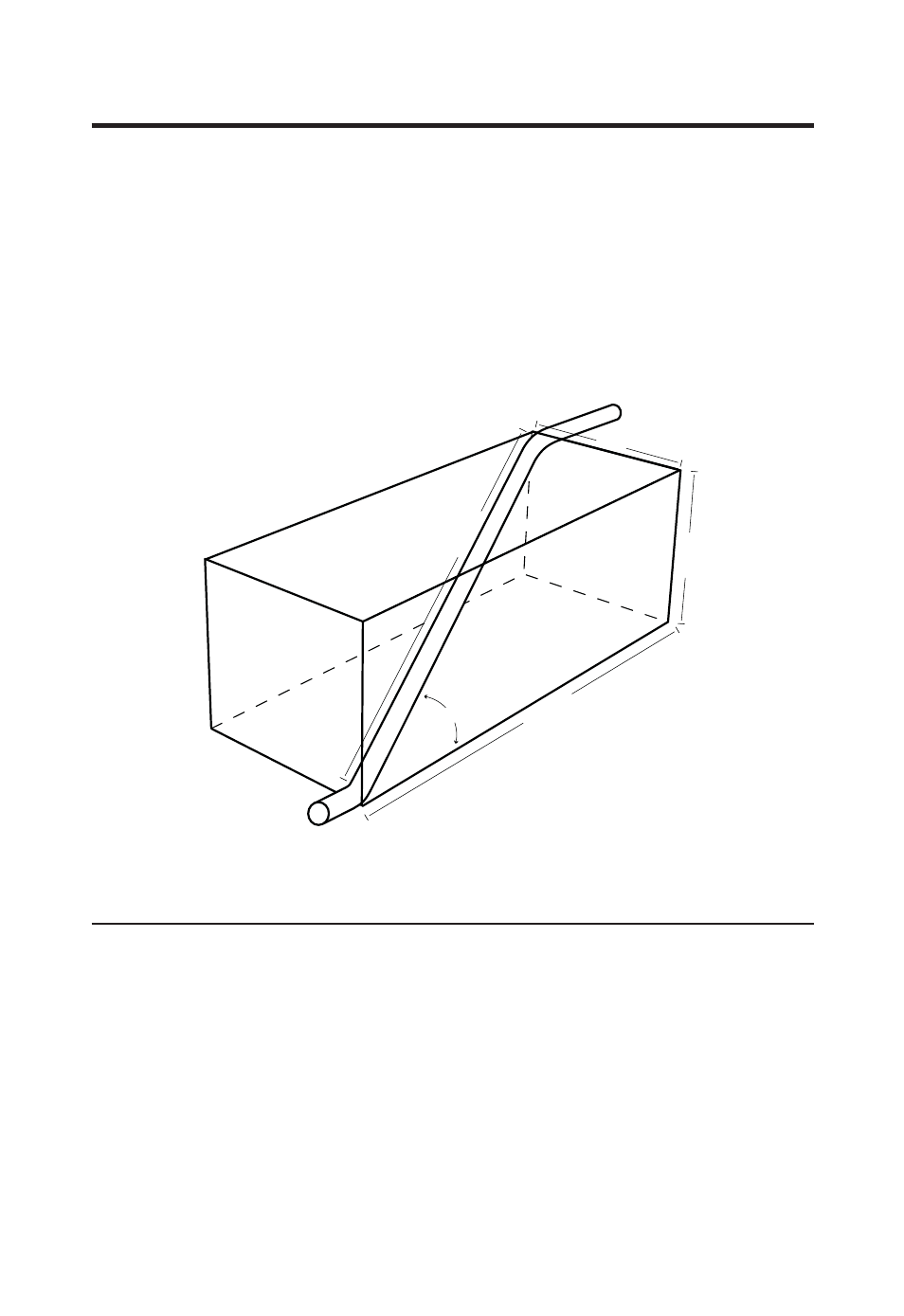

ADV

ANCE

LENGTH

OFFSE

T

ROLL

BEND

KEYSTROKE

DISPLAY

  ALL

CLEArEd

1. Enter Pipe Size:


STD SIZE 6 INCH

2. Change the default Welder’s Gap from 1/8” to 3/32”:
*

GAP 0-3/32 INCH

3. Enter Offset:
 

OFST 24 INCH

(cont'd)
