32 —
P
IPE
T
RADES
P
RO
™
Unknown

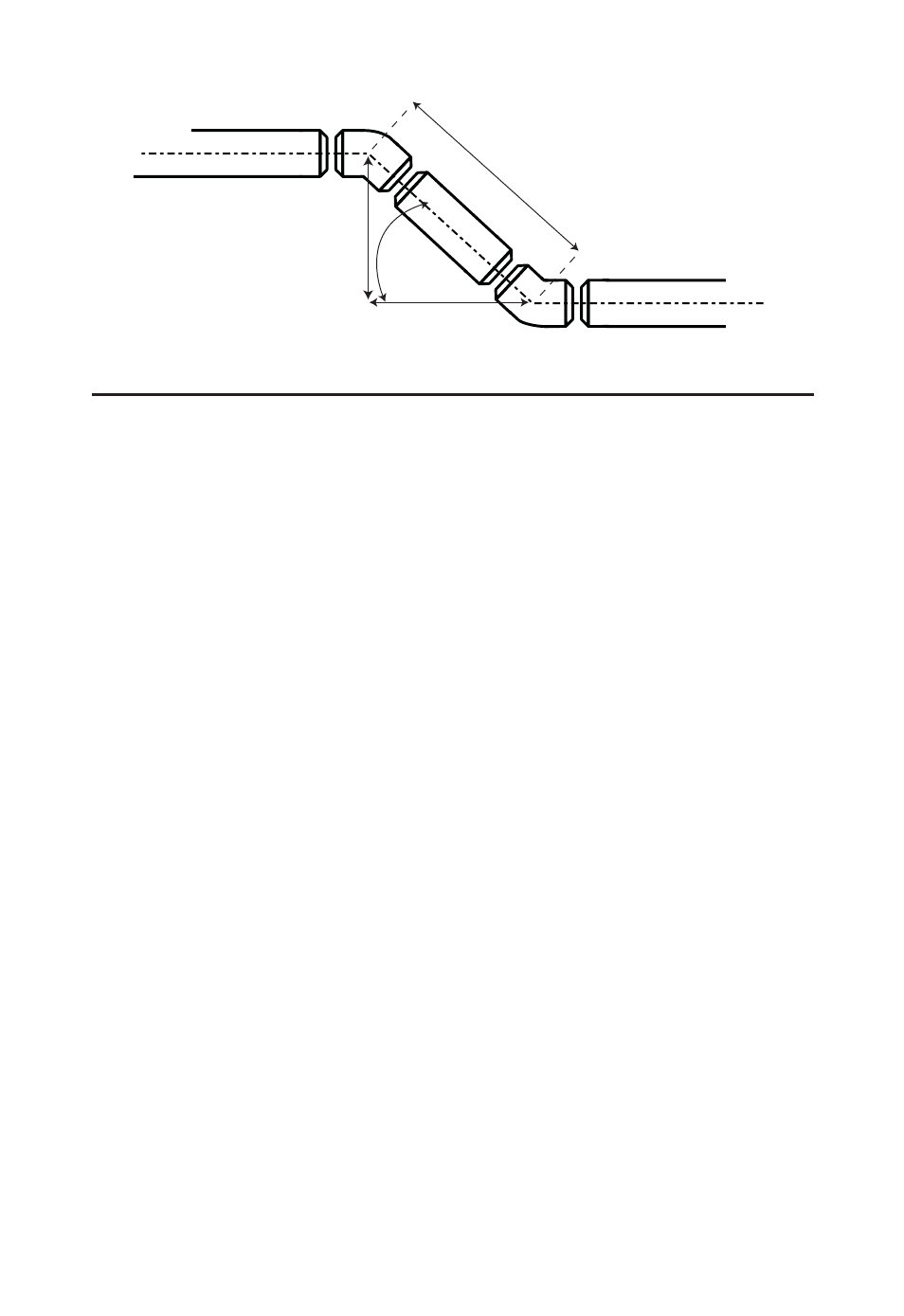

Bend Angle
12˝ Run
10˝ Offset
Travel
KEYSTROKE DISPLAY
ALL
CLEArEd
1. Select Stainless Steel:
MATL S.StEEL
2. Enter Pipe Size:
40 SIZE 6 INCH
3. Enter 0 for Welder's Gap:
GAP 0 INCH
4. Enter Offset:
OFST 10 INCH
5. Enter Run:
RUN 12 INCH
6. Find the pipe length:
TRAV 15-5/8 INCH
CUT 9-1/8 INCH
TO 3-1/4 INCH
GAP 0 INCH
FIT° 39.81°
IARC 3-15/16 INCH
CARC 6-1/4 INCH
OARC 8-9/16 INCH
The cut length for the pipe is 9 and 1/8 inches and bend angle
is 39.81°. Included in the outputs are the arc lengths to be used
to cut your butt weld elbow to the calculated bend angle. These
are inner arc length of 3 and 15/16 inches, center arc length of
(cont'd)
