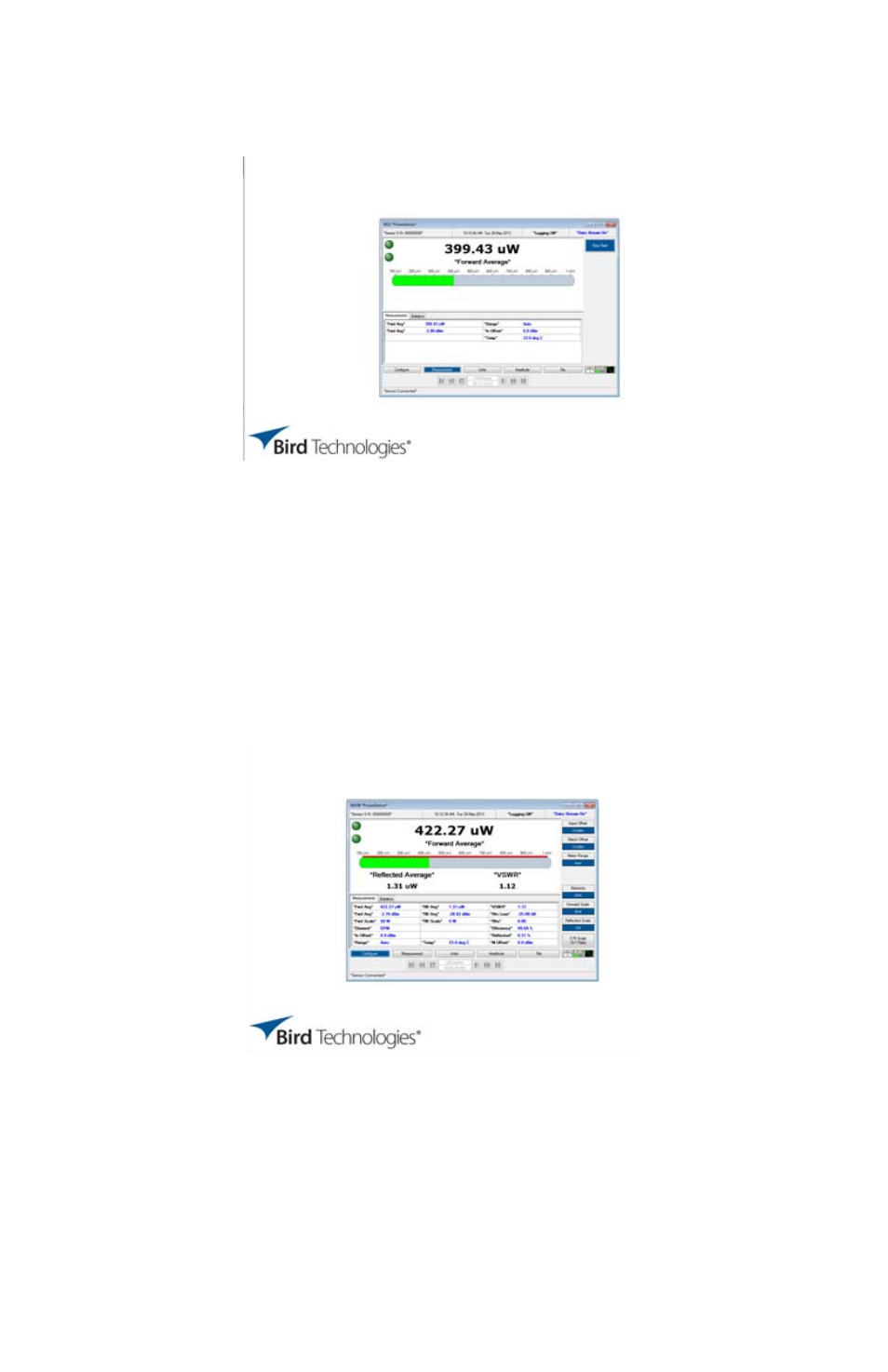

Figure 18 VPM, Configure, TPS
For Sensor 5014
43 Peak -
Refer to the 5014 owner’s manual.
DPM -
Refer to the 5014 owner’s manual.
1. Press the soft key to select the type of element.
2. Press the Forward Scale to enter the watt rating of the forward element.
3. Press the F/R Scale 10:1 Ratio soft key to select ON.
4. Press the Input Offset soft key and use the key pad to enter the amount of
attenuation then press the Enter key.
Figure 19 VPM, Configure, DPS
For Statistical Senors
Input Offset -
See “Input Offset” on page 18.
Match Offset -
See “Match Offset” on page 18.
Meter Range -
.
Smoothing -
See “Smoothing” on page 19.
Freq Setpoint -
See “Frequency Setpoint” on page 19.
Duty Cycle -
See “Duty Cycle” on page 19.
