Meter Display
Provides for a more traditional, analog-style view of main power display. The
selected measurement type is displayed in the analog meter as well as the pre-
set limits for the currently selected measurement. The scale of the graph can be
set to auto or full-scale.
Sensor Readings
Numerical readout of selected measurement type and ancillary readings is dis-
played under the meter display.
Red indicates a questionable measurement. This means that the sensor has
determined that the measurement cannot be made or corrected reliably.

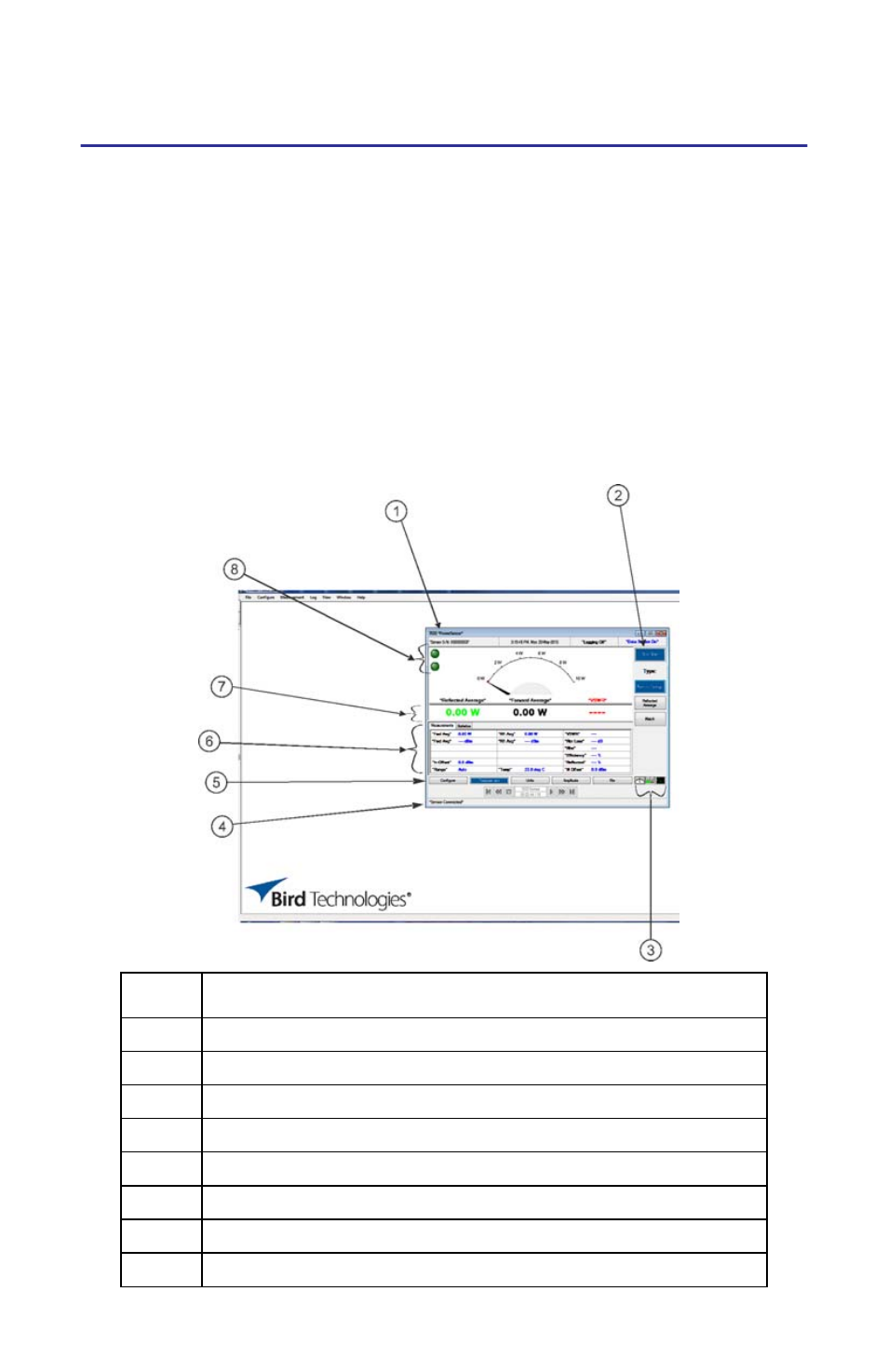

Figure 9 VPM Screen, Meter Display
Item Description
1 Model of connected power sensor
2 Softkey Labels
3 Display Type
4 Menu Label Keys
5 Sensor Status
6 Sensor Readings
7 Power Meter
8 Limit Indicators
