Chapter 3
Installation
This chapter provides information for on site requirements,
unpacking, inspection, and preparing the Model
8578A100GIG for use.
Mounting
Location
This unit is designed for use in any of the mounting configu-
rations called out in the outline drawing.
CAUTION
Do not block airflow. Air enters the housing through
perforated grilles at the side of the unit and exhausts
through the opposite grille of the unit. Blocking these
grilles could cause unit failure.
Placement For ease of movement, hold the two handles on each side of
the RF input connector, located at the front center of the
unit. Move the unit into position, and rest it on the four
bumper feet.
WARNING
Limit the interlock terminal to less than 30 Vrms.
Although the interlock terminal is rated to 230 Vac,
the potential for electrical shock exists.
CAUTION
Connect interlock before RF operation.
Interlock
Connections
There are three terminals on the interlock connection of the
load. One is a ground terminal, the other two a SPST switch
connection with a rating of 10 A @ 120 Vac and 5 A @ 250
Vac. Check the requirements of the transmitter interlock
and make the connections to the appropriate terminals as
required.
7
GND SPST SPST
1 2 3

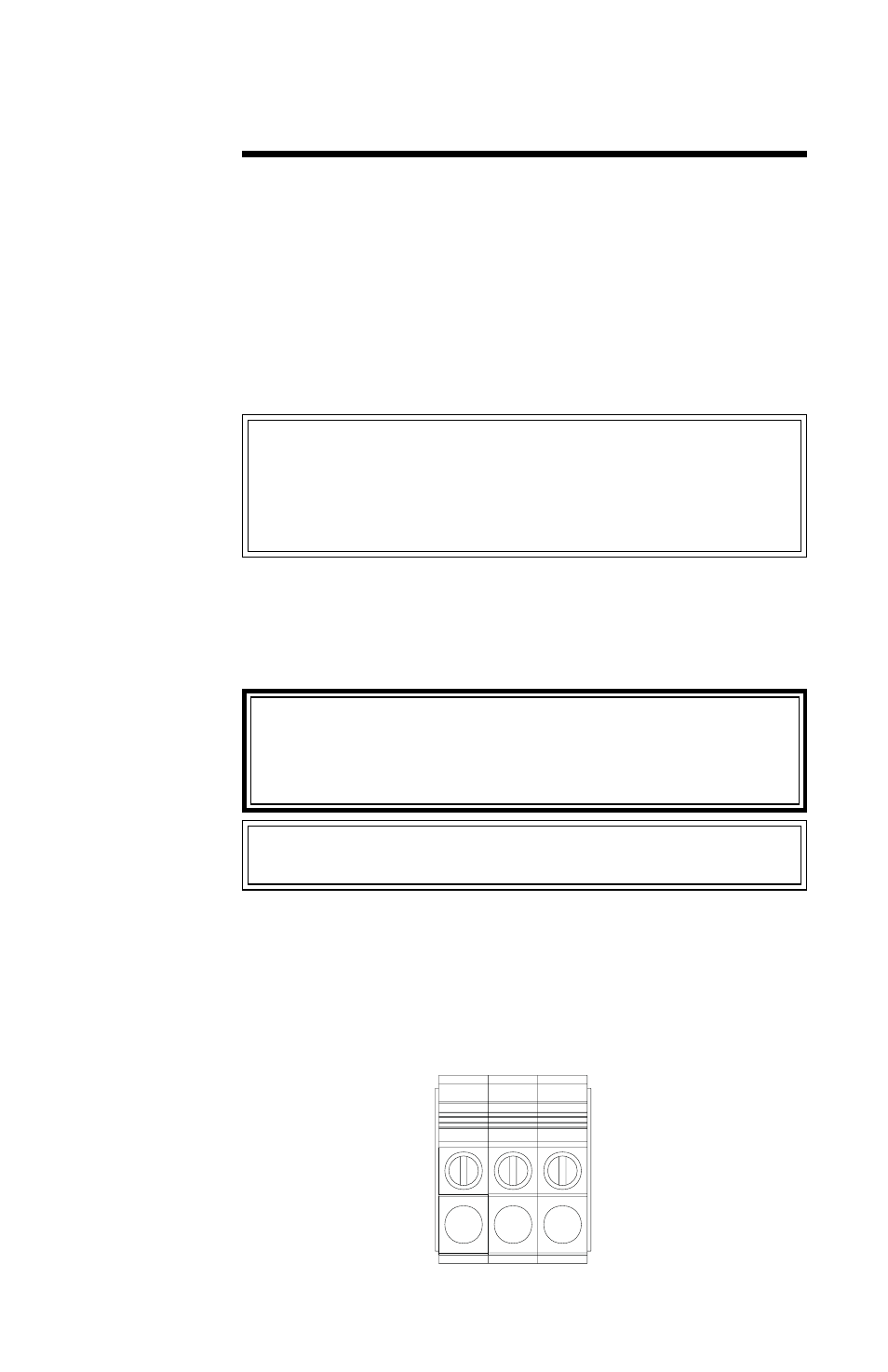

Figure 2
Interlock
Terminal
