Operating Instructions

Push-to-Talk

Setting Push-to-Talk

1. Open the Power Monitor Options dialog.

2. Do one of the following:

Check the Enable checkbox to turn the Push-to-Talk feature on.

Uncheck the Enable checkbox to turn the Push-to-Talk feature off.

3. Enter any value for the time up to 14 sec.

Note:

The time actually programmed on the ACM will be a

multiple of 156.25 ms. For this reason, the time displayed will be
slightly different from the time set. The actual delay from the
PTT signal is uncertain because the PTT signal is asynchronous
to the internal measurement samples. The uncertainty is +/-
156.25 ms.

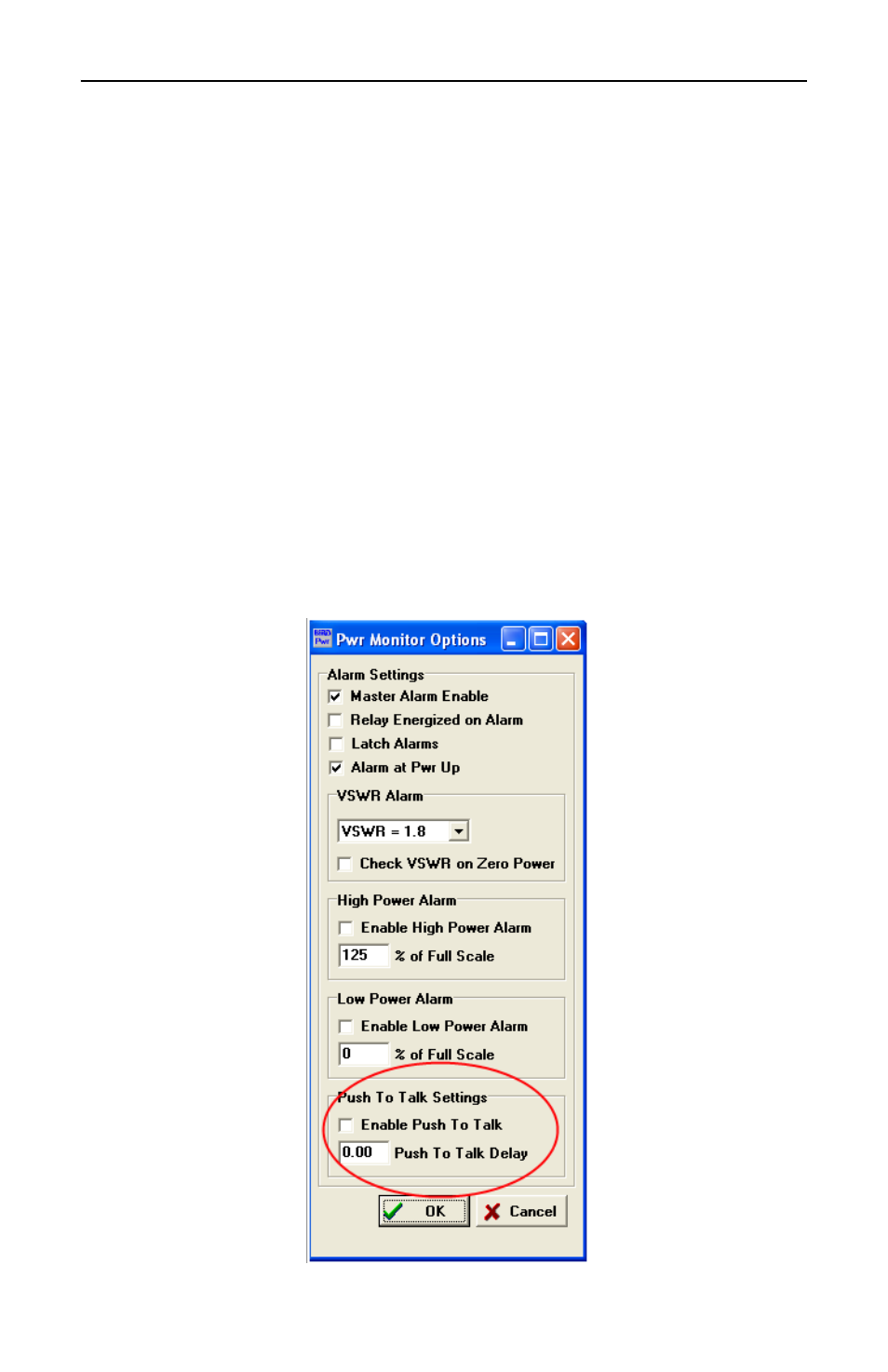

Figure 11 Push-to-Talk
