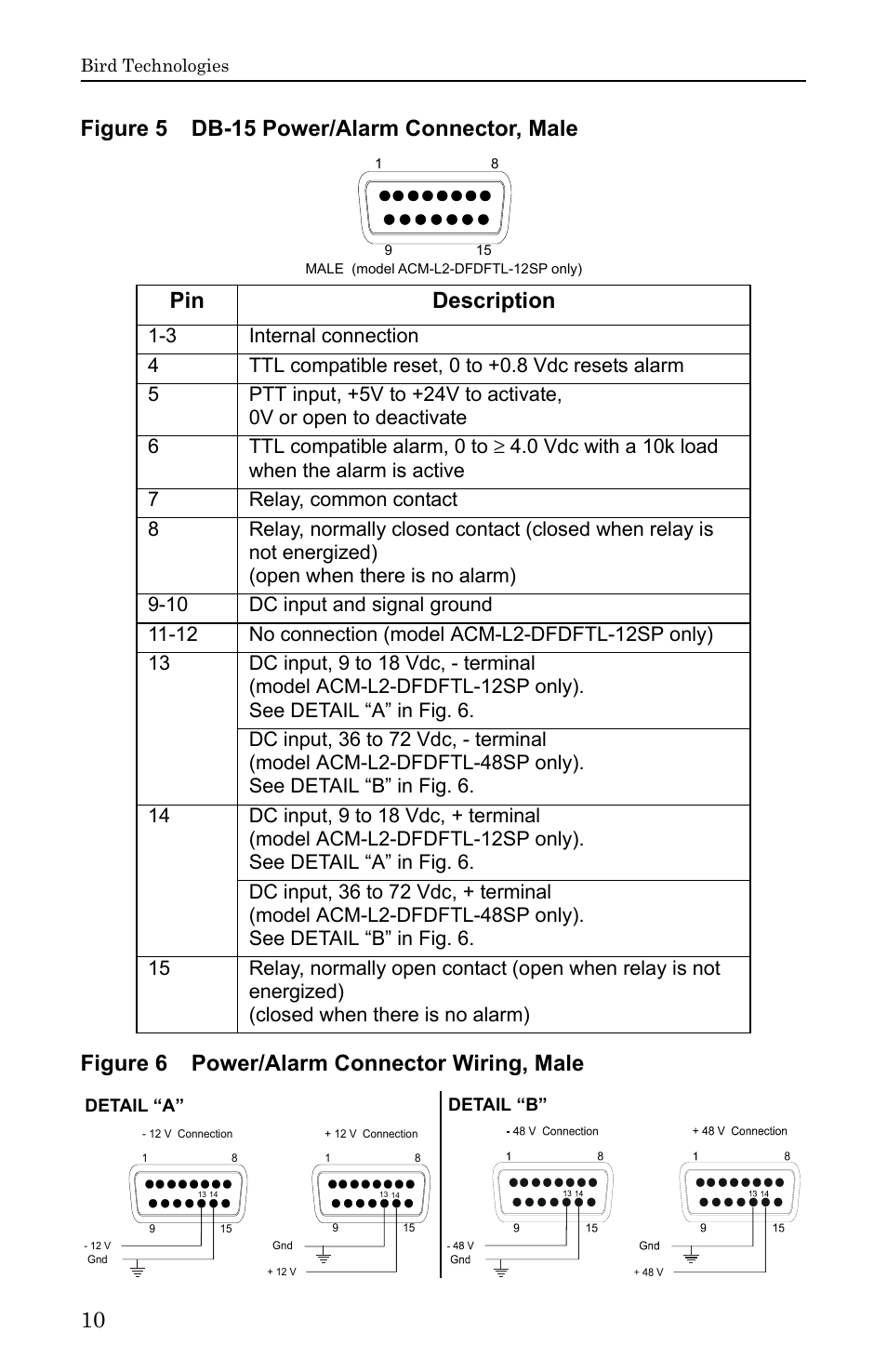

Figure 5 db-15 power/alarm connector, male, Figure 6 power/alarm connector wiring, male – Bird Technologies ACM Series-Manual User Manual
Page 22
