Text mode
Original mode

SSP-iPadUserManual.docx 2011-06-14

N E E D E Q U I V A L E N T P H O T O O F i P a d / T a b l e t P C A N D A D A P T O R

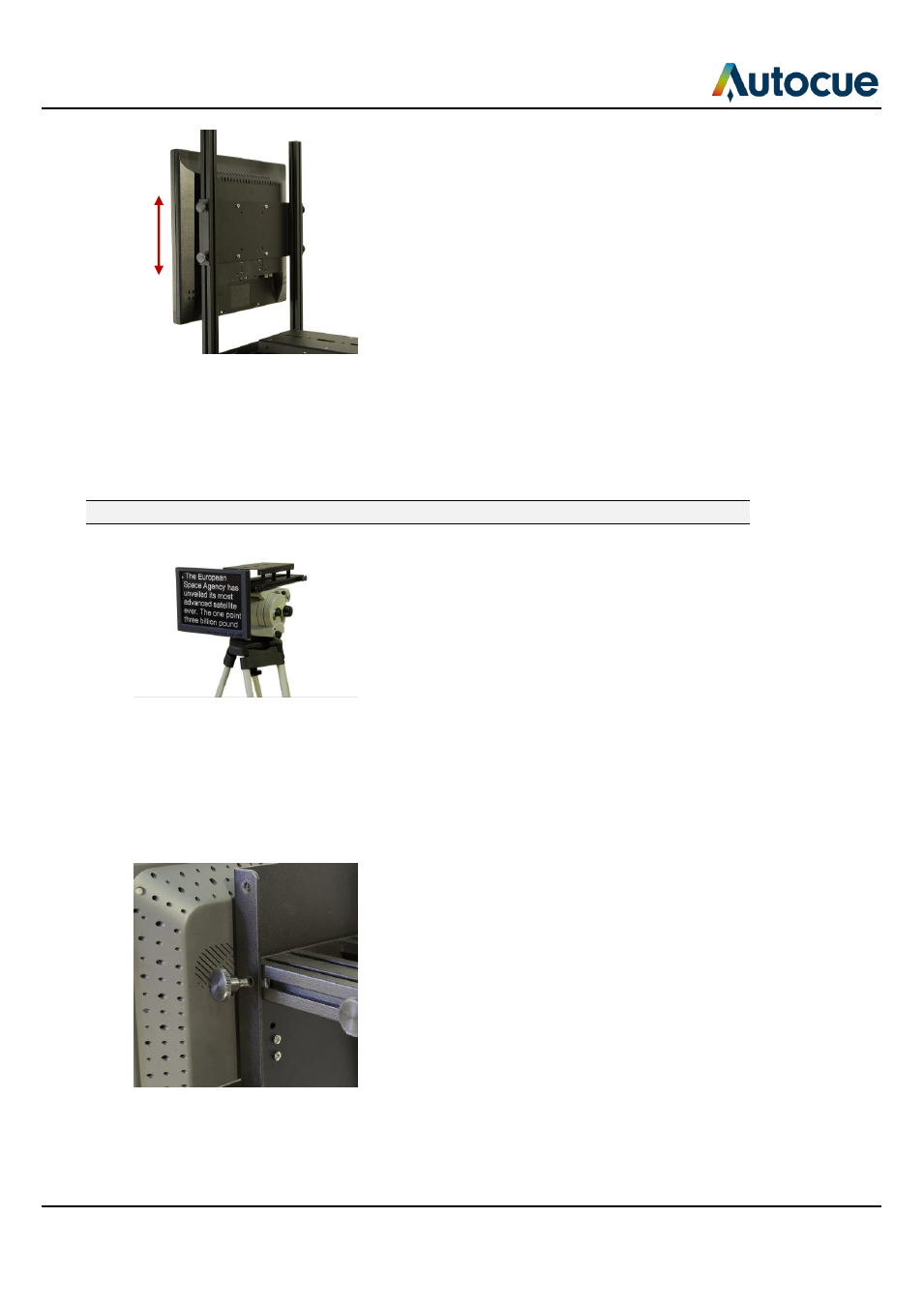

8. Fasten the monitor in position by tightening the thumb screws fully

Straight read (Monitor below the camera with no mirror)

The most common situation for using a straight read monitor is in conjunction with a light-ring for chromakey

filming.

Note: This is not a recommended configuration for the SSP17 monitor.

N E E D E Q U I V A L E N T P H O T O O F i P a d / T a b l e t P C A N D A D A P T O R

1. Mount the prompter unit to the tripod head.
2. Remove the hood and mirrored glass.
3. Remove the monitor.
4. Move a slide nut to the end of the frame and align these with the middle screw

holes on the monitor assembly

N E E D E Q U I V A L E N T P H O T O O F i P a d / T a b l e t P C A N D A D A P T O R

5. Secure the monitor in a vertical position across the end of the prompter
