FS1 Installation and Operation Manual — Remote FS1 Control Via a Web

Test Signals
Screen

This screen allows you to select the video and audio test signals produced by the internal
test signal generator.

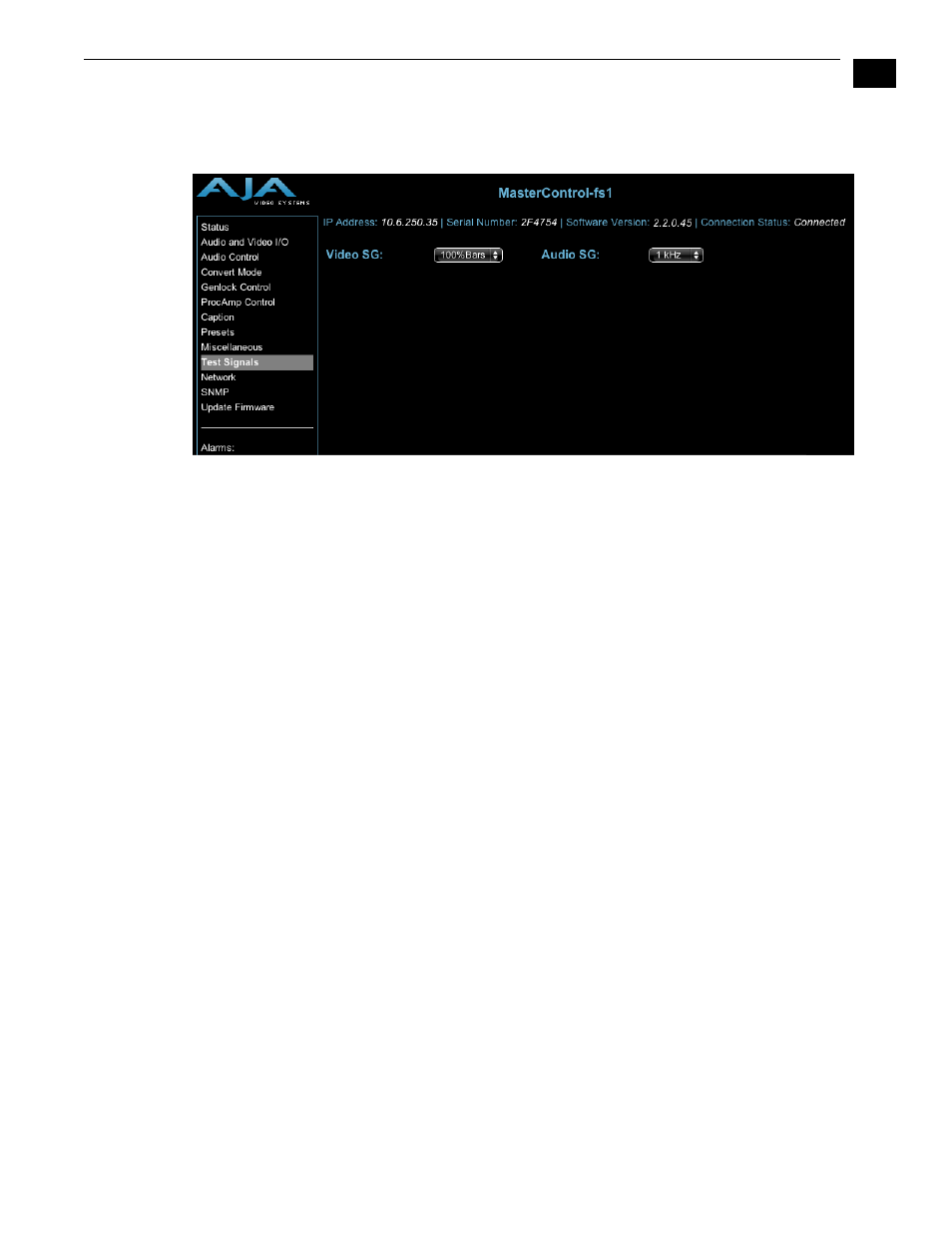

FS1 Web Interface, Test Signals Screen

Video SG (41.2): This parameter determines the video signal output from the FS1’s

internal test signal generator: OFF (default), Black, 75% Bars, or 100% Bars. This
parameter is used with the preceding parameter (41.1) to determine the type of video
test signal output by the FS1.

Audio SG (41.3): This parameter determines the audio signal output from the FS1’s

internal audio test signal generator: OFF (default), silence, or 1 kHz tone.
