Digital output boards, Trusted, Communication software package t8017 – Rockwell Automation T8017 Trusted Peer to Peer Communications User Manual
Page 23
Trusted
TM
Communication Software Package T8017
Issue 10 Mar 08
PD-T8017
23
2.2.4. Digital Output Boards

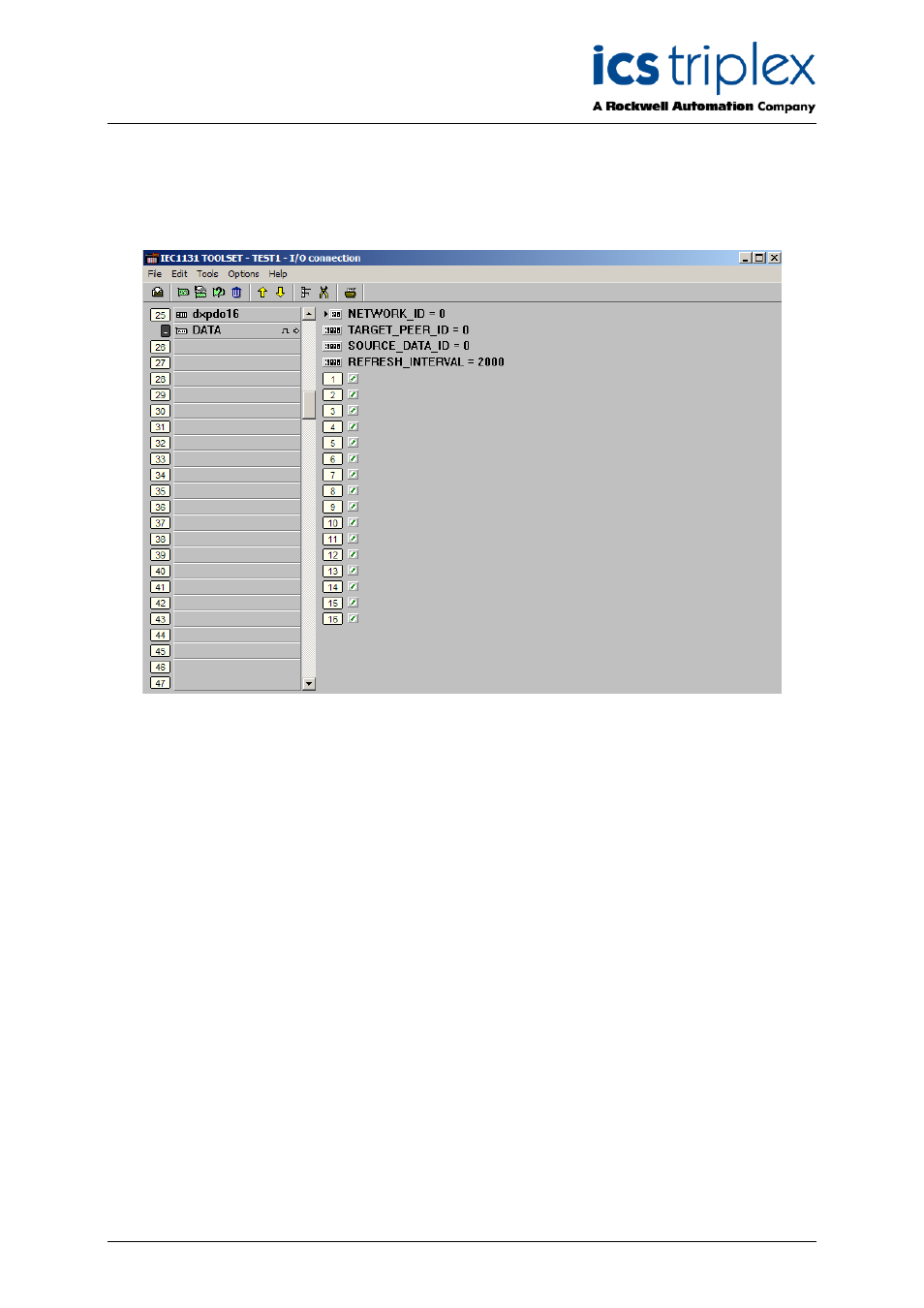

Figure 12 shows the display associated with an IEC1131 Toolset 16 channel digital output board
selected for outgoing data to a Trusted
TM
controller.
Figure 12 Peer to Peer Digital Output Board Display
The user must enter data as detailed below:
NETWORK_ID – The network that is carrying the data. Data will be received via all peer controllers
that share this network identity. Range 1 – 8.
TARGET_PEER_ID - The peer that is receiving the data, or the multicast ‘peer’. Range 1 – 40.
SOURCE_DATA_ID - Unique data block number to allow input boards to distinguish the data.
Range 1-64.
REFRESH_INTERVAL - The maximum number of milliseconds allowed between successive
transmissions of the output data. Note that data will be sent immediately following any change of
output state. If a value of zero is specified in this field then data will be refreshed every application
scan regardless of output state change. Range 0-10000.
Boolean variable outputs 1 to 16 – Boolean outputs.
The 128 output peer board supports 128 Boolean outputs instead of 16.
