Rockwell Automation Publication IASIMP-QS026A-EN-P - July 2012 27
Create DeviceNet Network Software Files Chapter 3
Set the 1769-SDN Scanner Module’s Node Address
To complete the steps described in this chapter, the scanner module uses the DeviceNet network
node address 1.
• If your scanner module’s node address is already set to 1, you can skip this section and move
to
Create a DeviceNet Configuration File on page 30 .
• If your scanner module’s node address is not set to 0, use this section to learn how to change
it from its current value. For example purposes, the scanner module’s node number is 3
before it is changed.

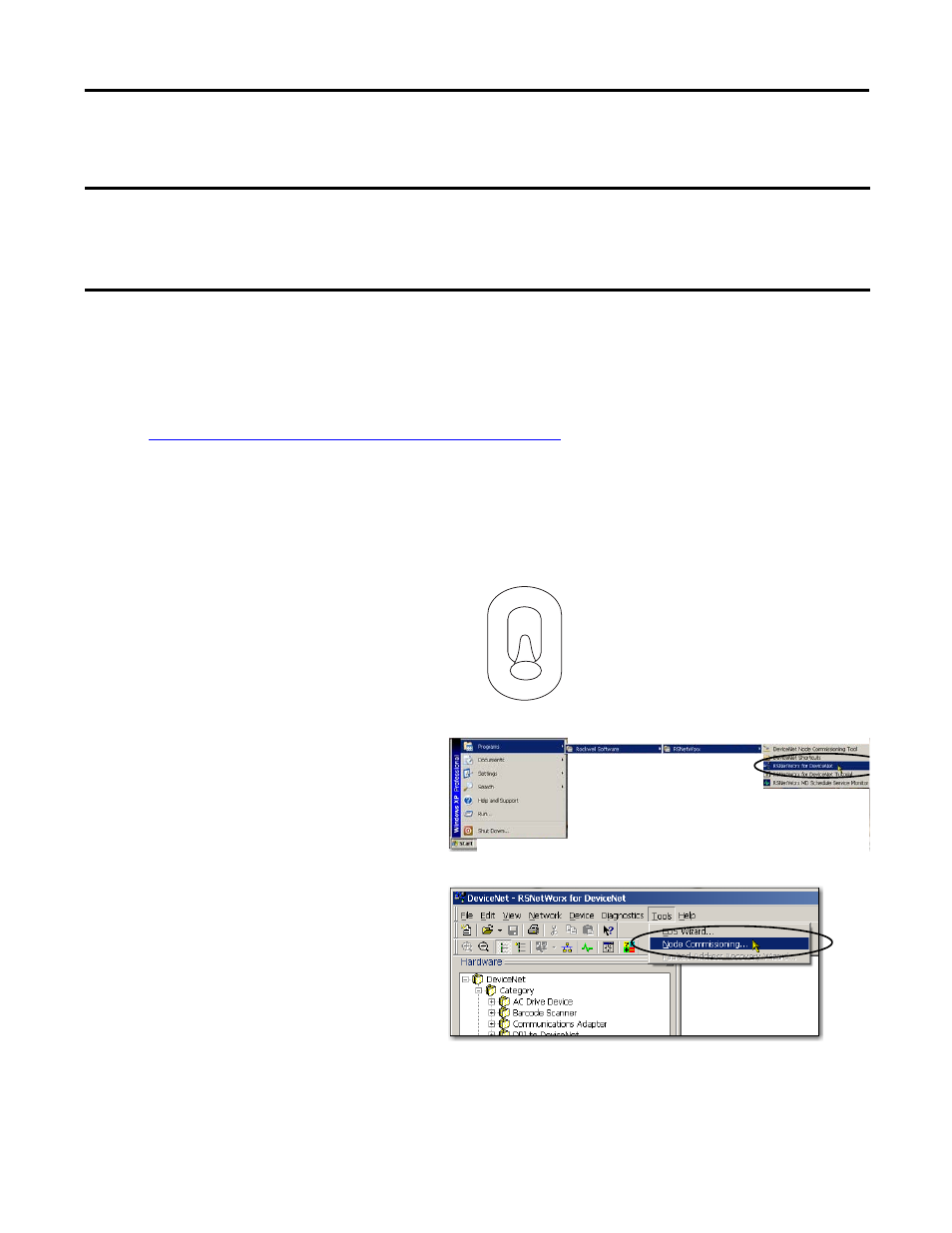

1. Verify the controller’s mode
switch is in the PROG position.
2. Start RSNetWorx for
DeviceNet software.
3. From the Tools pull-down menu,
choose Node Commissioning.
IMPORTANT
The tasks described in this section require the use of the Node Commissioning tool in RSNetWorx for DeviceNet
software. If you are using RSLogix 5000 software, version 20 or later, as required with this quick start, the Node
Commissioning tool was an optional choice during the software installation.
If you did not install the Node Commissioning tool previously, do so now.
RUN
REM
PROG
