Rockwell Automation Logix5000 Control Systems: Connect POINT I/O Modules over a DeviceNet Network Quick Start User Manual
Page 16
16
Rockwell Automation Publication IASIMP-QS026A-EN-P - July 2012
Chapter 1
Prepare the Distributed POINT I/O Hardware
4.

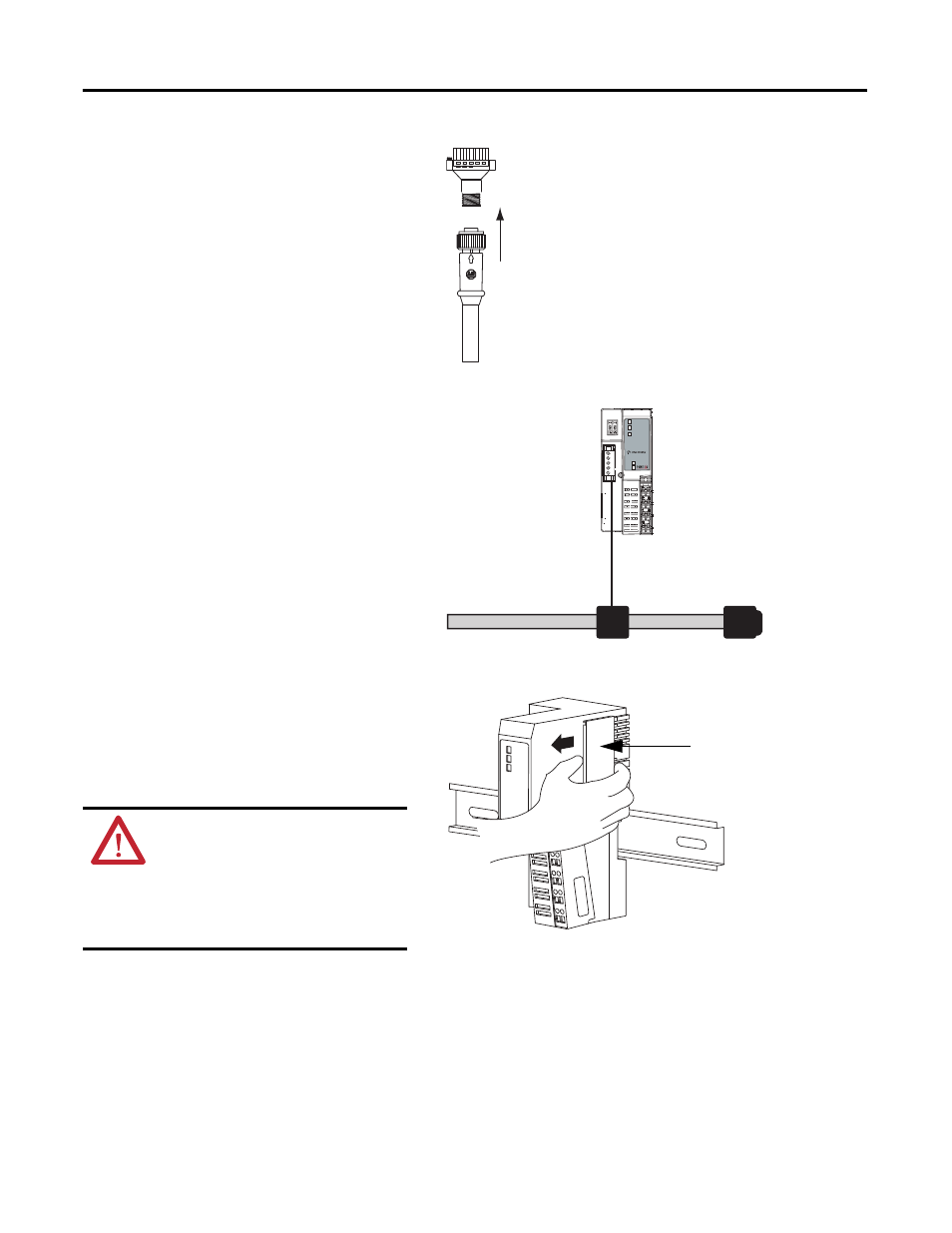

Connect the 1799-DNC5MMS 5-
pin linear to micro male adapter to
the female end of the 1485K-P1F5-
R5 KwikLink right-angle micro
male to micro female connector
cable.
5.
Connect the female end of the
DeviceNet cable to the adapter.
6.
Connect the other end of the
cordset to the DeviceNet network.
7.
Remove the safety end cap.
This exposes the backplane and
power interconnections.
ATTENTION: Do not discard the end
cap. Use this end cap to cover the
exposed interconnections on the last
mounting base on the DIN rail. Failure
to do so could result in equipment
damage or injury from electric shock.
Adapter
Status
System
Power
DeviceNet
Status
PointBus
Status
Field
Power
1734-ADN
Safety End Cap
