2. Startup
Connect the Engineering Workstation to the TMR Communications Interface using the Communication
Cable TC-304-01-Xm0. Double clicking the ‘SOE and Process Historian’ application icon at the
Engineering Workstation will initiate the screen display shown in Figure 2.

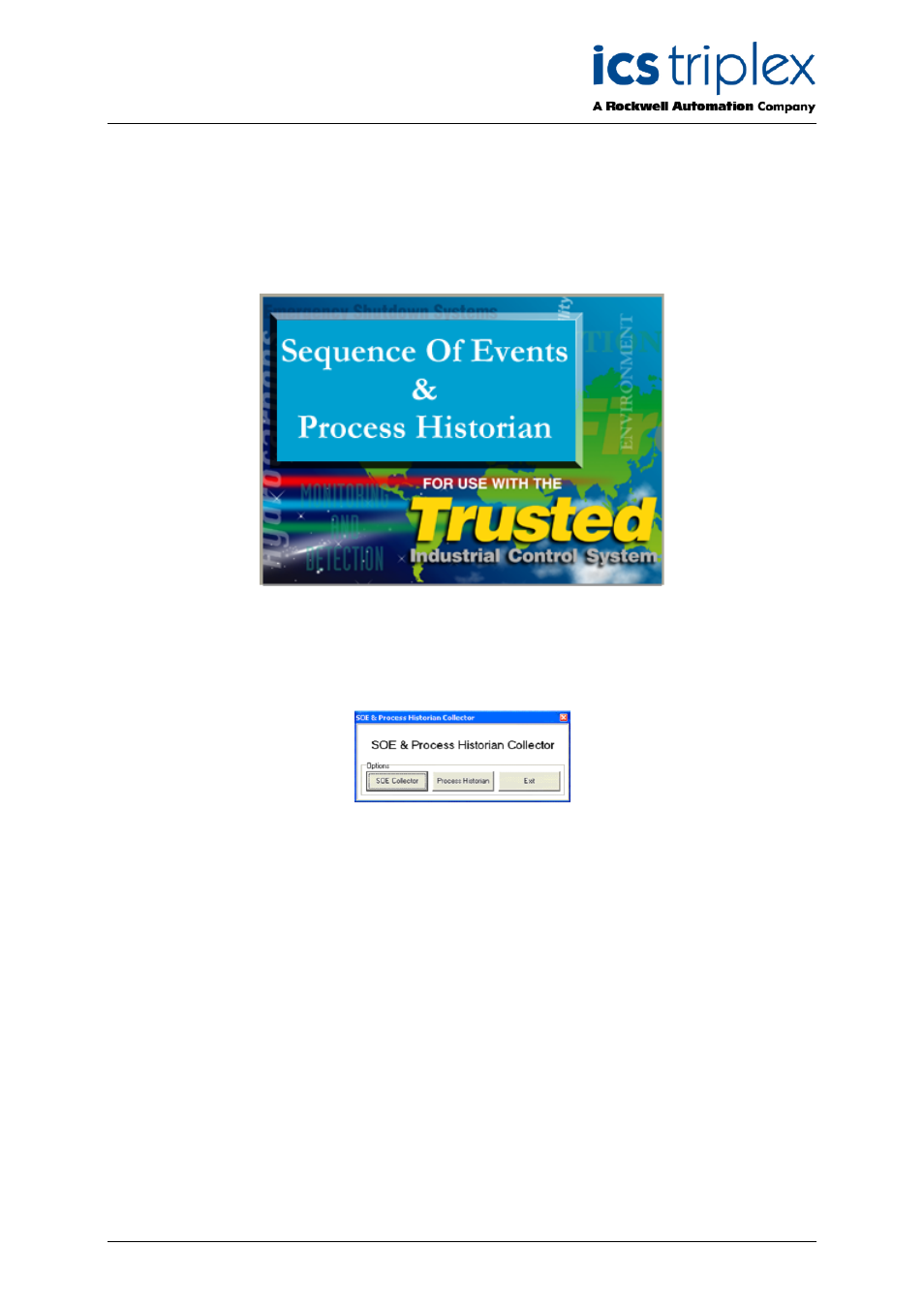

Figure 2 Initial Display
After a few seconds, the screen display shown above will be replaced with the SOE/PH ‘launcher’
window shown in Figure 3.
Figure 3 Launcher Window
Pressing the ‘SOE Collector’ button will initiate the display showing the SOE log. Similarly, pressing
the ‘Process Historian’ button will initiate the PH log. Pressing the ‘Exit’ button will simply terminate the
programs and shut down all SOE and PH displays.
An SOE or PH Collector window can only communicate with one controller. It is possible to initiate
more than one SOE or PH display on a PC. However, each display will only communicate with one
controller. A single instance of the SOE or PH program cannot collect data from multiple controllers.
