Rockwell Automation T8013 Trusted SOE and Process Historian Package - Manual (Page 14)

Trusted
TM
SOE and Process Historian Package T8013
Issue 16 April 2010 PD-T8013 14
3.8. Additional SOE Features
Additional features of SOE include the following:
1. Copy to Clipboard
2. Print
3. Save To File
3.8.1. Copy To Clipboard
It is possible to copy the contents of the current display to the Windows clipboard for pasting into other
applications. This is achieved by using the ‘Copy To Clipboard’ option from the ‘File’ menu. The text
copied may then be pasted into other Windows applications, e.g. Excel.
3.8.2. Print
The current display may be sent to a user selected printer using the ‘Print’ menu option from the ‘File’
menu.
3.8.3. Save To File
The current display may be saved as a text file using the ‘Save’ menu option from the ‘File’ menu.

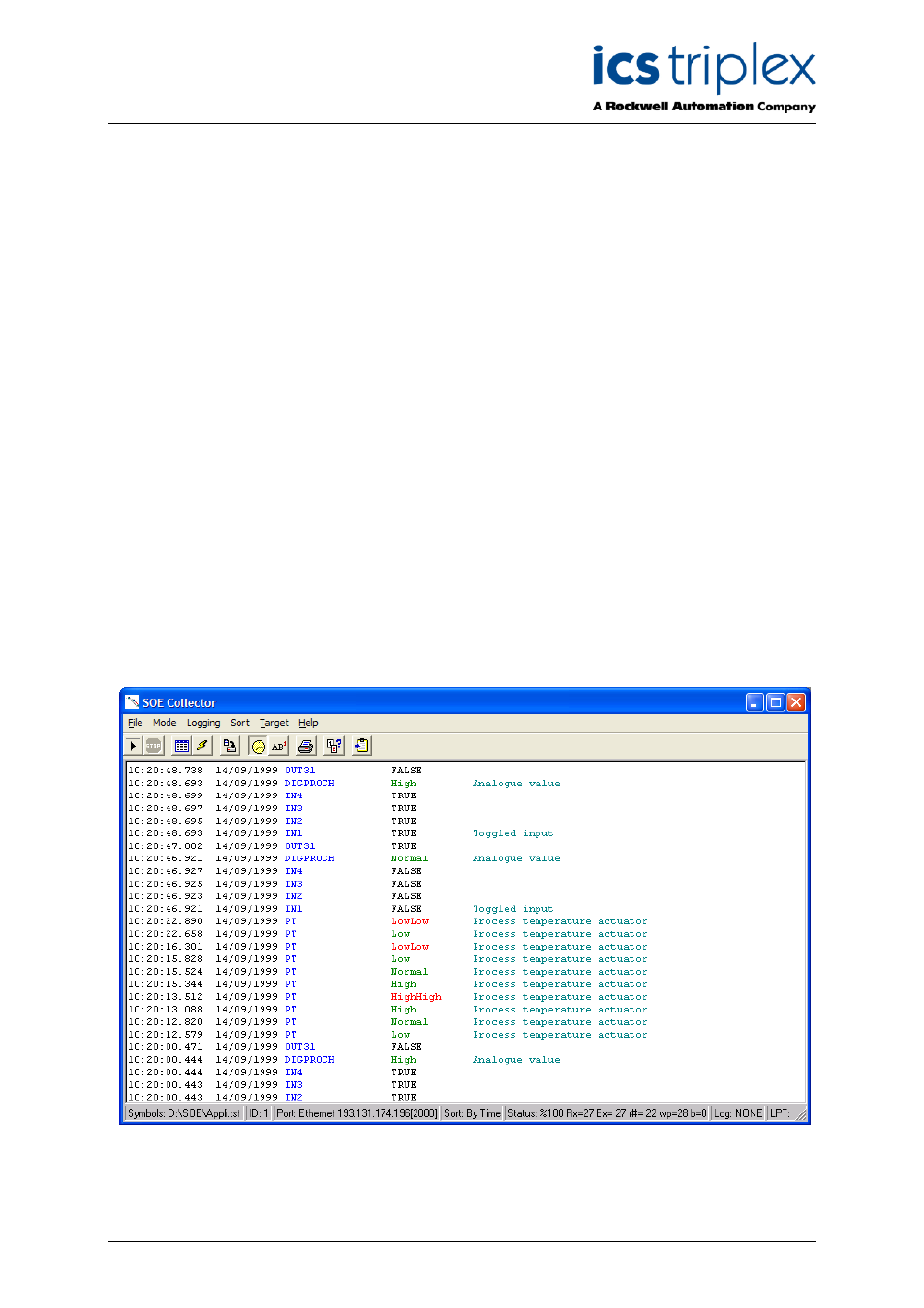

3.9. SOE Example Display
An example of an SOE display is shown in Figure 6 below.
Figure 6 SOE Display
