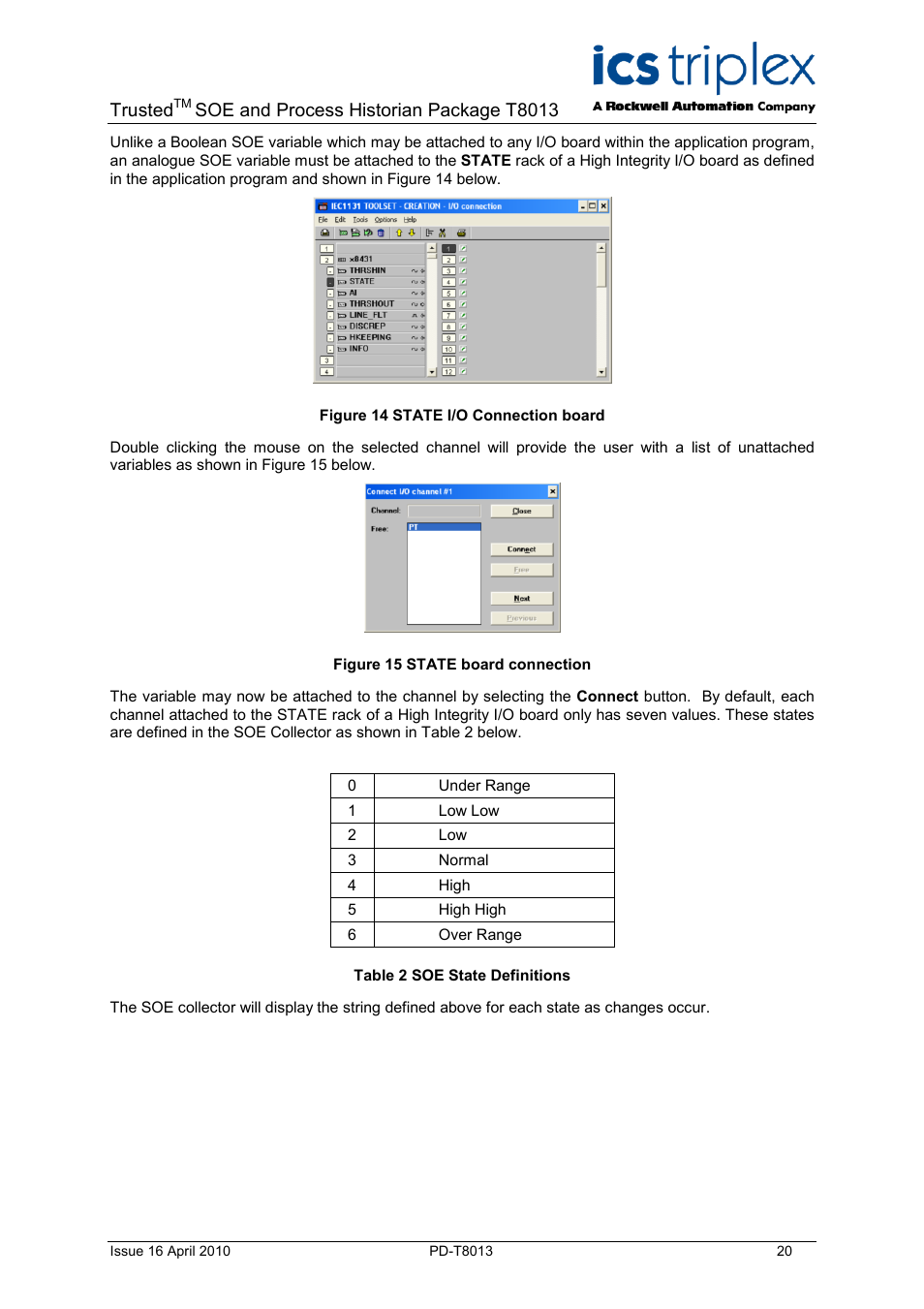

Figure 14 state i/o connection board, Figure 15 state board connection, Table 2 soe state definitions – Rockwell Automation T8013 Trusted SOE and Process Historian Package User Manual
Page 20: Trusted, Soe and process historian package t8013
