2 SD3000 PLUS DC Drive Regulator

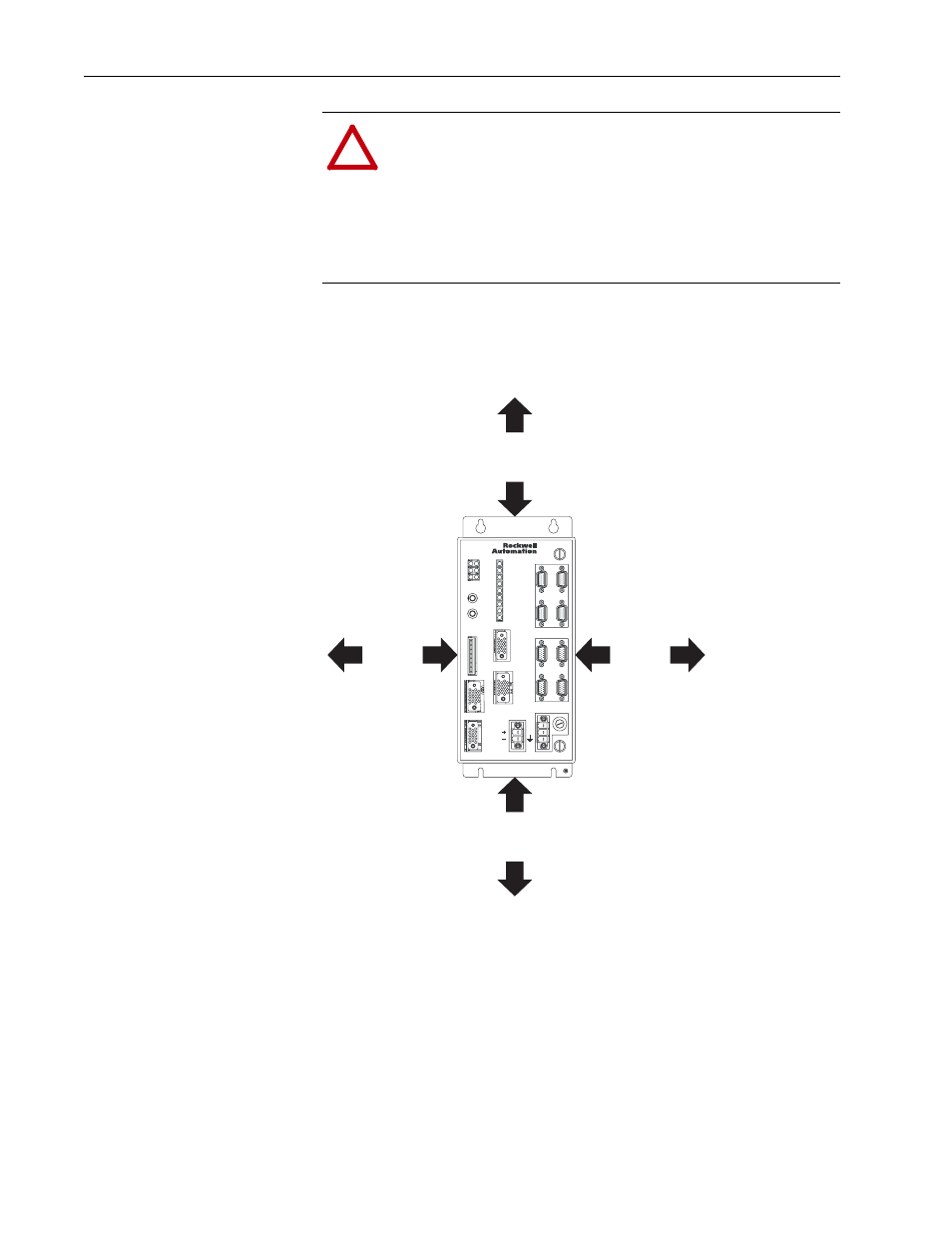

Minimum Mounting
Clearances Mount the SD3000 PLUS in a clean, dry location. Contamination from oils,
corrosive vapors and abrasive debris must be kept out of the enclosure.
• Do not mount heat-generating equipment underneath the unit
• Mount the unit in a vertical position only
Operating Temperatures The surrounding air temperature must be within 0
°C to 50 °C (32 °F to 122
°F).
!
ATTENTION: This drive regulator contains ESD (Electrostatic
Discharge) sensitive parts and assemblies. Static control
precautions are required when installing, testing, servicing or
repairing this assembly. Component damage may result if ESD
control procedures are not followed. If you are not familiar with
static control procedures, reference A-B publication 8000-4.5.2,
“Guarding Against Electrostatic Damage” or any other
applicable ESD protection handbook.
GP
COM OK
FDBK OK
LP
P.M. FLT
RPI
OK
EXT. FLT
XMT
RCV
L1
L2
MCR
AUX IN 1
AUX IN 2
AUX IN 3
AUX IN 4
AUX IN 5
AUX OUT
FWD - GATES
REV - GATES
120VAC
EXT GATE P/S
FUSE TYPE
250VAC
3AG 7A
RESOLVER
FEEDBACK
DRIVE
I/O
METER
PORTS
ARM
FDBK
FIELD
PLUS DRIVE CONTROL
Engineered by
SD3000
2.0 in.
(50.8 mm)
2.0 in.
(50.8 mm)
1.25 in.
(31.75 mm)
1.25 in.
(31.75 mm)
