Trusted™ Bridge Module 8161
Issue 2 Feb 10 PD-8161 15
< Trusted™ expander Interface slot> - - -
-
e.g. 1-2-2-3-1 in the above example, if the system consists of a 8161 chassis, an MRB04XM chassis
and an MRB04XS chassis.
Having added all the chassis in the system, the next step is to insert modules. For each module, right-
click on the appropriate chassis slot. Select the module from the list.

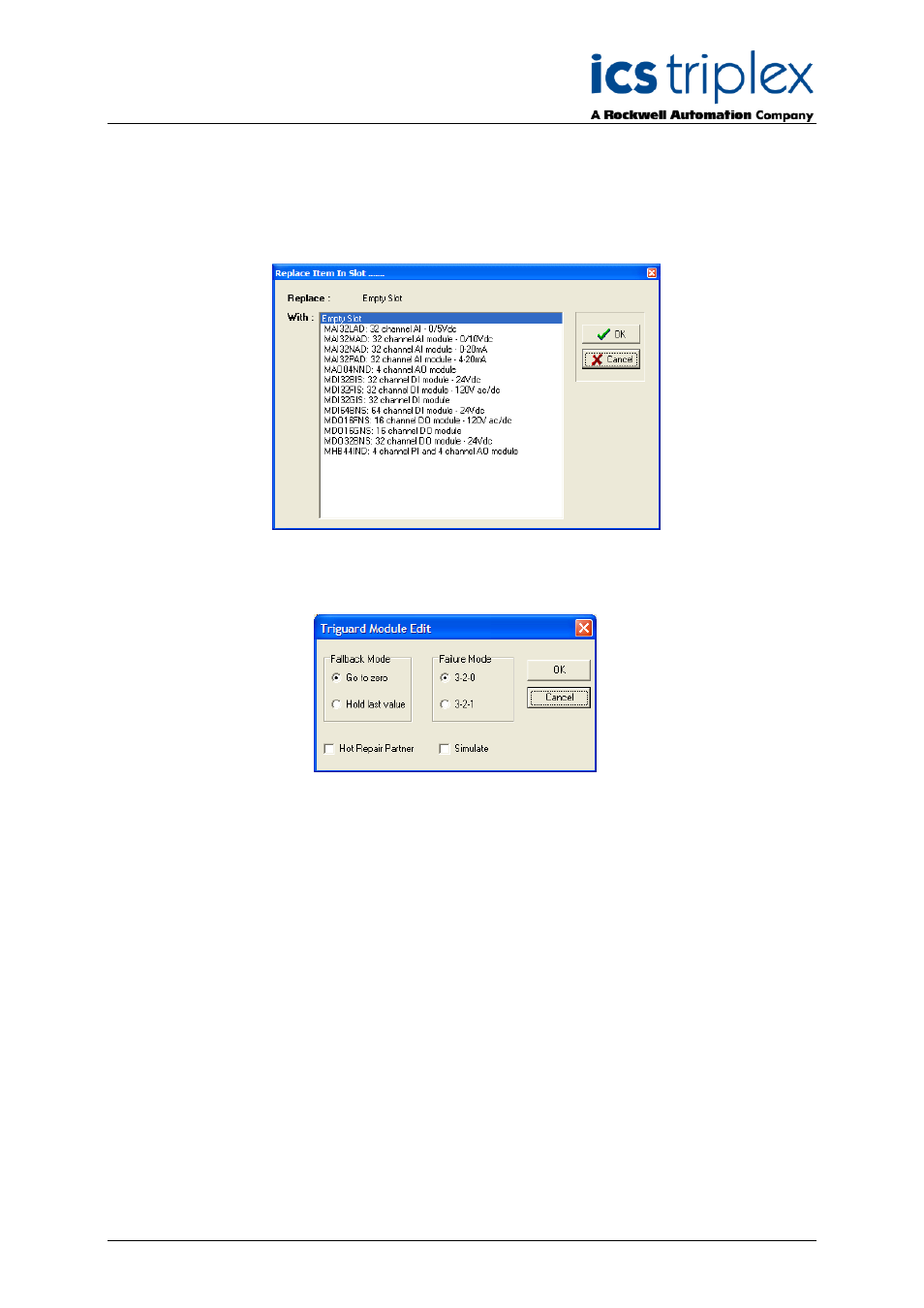

Figure 14 Triguard Modules
On left-clicking the new module, the module options are displayed.
Figure 15 Module Options
For output modules, select the output action on failure (Fallback Mode); either to set all outputs to
zero/de-energised or to remain at their last state.
For all modules, select the action on slice failure, either to shut down when only one slice is working (3-
2-0) or to continue running on one slice (3-2-1).
To enable hot-repair (on-line replacement), check ‘Hot Repair Partner’. This will enable replacement
with the module in the slot to the right of this module. There is no need to check the box in the right-
hand module.
To allow the system to run with a module absent, check ‘Simulate’.
Ensure that the options selected are as configured in the original application.
