Trusted™ Bridge Module 8161
Issue 2 Feb 10 PD-8161 13
The first chassis to be created is a 8161. This includes the bridge modules in place of the Triguard
processors. Choose type Triguard 8161 and select a logical chassis number. This chassis number will
define the switch configuration described in section 2.3.

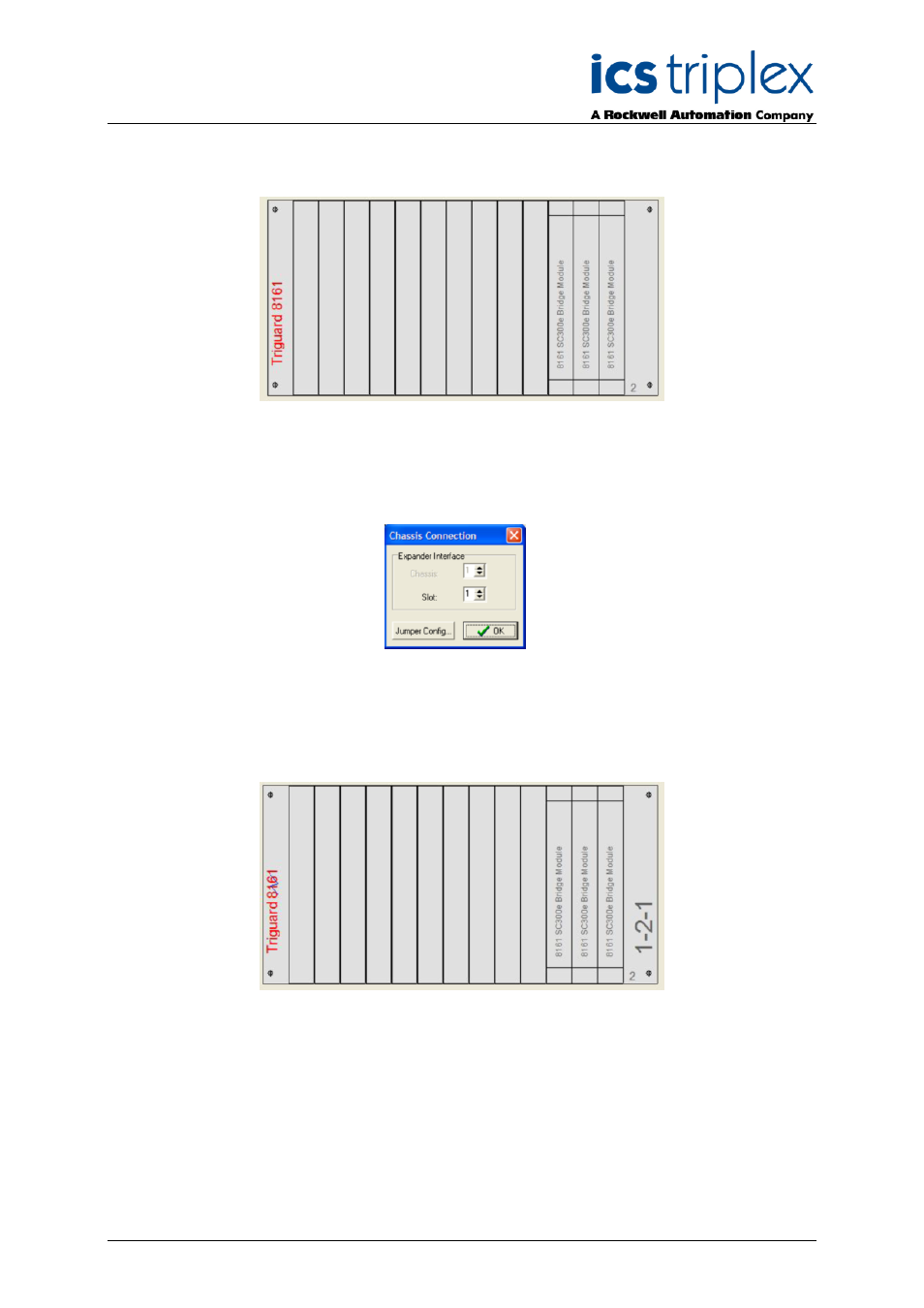

Figure 9 Triguard main chassis
The chassis should then be allocated to the Trusted™ Expander Interface module. Left-click on the left
or right end of the Triguard 8161 chassis to open the Chassis Connection dialog. Select the slot
number of the left-hand Expander Interface module.
Figure 10 Chassis Connection
On closing this dialog, the Triguard 8161 chassis should have a blue flash symbol on the left. The right
hand side shows the chassis address as:
< Trusted™ expander Interface slot> - -
Figure 11 Connected Chassis
Left-click on the left or right end of the 8161 chassis to open the Chassis Connection dialog again. The
‘Jumper Config’ button now demonstrates how to set the Triguard backplane jumpers.
