Joining Bus Bar Assemblies 3-9
Publication S-3062 – November 1997
Installing DC Bus Bar Adapter
Connections to an SA3000 or
SB3000 To join DC bus bar adapters to an SA3000 or SB3000:
1. Remove the supplied hardware from the bus bar. Refer to Figure 3.11.
2. Make the bus bar adapter connection between SA3000 and SB3000 and
the FD86N enclosure.
3. Reinstall the hardware, oriented as shown in Figure 3.11.
Important: Figure 3.11 shows connections to a parallel bus bar.
If you have a single bus bar, install the single bus bar
between the bars of the adapter.

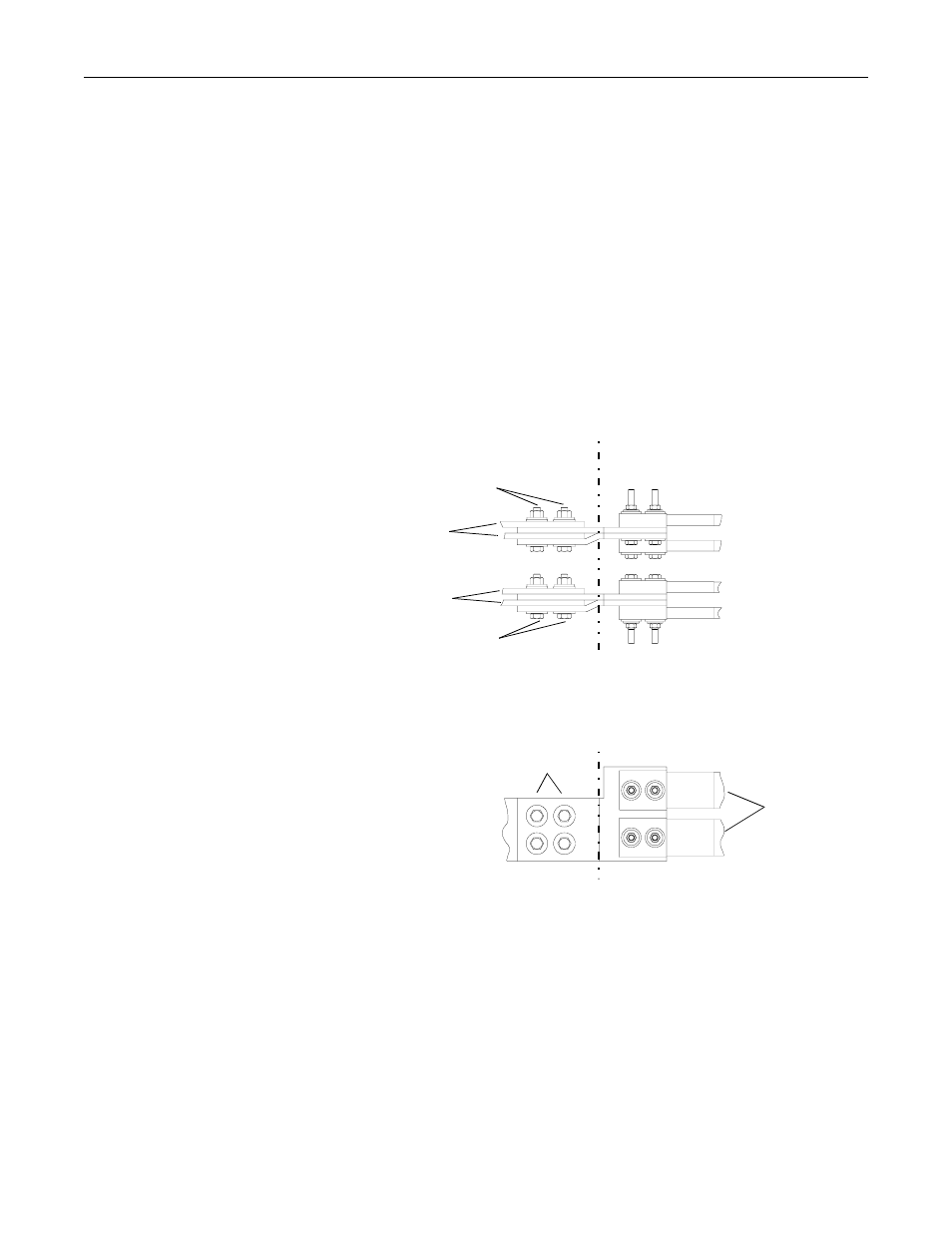

Figure 3.11
Installing the DC Bus Bar Adapter Connections between an SA3000 or SB3000 and
a DC Bus Bar Assembly on the FD86N Enclosure
Top Down View
Front View
Supplied Hardware
Supplied Hardware
Supplied
Hardware
SA3000 or SB3000 FD86N Enclosure
SA3000 or SB3000
Overhead Bus Bar (+)
SA3000 or SB3000
Overhead Bus Bar (–)
Straps from
MCC
