Rockwell Automation FD86N Drive Systems Enclosure Hardware User Manual
Page 25
Installing the FD86N Enclosure
2-11
Publication S-3062 – November 1997
Installing an Air Conditioning
Unit to the FD86N Enclosure
To install an air conditioning unit on the FD86N enclosure:
1. Cut the plug from the power cord. Strip the wires as needed.
2. Run the power cord through the feed-through hole in the end panel.
3. Mount the air conditioner using the 16 pieces of hardware supplied on
the FD86N enclosure. Refer to Figure 2.9.
4. Connect the air conditioning wiring to the terminal board provided in
the FD86N enclosure. See your wiring schematic for connections.

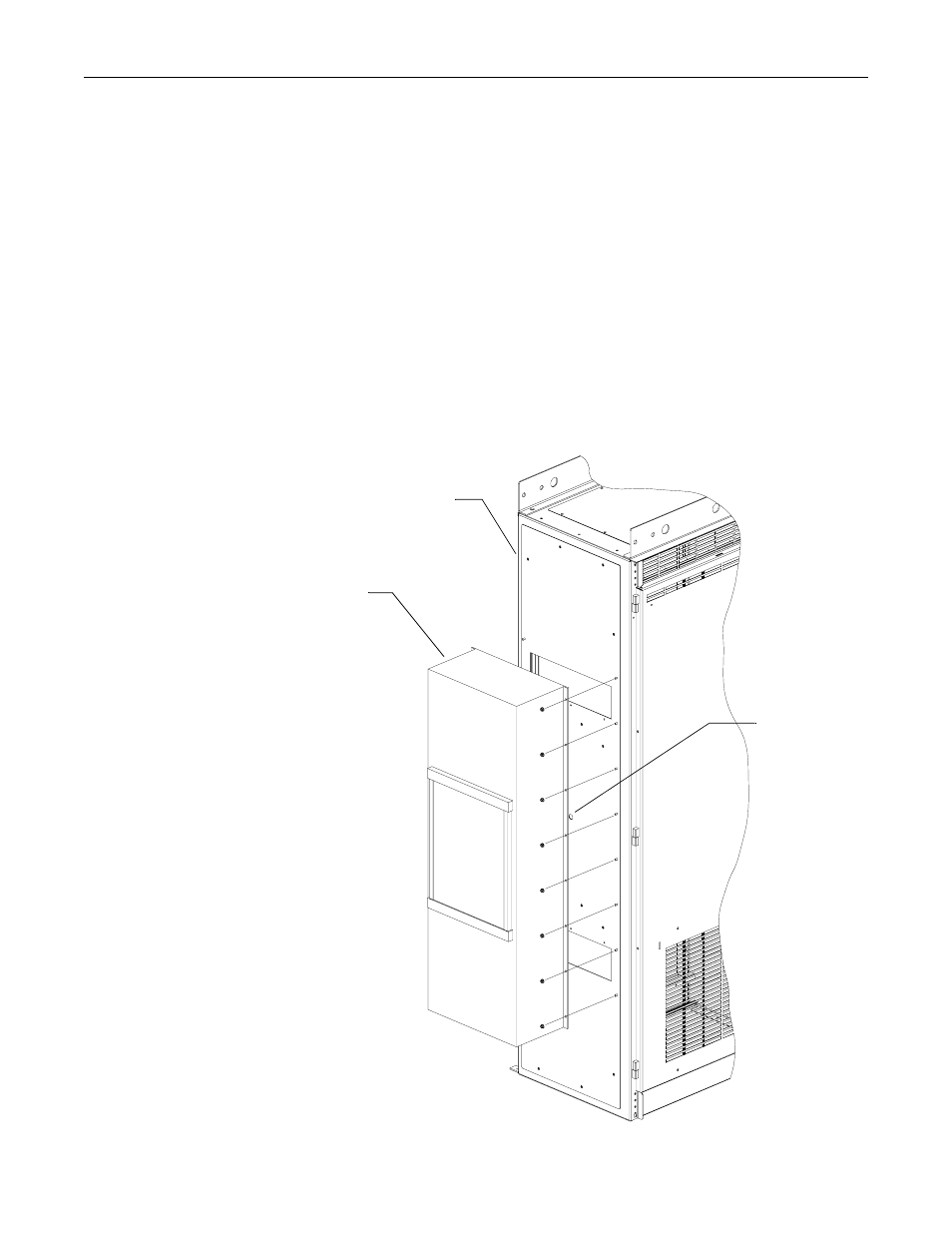

Figure 2.9
Installing an Air Conditioner to the Left or Right End of the
FD86N Enclosure
FD86N Enclosure
Air Conditioning
Unit
Power Cord
Feed-Through Hole
