For a po, Powerflex 700h connections, Asic board – Rockwell Automation 20D PowerFlex 700H/S Frame 14 Replacement Power Structures User Manual

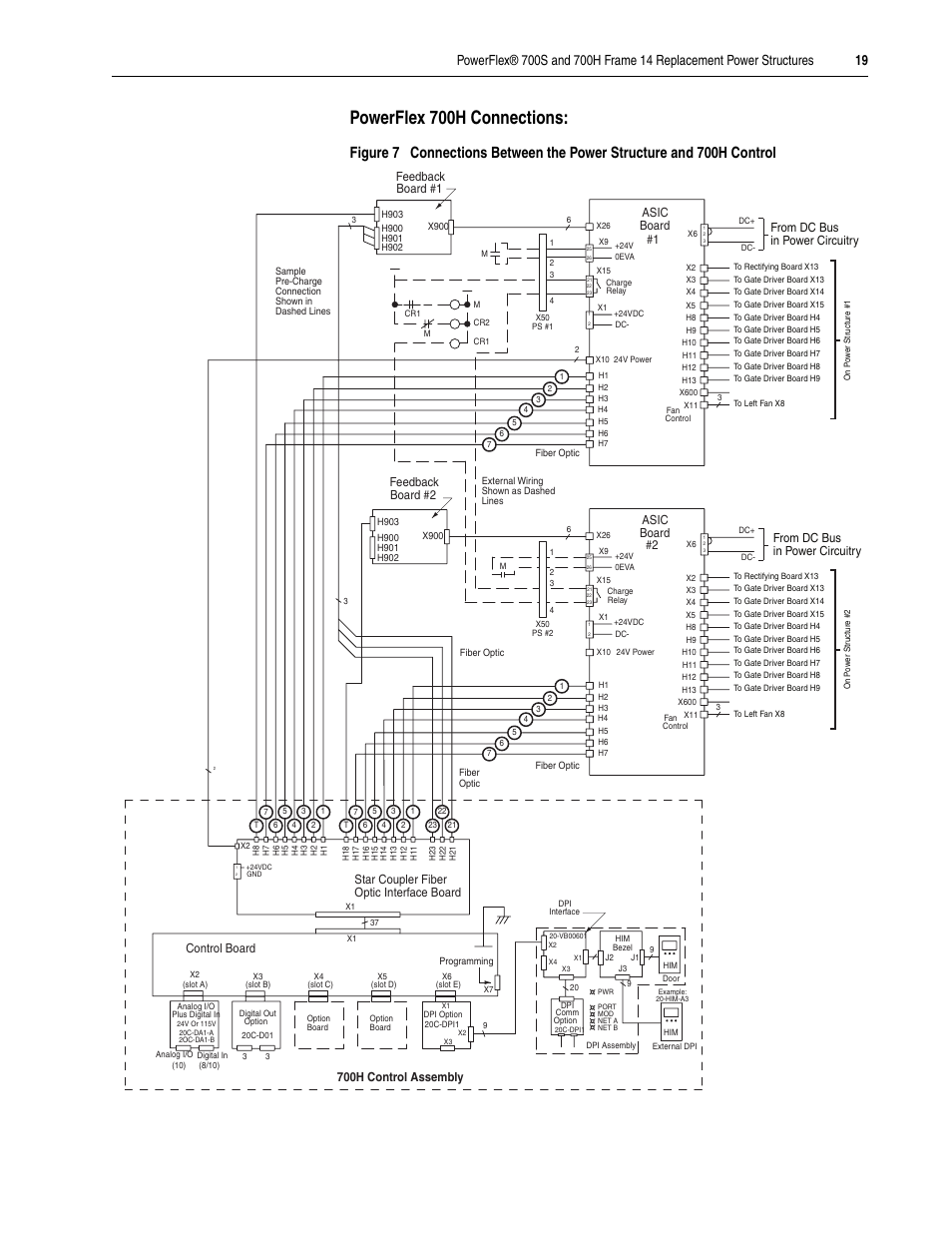

Page 19: Control board, Board #1 feedback, Feedback, Board #2, Star coupler fiber optic interface board, 700h control assembly
