Page 95: Appendix

95
Publication IASIMP-QS008A-EN-P - March 2009
95
Appendix
B
DataSite to FactoryTalk View SE Master
This appendix shows how to configure an industrial computer running FactoryTalk View SE
software to communicate with a DataSite unit using Modbus TCP/IP communication. This setup
requires KEPServerEnterprise software V4.0 to configure the communication driver.
This configuration is good for small applications that require data logging capabilities but don't
require a ControlLogix controller to poll multiple DataSite units. Refer to
on how to configure a PanelView Plus terminal running Factory Talk View ME software to
communicate with the DataSite using Modbus serial communication.
Before You Begin
•
Download KEPServer Enterprise software V4.0.
•

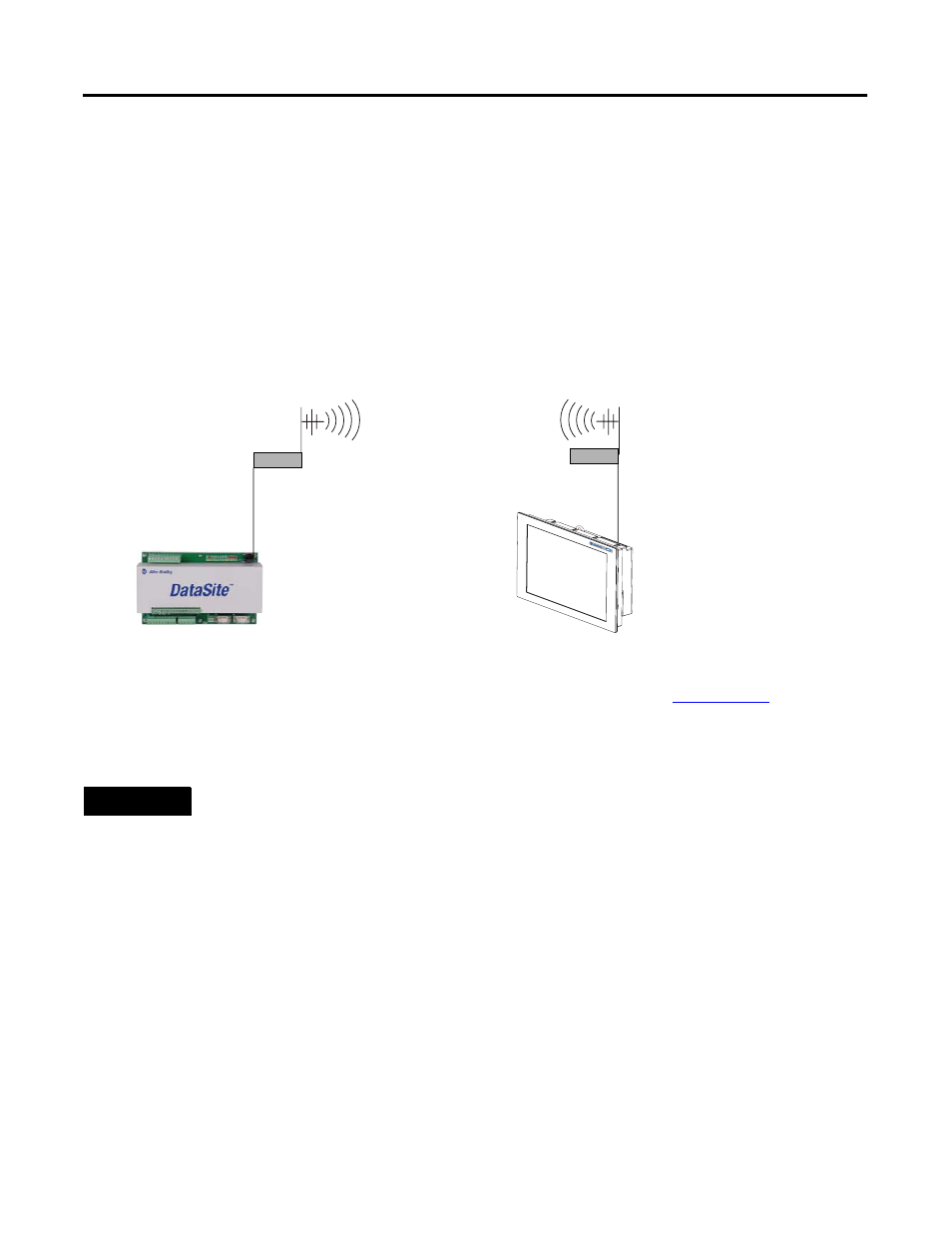

Connect the DataSite unit to an industrial computer running FactoryTalk View Site Edition
(SE) software.
•
Radios are optional.
6181P Industrial Computer Running
FactoryTalk View SE
Radio
Et
he
rn
et
Remote Location
Radio
Et
he
rn
et
Host Location
2711
P-
C
B
L-
EX
04
Cr
oss
over
Cable
2711P-
CBL-
EX04
Cr
os
so
ve
r Ca
bl
e
TIP
Radios are optional. If your application does not require radios, simply replace the radios
with an Ethernet crossover cable connecting the DataSite to the industrial computer.
