System Validation Chapter 6
The configuration and validation of the Data Site unit to ControlLogix Master is now complete.

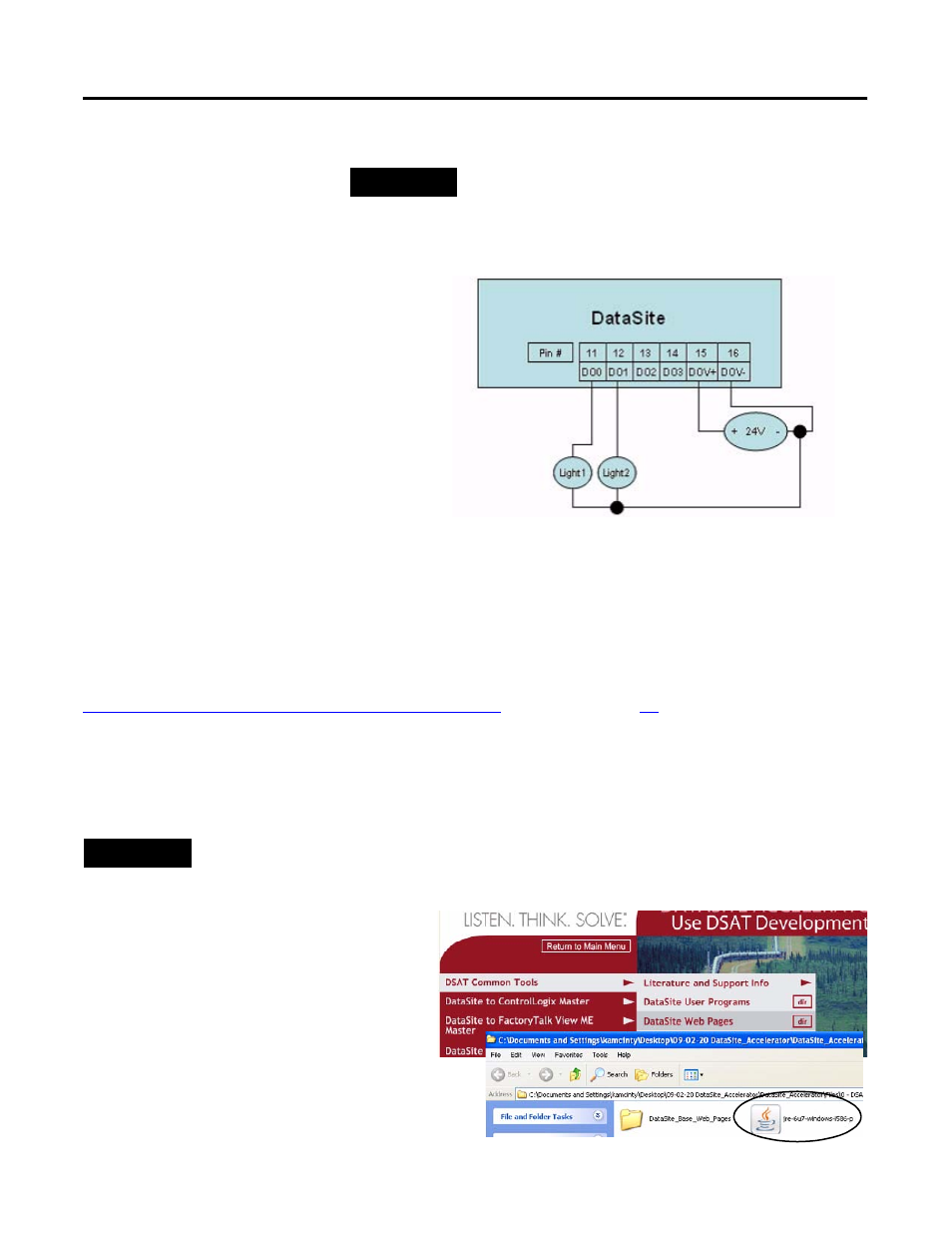

Validate DataSite Web Pages
You will now validate the web pages of the DataSite unit using the simulated values from the
Validate DataSite to PanelView Plus Communication
. To view the web pages,
you must have the latest Java runtime environment loaded on your computer. The DataSite
Accelerator Toolkit CD contains a copy of the required Java runtime environment.
Follow these steps to perform validation of the web pages.
1. From the toolkit CD, choose DSAT
Common Tools>DataSite Web Pages,
then double-click the executable,
jre-6u7-windows-i586-p.exe, to load
the Java Runtime Environment,
Version 6 Update 7.
TIP
To verify this functionality, you must wire a testing device such
as a stack light into digital output 0 and another device into
digital output 1. You must also supply the required voltage to
terminals DOV+ and DOV-.
TIP
You can skip step 1 if Version 6 Update 7 of the Java Runtime Environment is installed on your computer.
