6 XM ControlNet Adapter
Publication ICM-IN001A-EN-P - March 2009
Before You Begin
The XM ControlNet adapter is a communication adapter for XM modules.
The adapter provides an interface for controlling XM modules on an XM Bus
and transferring data to the processor over a ControlNet network.

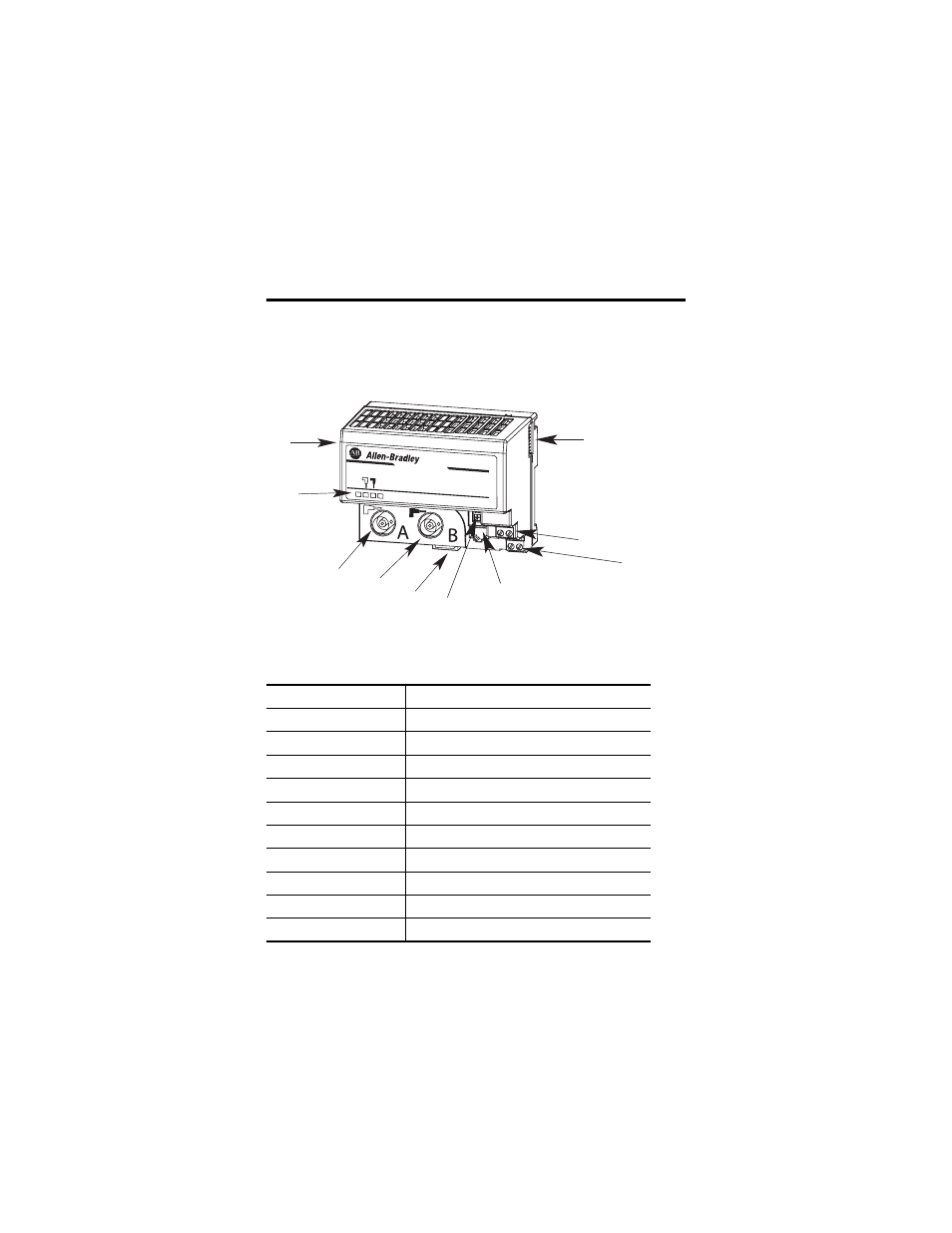

Component Description
1 ControlNet Adapter module
2 Indicators
3A ControlNet network cable BNC connector A
3B ControlNet network cable BNC connector B
4 Module locking tab
5 ControlNet node selection pushwheel switches
6 ControlNet programming terminal connector port
7 24V DC connection
8 24V common connection
9 XM Bus connector
31770-M
1
2
3A
3B
6
4
5
8
9
7
Cont rolNet XM A dapter 1440-ACNR
XM ®
MS CHA CHB BPS
