Industrial Integrated Display Computers 15
Rockwell Automation Publication 6181P-IN010F-EN-P - July 2013
Mount the Non-display Computer on a Wall
Four mounting screws secure the non-display computers to a wall. Follow these steps to mount a
non-display computer.
1. Verify the power is
disconnected.
2. Mount the
computer to a wall
by using four M5
pan head screws
and tighten to a
torque that is
appropriate for the
screw and wall
material.

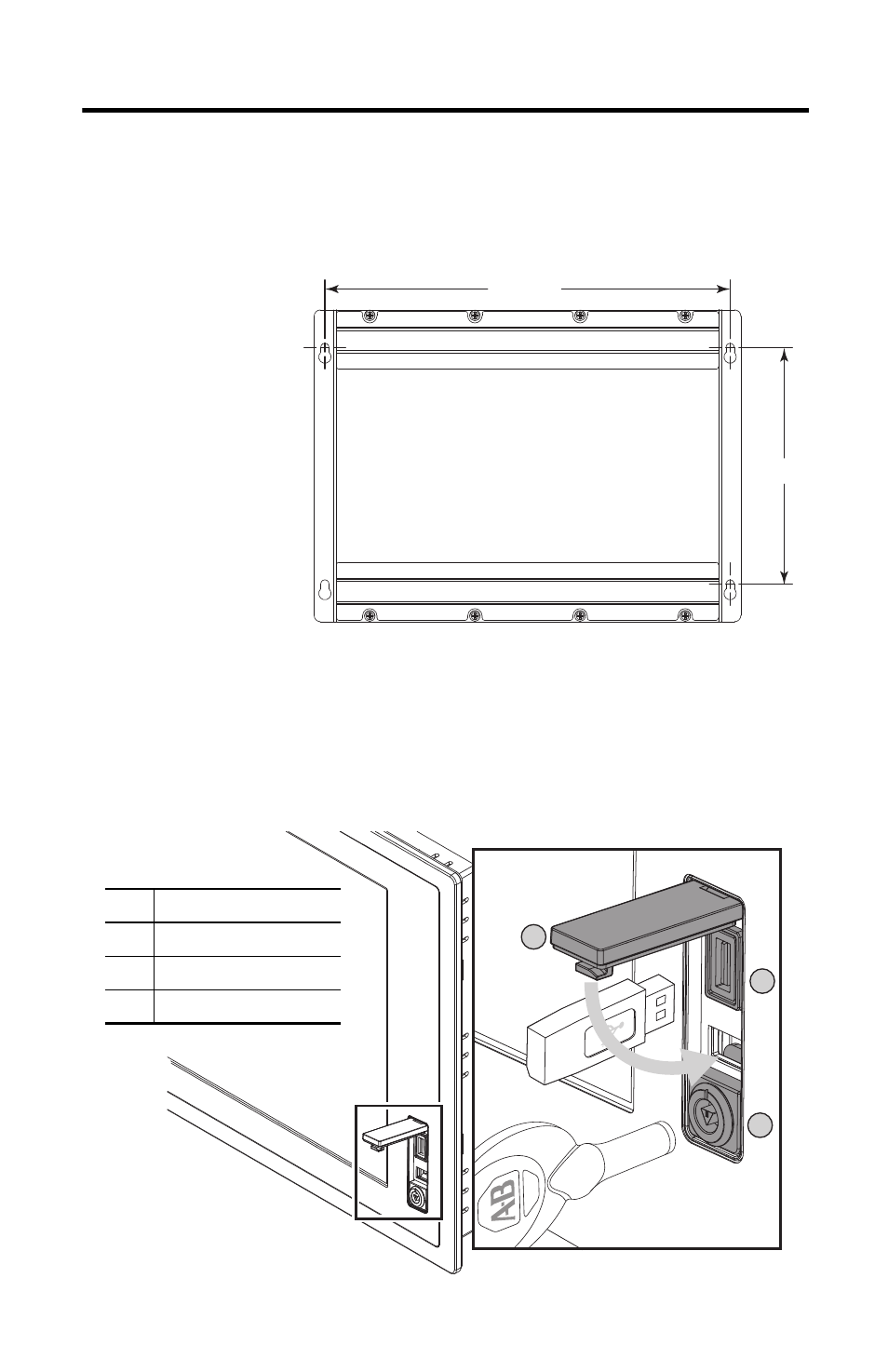

The illustration shows
hole locations with the
dimensions in mm (in.).
Connect Peripherals
Connect the required necessary peripherals such as keyboard and mouse.
Display computers with aluminum bezels have a front USB port for USB peripherals. This port
is enabled or disabled through settings in the BIOS set-up menu.
335 (13.20)
190 (7.50)
Item Description
1 Front USB port access door
2 Front USB port, Type A
3 Access door lock
1
2
3
