Parts list, Required hardware – Rockwell Automation 1799-OQ10X Embedded I/O Expansion Board with 10 Outputs User Manual
Page 5
Embedded I/O Expansion Board with 10 Outputs 5
Publication
1799-IN013B-EN-P - May 2013

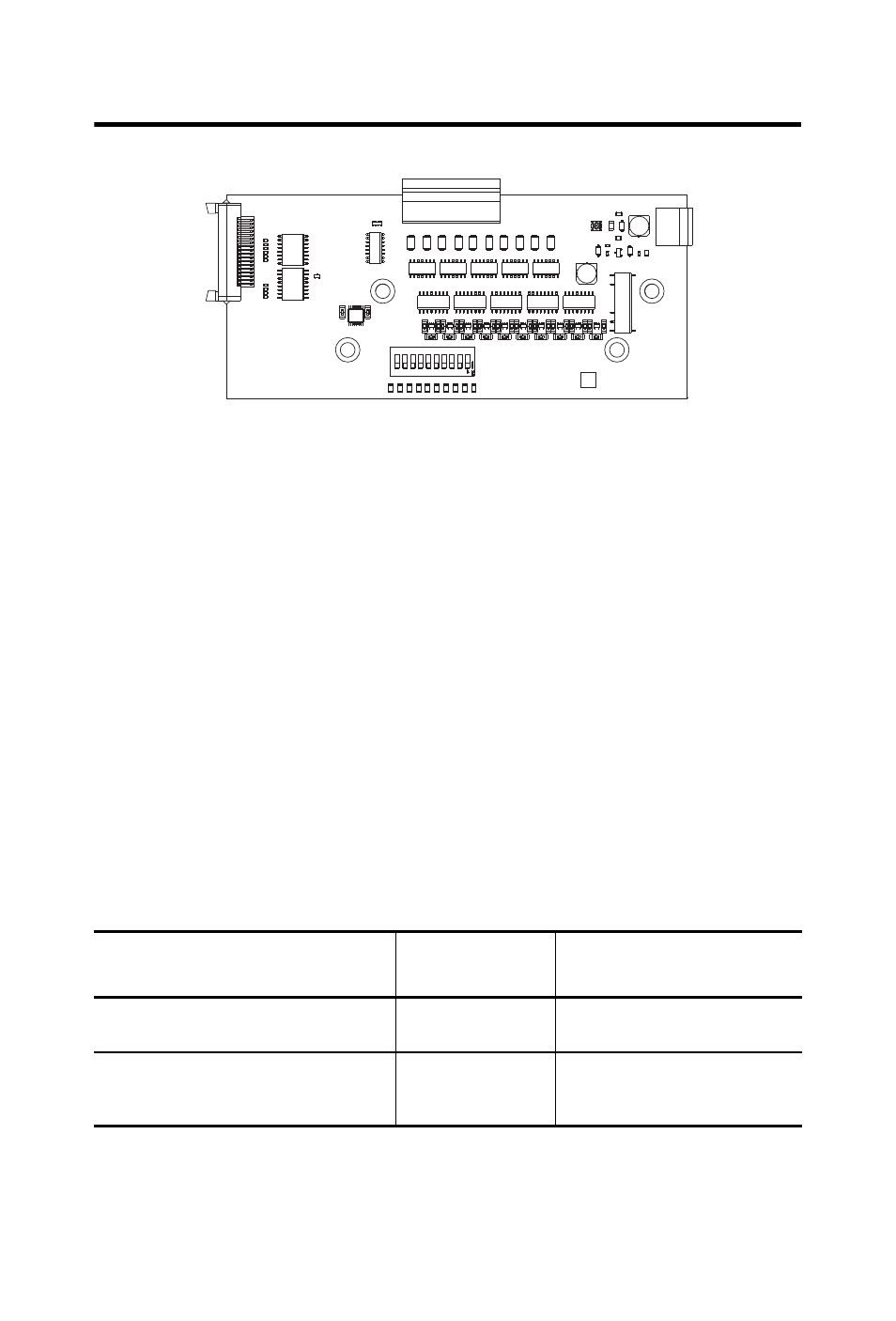

Parts List
Your package contains:
•
one 1799-OQ10X board.
•
ribbon expansion cable
•
four stand-off rods
•
four countersunk screws
•
four roundhead screws
•
these installation instructions.
Required Hardware
All mating connectors must be ordered separately. This table identifies the
different connector and hardware options.
Option
Catalog Number
Third-party Supplier &
Part Number
2, 12-position, gold-plated I/O mating
connectors
1799-12SPCON
Phoenix - FK-MC 0.5/12-ST-2.5AU
- 1923432
2-position plug for auxiliary power
1799-AUXCON
Phoenix Contact, Part number
MSTB2.5/2-ST-5.08 BK/AU -
1765551)
45076
