Rockwell Automation 2711P ControlNet Communications for PanelView Plus and PanelView Plus CE User Manual
Page 33
Publication 2711P-UM003B-EN-P - March 2007
Configure Scheduled Communications 33

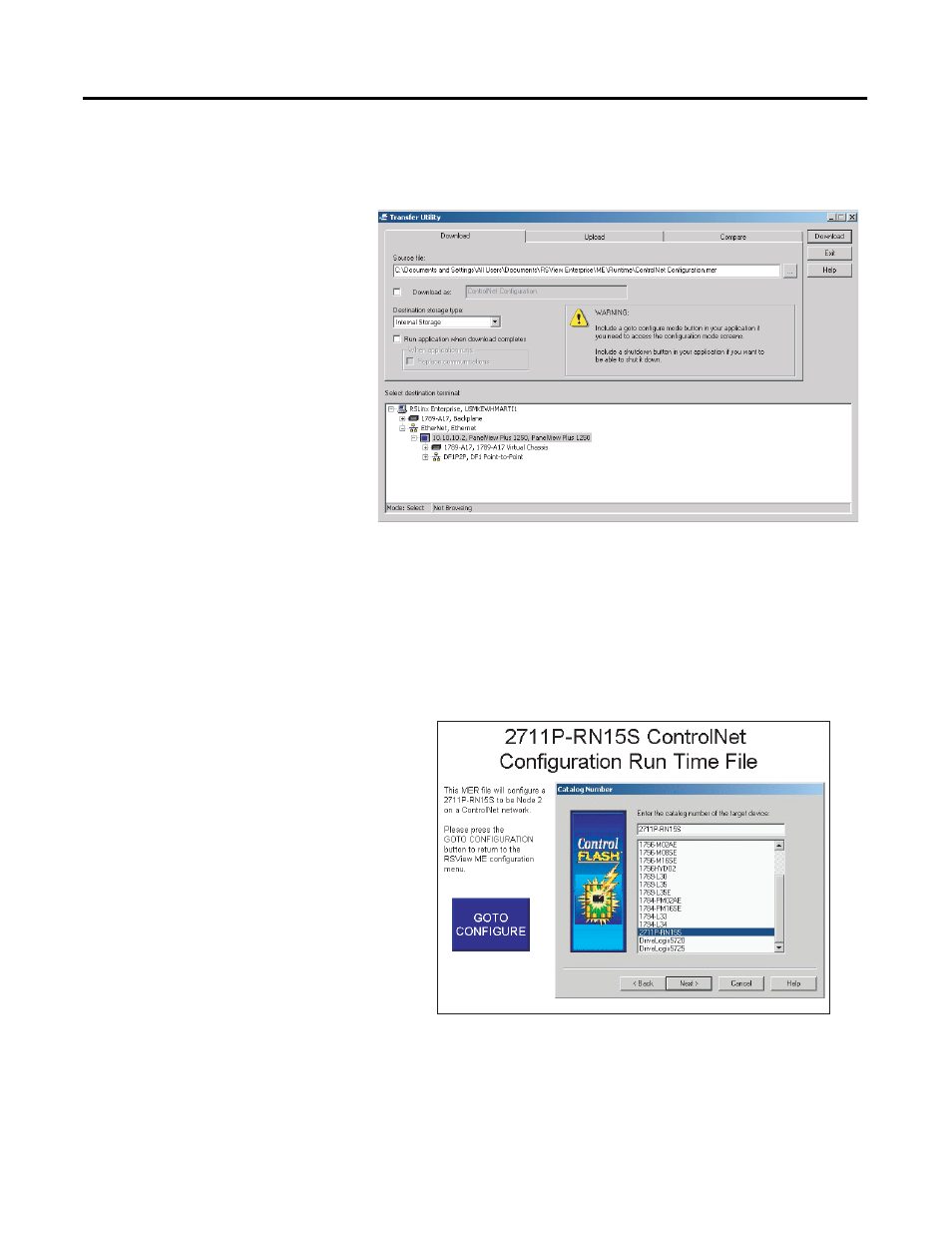

7. Download the .MER file to the terminal, and run the project. If
successful, the communication status LEDs will light on the
2711P-RN15x module.
8. A sample .MER has been created to configure the 2711P-RN15x
as Node 2 on a ControlNet network.
This application is located in Technote A103053983 on the
Rockwell Automation Technical Support Knowledgebase at
http://support.rockwellautomation.com. Download and run the
ControlNet Configuration.mer runtime file on the PanelView
Plus or PanelView Plus CE.
9. Press the Goto Configure button to return to the RSView ME
configuration menu.
You are now ready to configure RSNetWorx for ControlNet for
communications with the 2711P-RN15x ControlNet Module.
