Section 3 (Cont'd)
Wiring the Series Connected System Multiplexer Module to the System Multiplexer / Permissive Module (EXB2-4 Connector)
3. Insert the RLS connector plug (wired to the end of the EXB interface cable) into the selected RLS port of the Control Module. Do not connect the EXB
plug to the new System Multiplexer / Permissive Module until successfully completing the following continuity check of the cable.
4. Check cable continuity at connection points on the EXB connector plug as listed in Table 5.
· Note all RLS are turned ON except the one that is switched ON or OFF for testing.
· If continuity check is unsatisfactory, review wiring done in step 2 for errors and then re-check continuity.
5. When continuity check is successfully completed, insert the EXB connector plug into the EXB port on the new System Multiplexer / Permissive Module.
If RLS status output signals are not required, close and secure the cover of the System Multiplexer / Permissive Module enclosure.
IMPORTANT: If RLS status signals are required, proceed to Section 5 for instructions on wiring of the PLC1EXB connector plug on the System Multiplexer /
Permissive Module before performing Step 6. If using the Permissive option, proceed to Section 4 for instructions on wiring the System Multiplexer / Permissive Module
to the PLC before performing Step 6.
6. Commision the unit per Chapter 3 of the ElectroGuard User Manual Revision 2030_UM003A_EN_P or later.
Remote Lockout
Station Status
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
EXB Connector Plug
Connection Point Numbers
Continuity
1 & 6
3 & 8
4 & 9
10 & GND
5 & 10
1 & 6
3 & 8
4 & 9
10 & GND
5 & 10
Yes ➊
Yes
Yes
Yes
No
Yes ➌
No
No
Yes
No
➊ The "ML" pilot light in the Control Module has an impedance of about 60 to 70 Ohms.
➋ With 23-85A Control Module, check with positive meter lead (+) on connection point 5 and negative meter lead (-)
on connection point 10, the impedance should be about 110K Ohms. With 110-1200A Control Module, open fuse
covers on 14FU & 16FU fuse holders before checking continuity. Impedance should be about 900K Ohms.
➌ The "System Isolated" light on the front of the RLS has an impedance of about 2K Ohms.
Table 5
EXB Cable Continuity
Check Table
(6)
1 2 3 4 5 6 7 8 9 10 G
GND
TO EXB_ (9) TO EXB_ (8) TO EXB_ (6) TO EXB_ (4) TO EXB_ (3) TO EXB_ (1)
1 2 3 4 5 6 7 8 9 10 G
GND FROM RLS_A (9) FROM RLS_A (8) FROM RLS_A (6) FROM RLS_A (4) FROM RLS_A (3) FROM RLS_A (1)
RLS_A Terminal Block
on series connected
System Multiplexer
Module
RLS_A Connector Plug
on series connected
System Multiplexer
Module
EXB2-4 Terminal Block
on System Multiplexer /
Permissive Module
EXB2-4 Connector Plug
on System Multiplexer /
Permissive Module
Indicates Connection Point
on Connection Plug
EXB2-4 terminal Block on System Multiplexer / Permissive Module
1
1 1
Shield

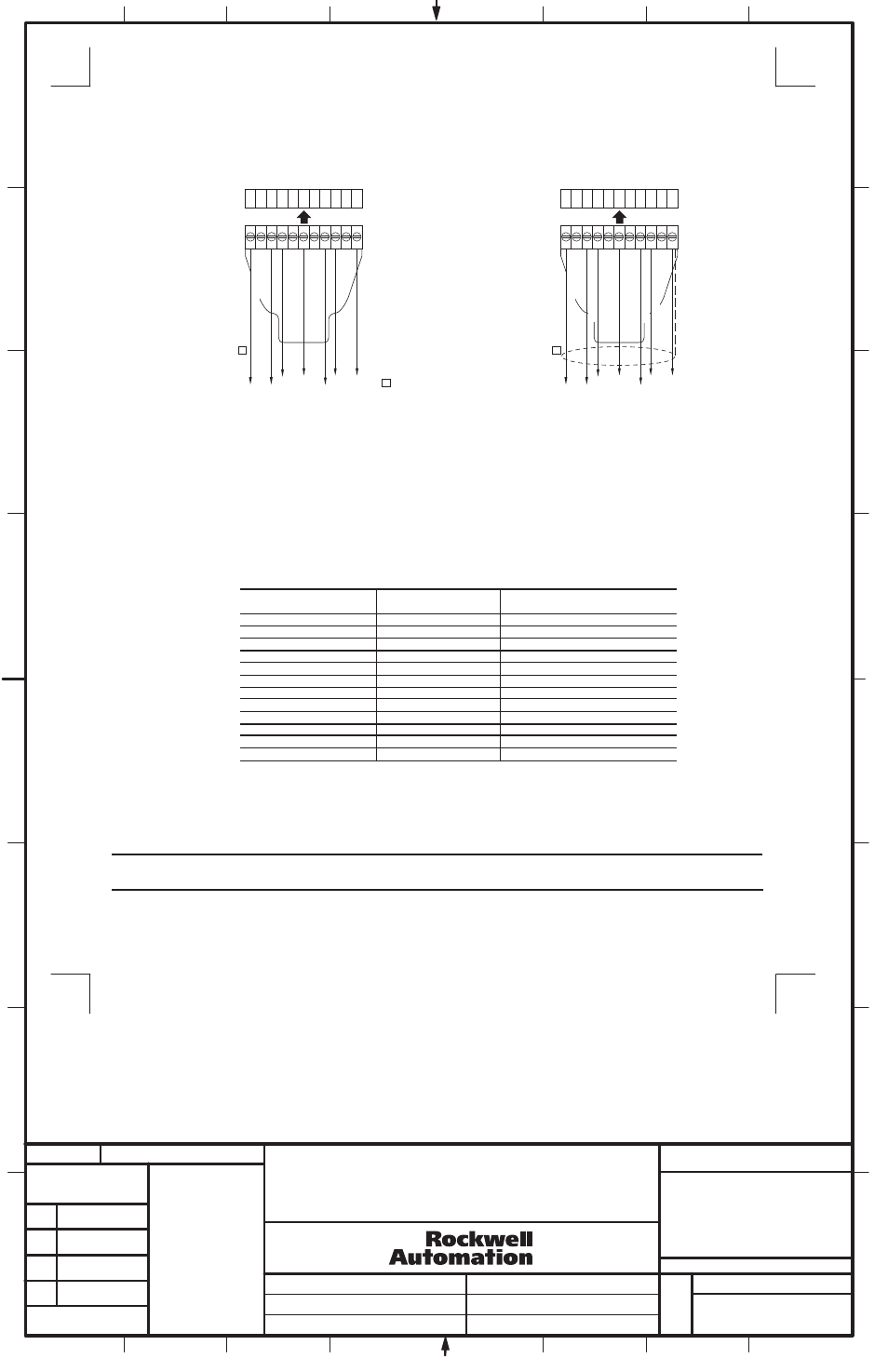

Figure 7
Series Wiring the System Multiplexer Module
SYSTEM MULTIPLEXER / PERMISSIVE MODULE
INSTALLATION INSTRUCTIONS
