PanelView Plus and PanelView Plus Compact 400 and 600 Terminals 11
Publication 2711P-IN002G-EN-P - November 2009
Follow these steps to mount the terminal in a panel.
1. Cut an opening in the panel using the panel cutout that shipped with the terminal.
2. If a communication module is ordered separately, attach the module to the base unit
before panel installation.
Refer to the instructions shipped with the module.
3. Make sure the terminal sealing gasket is properly positioned on the terminal.
This gasket forms a compression type seal. Do not use sealing compounds.
4. Install legend strips before installing the terminal if you are using keypad legend strips
on 600 keypad terminals.
Be careful not to pinch legend strip during installation.
5. Place the terminal in the panel cutout.
If you are mounting the terminal in an existing 550 panel cutout, align the terminal
with the center of cutout for adequate gasket sealing.
6. Insert all mounting levers into the mounting slots on the terminal.
Slide each lever until the flat side of lever touches the surface of the panel.

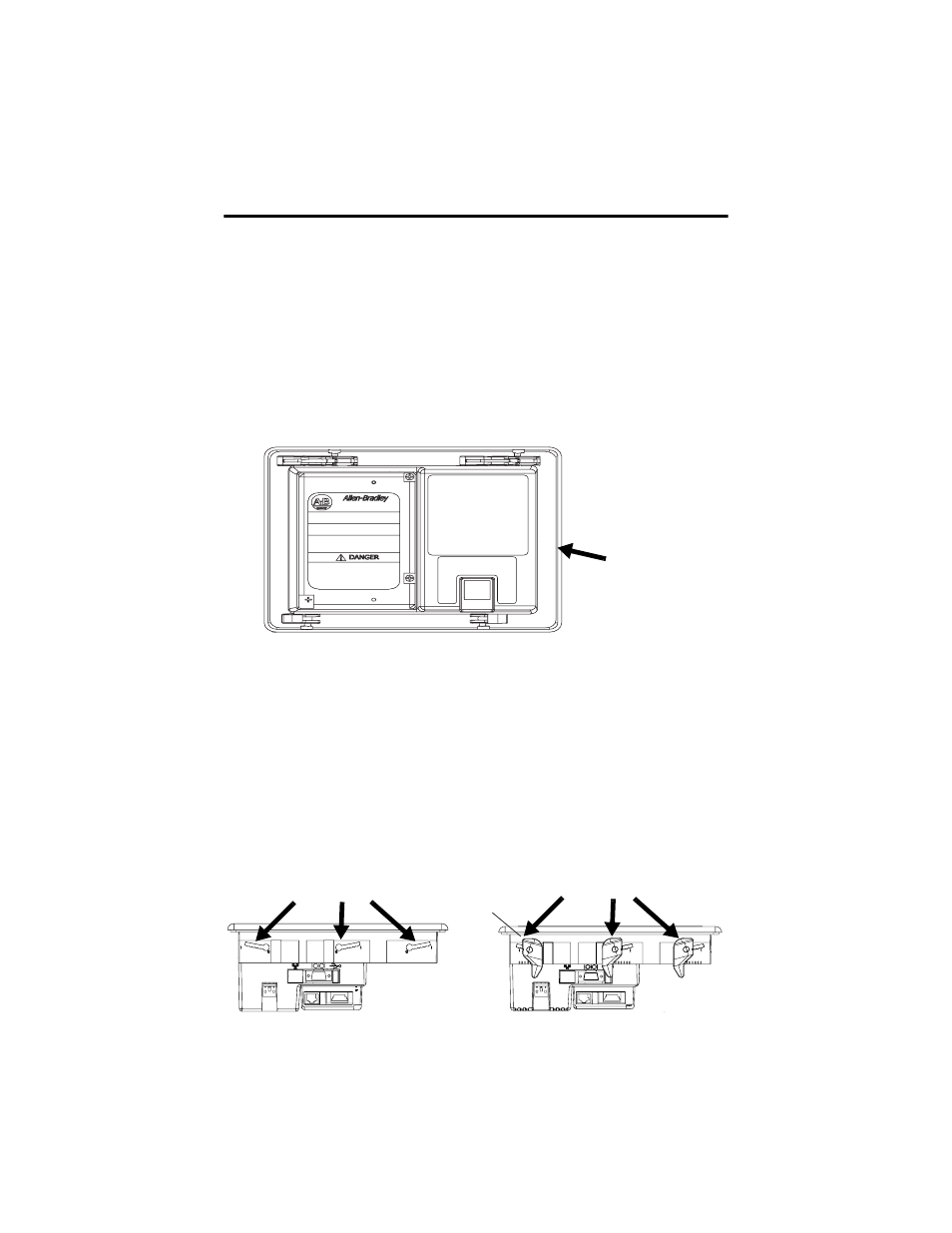

Sealing Gasket
Mounting Lever
Mounting Slots
Flat Side of Lever
