6 Battery Replacement
Rockwell Automation Publication 2711P-IN009E-EN-P - January 2011
Replace the Battery in InView Message Displays
Follow these steps to replace the battery in the InView Message displays, catalog number
2706-P92C or 2706-P94C.
1. Disconnect power from the message display.
2. Turn the half-turn latches all the way to the left until they hit stop.
3. Carefully lower the door.
4. Locate the battery on the circuit board.
5. Press down firmly on the middle part of the battery retainer clip.
The battery will pop out.
6. Slide the new battery under the 3-prong holder and push down.
7. Raise the door and turn the half-turn latches all the way right until they hit the stop and
the door is pulled in.

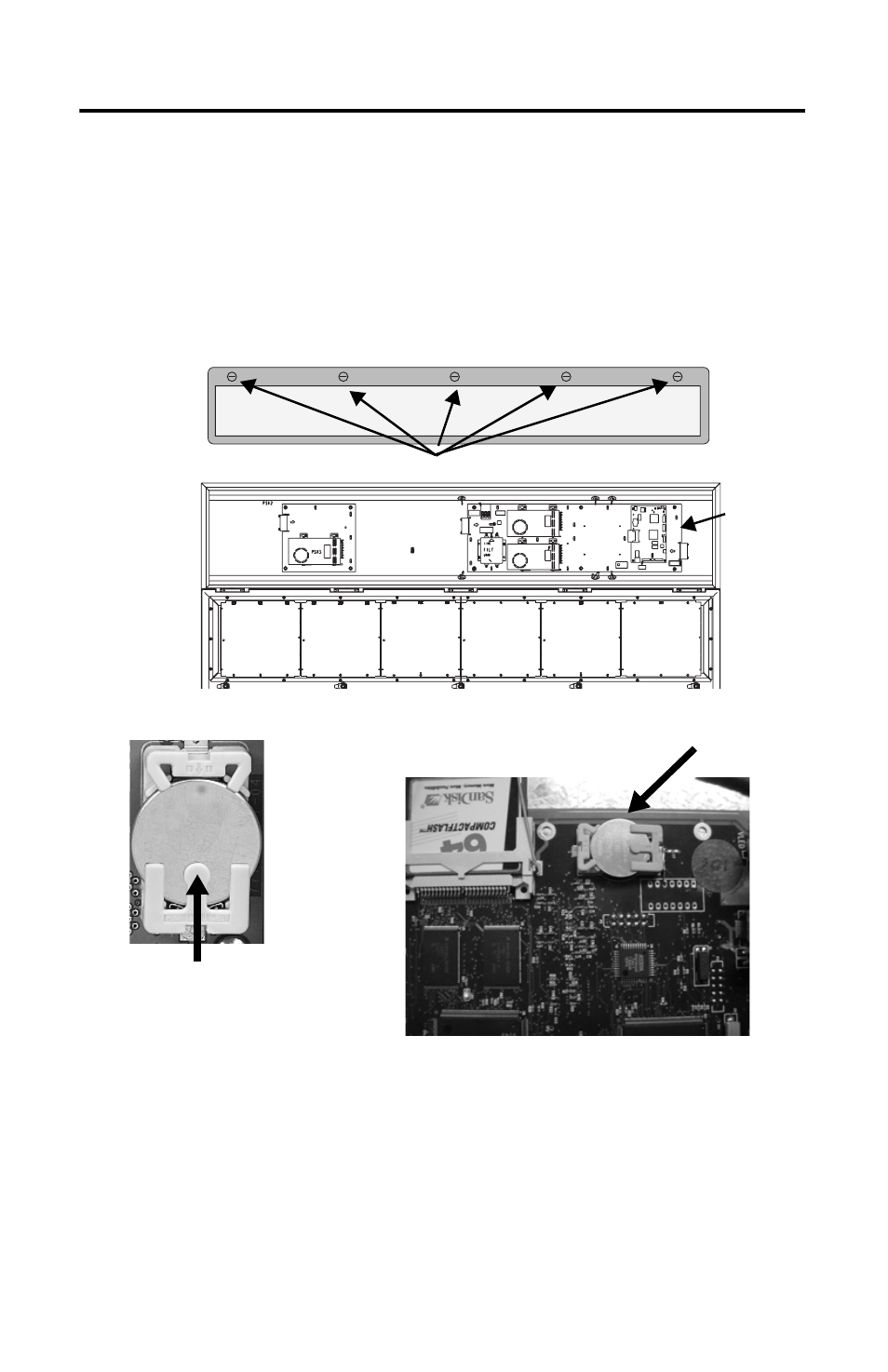

Half-turn Latches on a 2706-P94C Sign
Front View,
Closed
Front View,
Open
Circuit
Board
Press down here to pop battery the out.
Battery
