4 Battery Replacement
Rockwell Automation Publication 2711P-IN009E-EN-P - January 2011

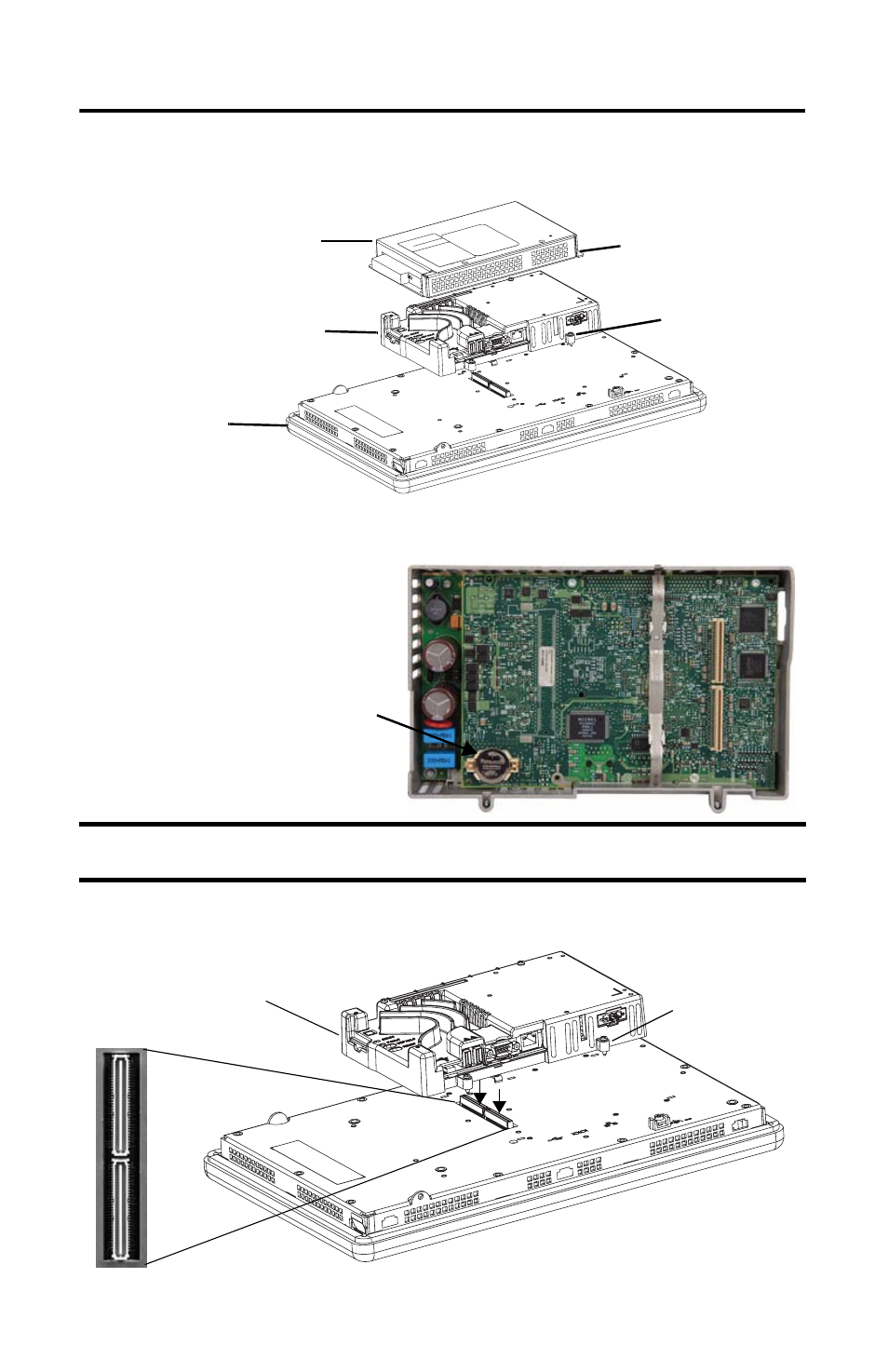

4. Detach the communication module, if attached, from the logic module by removing the
four screws.
5. Loosen the captive screws that secure the logic module to the display module and
carefully lift the logic module away from the back of the display.
6. Locate the battery on the
circuit board.
7. Remove the battery by lifting
up the side of the battery.
8. Insert the new battery with
the positive terminal side
facing up.
9. Reattach the logic module by aligning the logic module connector with the connector
on the display module.
IMPORTANT The battery may be removed for up to 15 seconds without losing the clock and
calendar data.
Logic Module
Communication Module
Screw
Captive Screw
Display Module
Captive Screw
Logic Module
