Battery Replacement 5
Rockwell Automation Publication 2711P-IN009E-EN-P - January 2011
10. Push down on the logic module until it is firmly seated.
11. Tighten the captive screws that secure the logic module to the display module and torque
to 0.58 N•m (5…7 lb•in).
12. Reattach the communication module, if necessary, and tighten the screws to a torque of
0.58 N•m (5…7 lb•in).
Replace the Battery in a PanelView Component Terminal
The PanelView Component C600 and C1000 terminals, catalog numbers 2711C-T6
x and
2711C-T10C, contain a lithium battery on the back of the terminal. No special tools are
required to remove the battery cover and replace the battery.
Follow these steps to replace the battery in the PanelView Component terminals.
1. Disconnect power from the terminal.

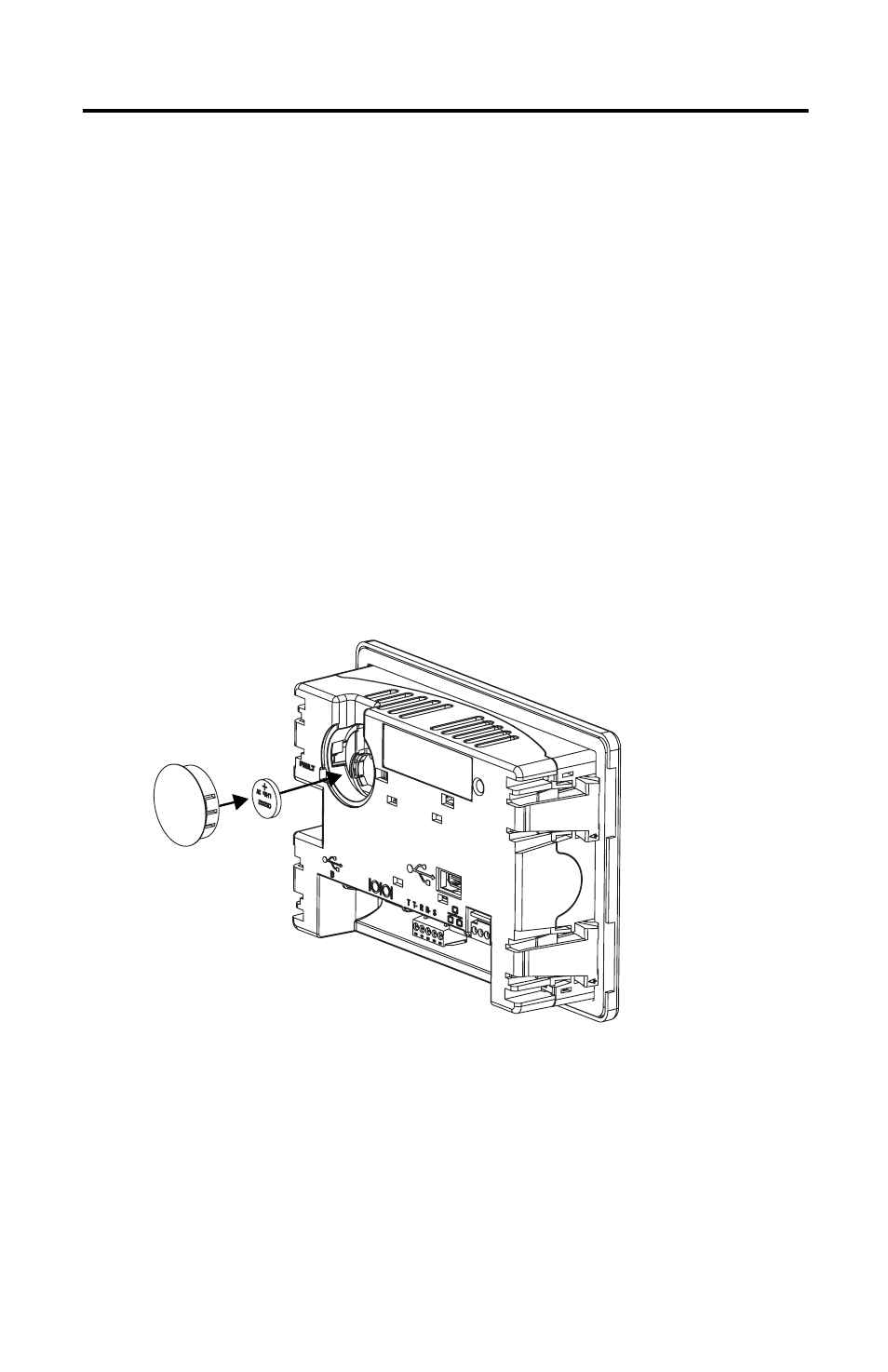

2. Remove the battery cover on the back of the terminal.
3. Replace the battery with a new one.
Battery Cover
Battery
