10 Input/10 Output Discrete Embedded I/O Boards 13
Publication 1799-IN003B-EN-P - December 2000
The DeviceLogix™ capable boards, 1799-D10U10BL and -D10U10VL, have
additional parameters which are described in the DeviceLogix
configuration tool documentation.
Troubleshoot with the Indicators

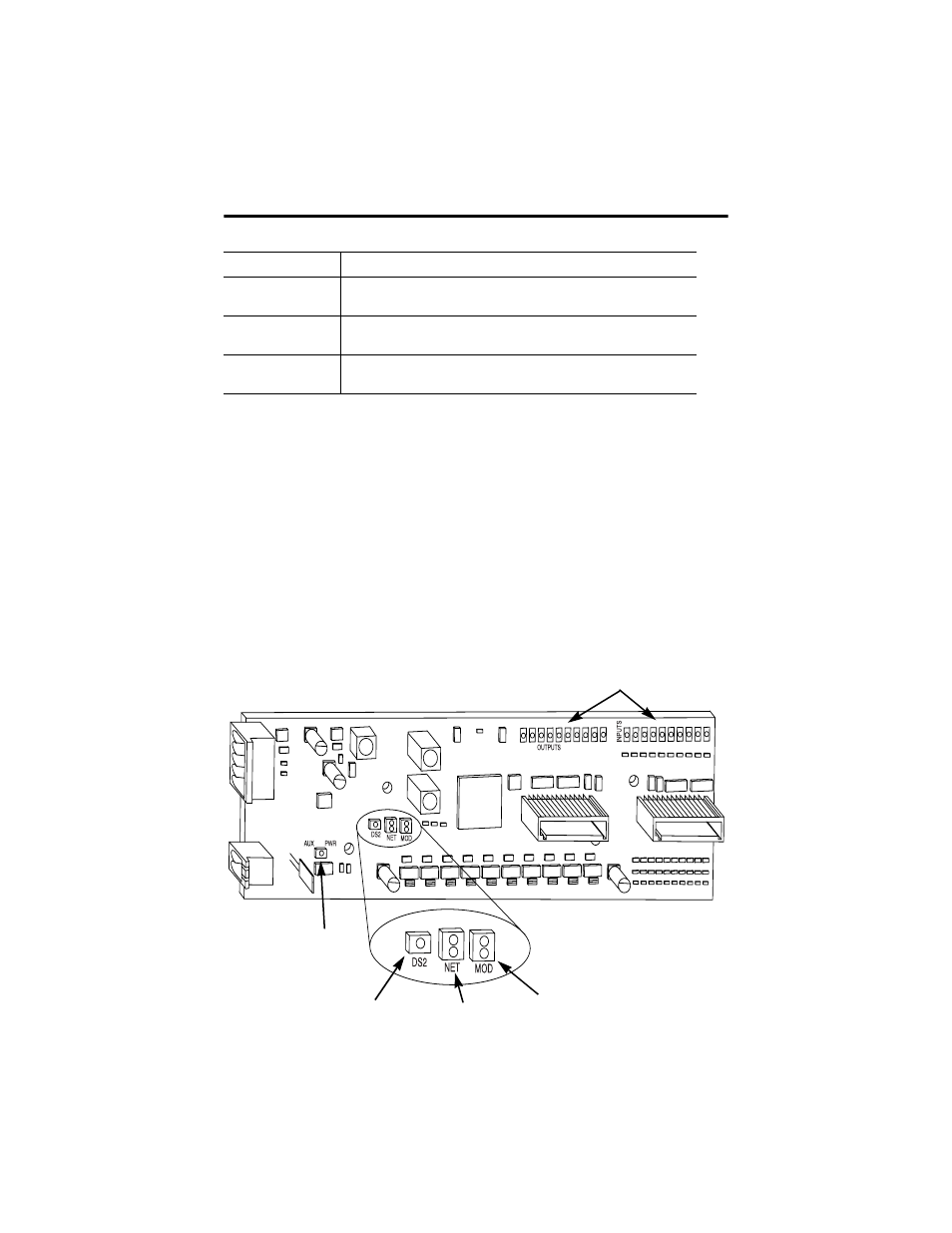

This board has the following indicators, shown in the picture below:
•
Board status indicator
•
Network status indicator
•
DeviceLogix status
•
Auxiliary power indicator
•
I/O status indicators
Parameter
Description
Output Fault State
Controls the state of each output when the board loses
communication with the DeviceNet master.
Output Idle Value
Controls the value that outputs take on when the output idle state is
set to ‘use idle value.’
Output Fault Value
Controls the value that outputs take on when the output fault state
is set to ‘use fault value.’
I/0 Status
Indicators
Board Status
Indicator
Network Status
Indicator
DeviceLogix
Status Indicator
42509
Auxiliary Power
Indicator
