8 InView EtherNet/DeviceNet Module
Mounting Module to P72
and P74 Displays The P72 and P74 InView displays do not have a track for mounting
the module on the display. You can remove the back plate and mount
the bottom of the enclosure to a wall or panel near the display. Use
screws (8-32 UNC-2A) measuring a minimum of 1/4” plus the
thickness of the mounting surface.

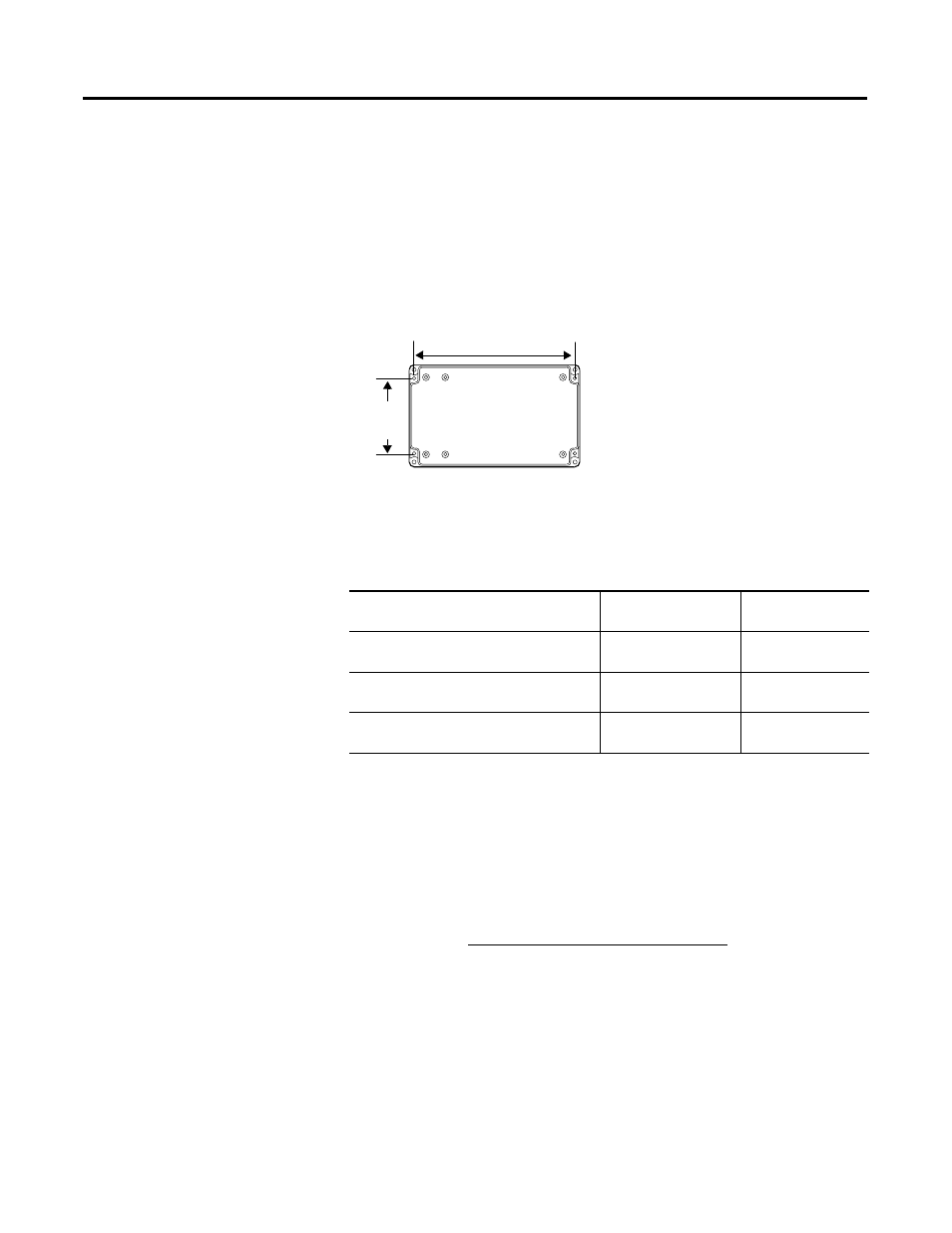

The dimensions for the 4 mounting holes are shown below.
For More Information Related Publications
If you would like a manual, you can:
•
download a free electronic version from the internet:
www.ab.com/micrologix or www.theautomationbookstore.com
•
purchase a printed manual by:
– contacting your local distributor or Rockwell Automation
representative
– visiting www.theautomationbookstore.com and placing your
order
– calling (1) 800 963-9548 (USA/Canada)
or (001) 330 725-1574 (Outside USA/Canada)
3.46
(88 mm)
7.40 in (188 mm)
Enclosure Case
For Refer to this
Document Pub. No.
A more detailed description on how to
install and use your Ethernet Interface. Ethernet Interface User
Manual 1761-UM006A-EN-P
Instructions on installing a 1761-NET-AIC or
1761-NET-DNI Interface Converter. AIC+ and DNI
Installation Instructions 1761-5.11
A more detailed description on how to
install and use your DeviceNet Interface. DeviceNet Interface
User Manual 1761-6.5
