7. Torque the cable grip until the cap is completely seated.
8. Replace the power supply back cover with the 6 screws (on
2706-P4x). Torque the screws to 2.7Nm (24 in-lbs).
Carefully close the sign and tighten the latches (on 2706-P7x).
9. Connect the power supply to a power source.
Mounting Module to P42,
P43 and P44 Displays The InView EtherNet/IP and DeviceNet Interface module is designed
to mount to the track of the InView P42, P43 and P44 displays. The
back plate of the module has tabs for attaching to the track. Tighten
mounting screws until they bottom out against the back plate.
TIP
Be sure to place the wires so they are not caught by
screws when replacing the power supply cover, and
also so they do not interfere with fan operation.

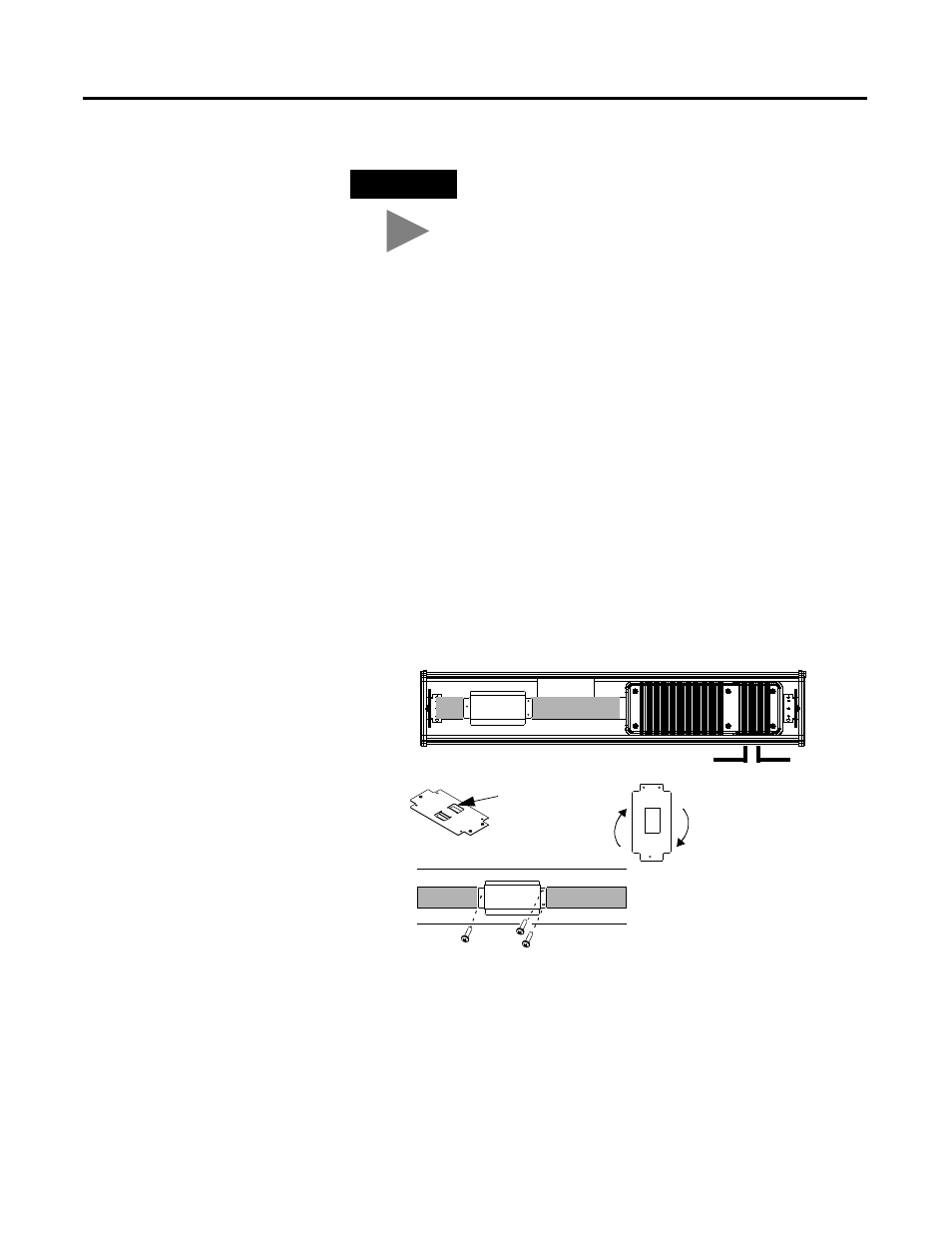

For ease in mounting, rotate
module 90° so that the
mounting holes are on top and
bottom. Rotate the module
clockwise over track until the
alignment is horizontal. Back Plate
with Tabs
Power Line Serial Cable
