35
Publicación 2706-IN010C-MU-P
Instrucciones de instalación
Sección en espanol
Módulo InView EtherNet/IP
(Número de catálogo 2706-PENI)
Módulo InView DeviceNet
(Número de catálogo 2706-PDNI)

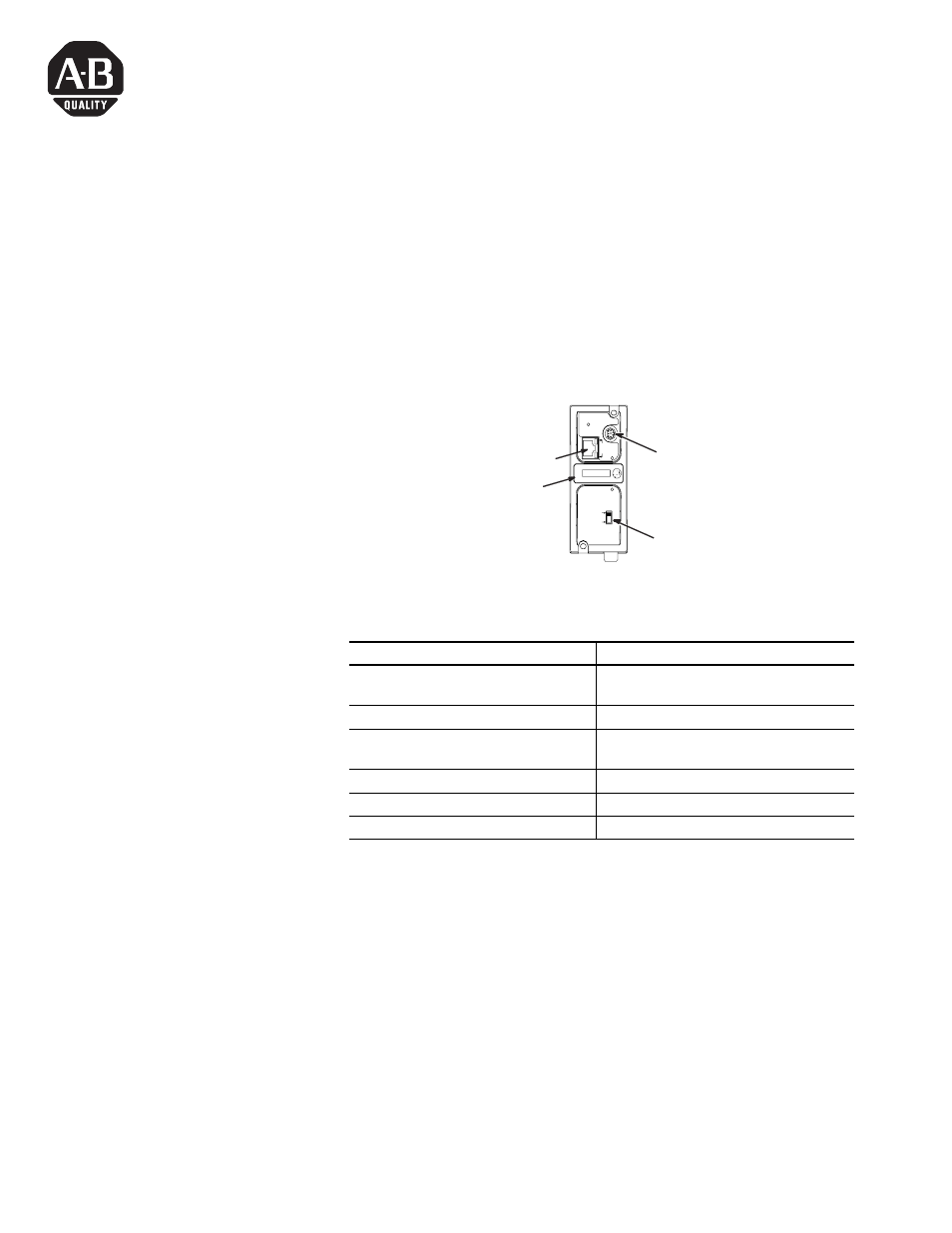

Identificación del puerto
ENI
Especificaciones del PENI
ETHERNET
FAULT
RS232
NET
TX/RX
TX/RX
PWR
CABLE
EXTERNAL
IP
Use esta área de escritura para
marcar la dirección Ethernet IP
RS-232 Mini-DIN (puerto 2 ENI)
Puerto Ethernet (puerto 1 ENI)
Interruptor de fuente de
alimentación eléctrica –
(Establecido en EXTERNAL)
Descripción
Especificaciones de ENI
Requisito de fuente de alimentación
de 24 VCC
20.4 a 26.4 VCC
Consumo de corriente de 24 VCC
50 mA típico, 100 mA máximo
Corriente máxima de entrada al
momento del arranque
200 mA
Aislamiento interno
500 VCA durante un minuto
Temperatura ambiente de operación
0
°
C a +50
°
C (+32
°
F a +122
°
F)
Temperatura de almacenamiento
–40
°
C a +85
°
C (–40
°
F a +185
°
F)
