Point indent crimp tool with digital display – Rockwell Automation 2090-Series Circular-DIN Connector Kits, Flange Kits, and Crimp Tools User Manual
Page 8

Rockwell Automation Publication 2090-IN042A-EN-P - May 2011
8

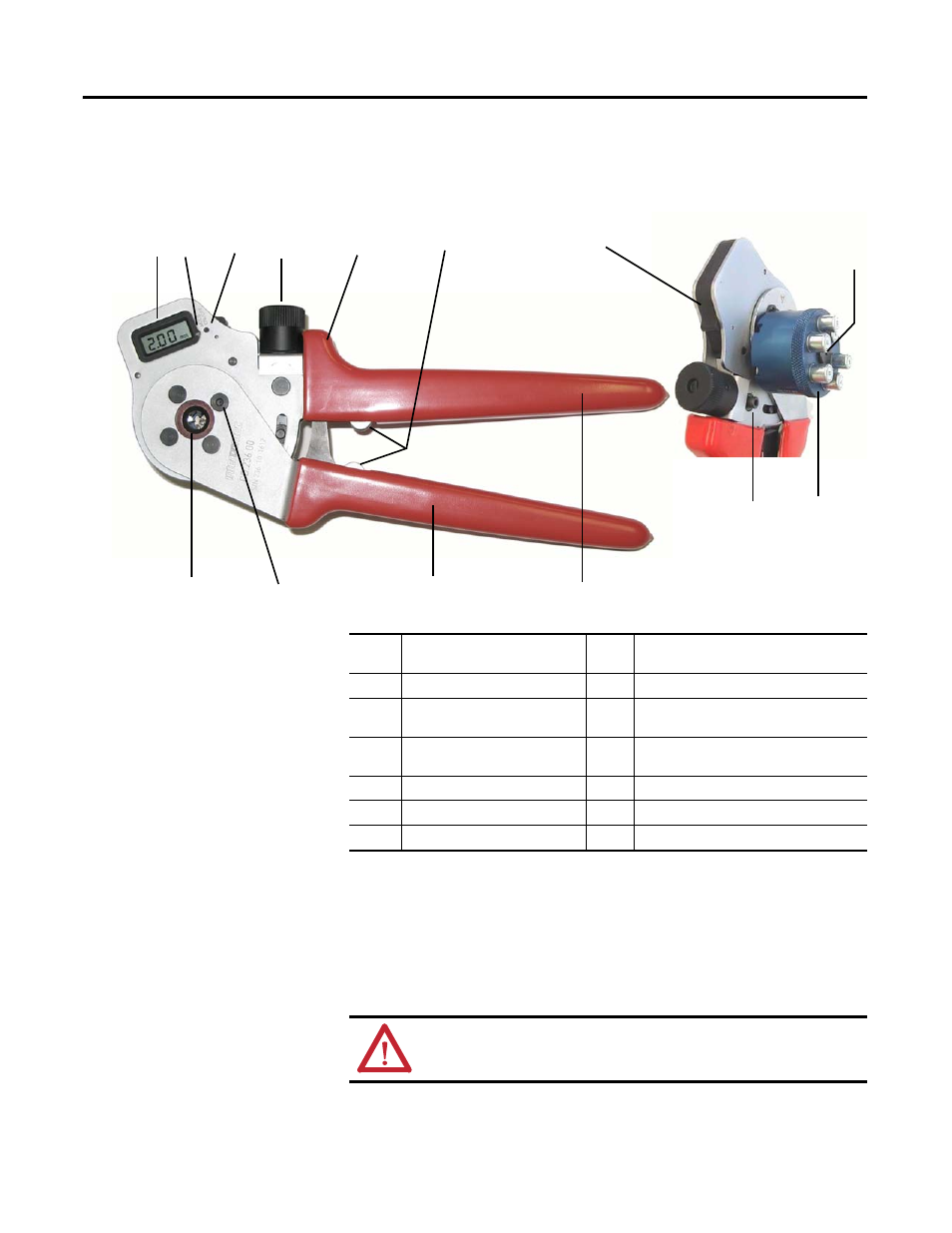

8-point Indent Crimp Tool
with Digital Display
The 8-point indent crimp tool is designed for crimping 2090-series signal and
power contact wires with a cross section of 0.10…4.0 mm
2
(0.003...0.157 in.
2
).
The revolving locator offers maximum flexibility and process safety.
Use the crimp tool only in accordance with these instructions and in strict
compliance with acknowledged safety rules.
1
Digital display
8
Allen wrench fitting in center of revolving
locator to assemble locator to crimp tool
2
Mode push button
9
Crimp indenter
3
On push button
10
Allen wrench fitting in rivet to disassemble
revolving locator to crimp tool
4
Adjustment wheel
(at 0.01 mm increments)
11
Movable handle
5
Emergency release
12
Fixed handle
6
Endstops
13
Adjustment wheel setscrew
7
Battery compartment
14
Revolving locator with six cartridges
1 2
3
4
5
6
7
13
12
11
9
14
8
10
Cat. No. 2090-TCR47-M23
ATTENTION: Understand the crimp tool and how it works. Use the
crimp tool only for crimping the contacts included in the
2090-series kits. Misuse may cause personal injury.
