Wire the Connector

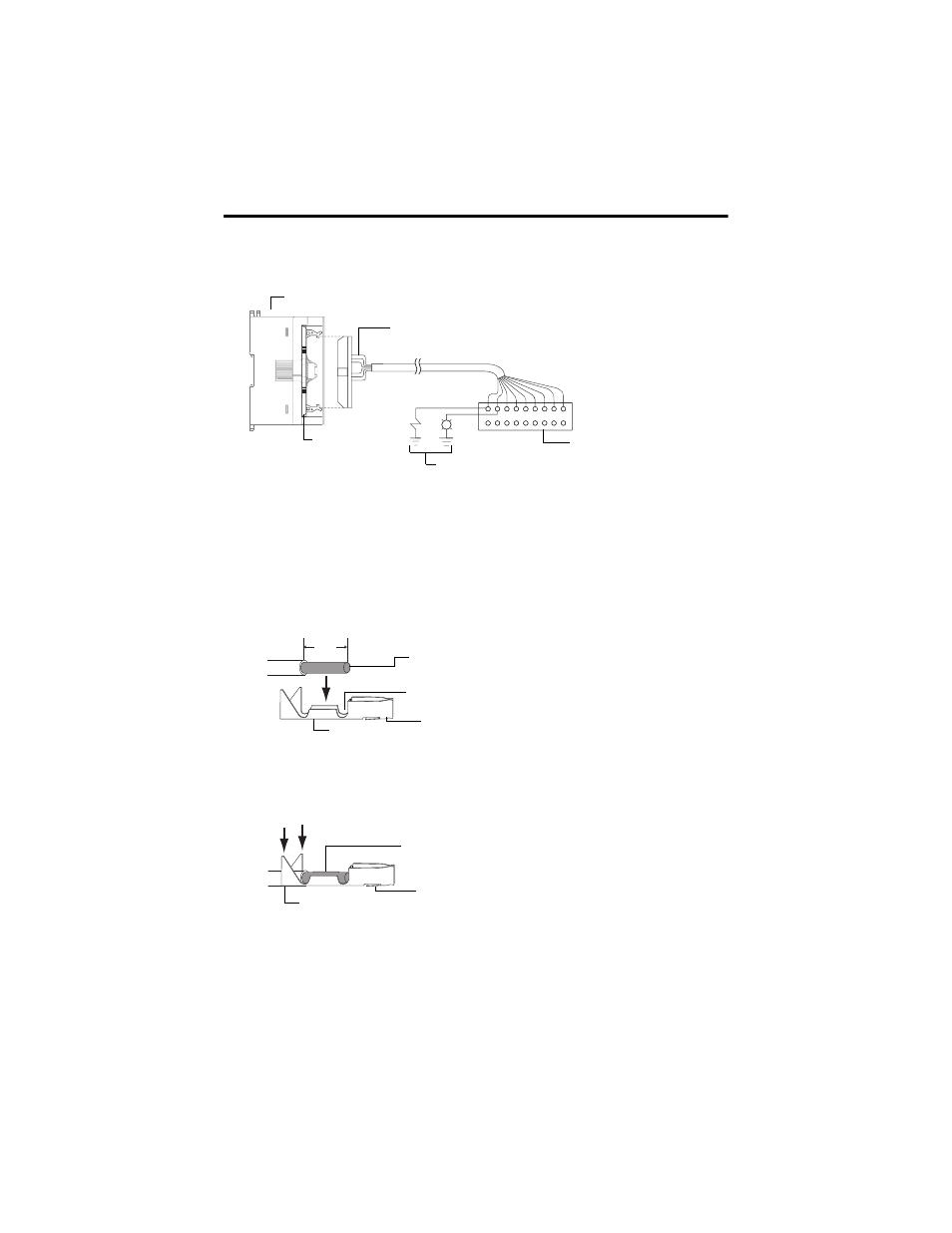

Assemble the Wire Contacts
1. Strip the wire insulation to expose 4 mm (5/32 in.) of wire. Crimp pins can accept
22...26 AWG wire.
2. Insert the wire into the crimp pin as far as the wire stop.
3. Crimp the wire barrel around the wire using small needle nose pliers.
4. Crimp the insulation barrel around the wire insulation using small needle nose pliers.
5. Solder wire and wire barrel together using lead-free solder and soldering pencil.
Keyed female connector
Included with the module.
44924
2085-IQ32T module
Keyed male
connector
Panel lights, buttons,
sensors
Contact pins provided with
female connector can
accept 22...26 AWG wires.
User terminal connector
4 mm
(5/32 in.)
44916
Wire stop
Wire barrel
Tang
Stripped wire
44921 Insulation barrel
Stripped wire
Tang
