Micro800 16-point and 32-point 12/24V Sink/Source Input Modules 7
Publication 2085-IN001A-EN-P - September 2012
Mount the Module
For more information on proper grounding guidelines, see the Industrial Automation Wiring
and Grounding Guidelines, publication
1770-4.1 .
Module Spacing
Maintain spacing from objects such as enclosure walls, wireways and adjacent equipment. Allow
50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown.

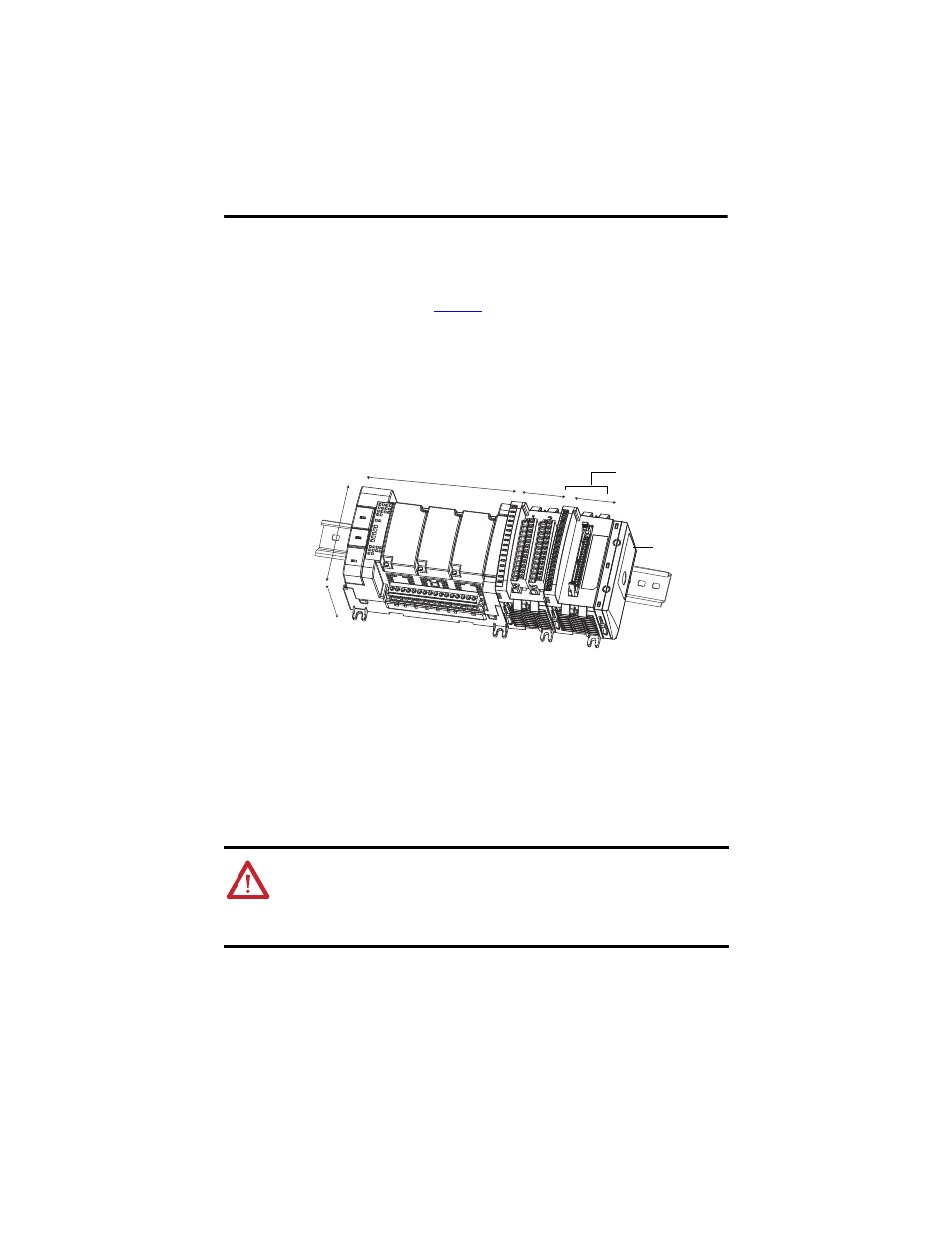

Mounting Dimensions and DIN Rail Mounting
DIN Rail Mounting
The module can be mounted using the following DIN rails: 35 x 7.5 mm x 1 mm
(EN 50 022 - 35 x 7.5).
Before mounting the module on a DIN rail, use a flat-blade screwdriver in the DIN rail latch and
pry it downwards until it is in the unlatched position.
1. Hook the top of the DIN rail mounting area of the module onto the DIN rail, and then
press the bottom until the module snaps onto the DIN rail.
TIP For environments with greater vibration and shock concerns, use the panel mounting method,
instead of DIN rail mounting.
ATTENTION: This product is grounded through the DIN rail to chassis ground. Use zinc plated
yellow-chromate steel DIN rail to assure proper grounding. The use of other DIN rail materials
(for example, aluminum or plastic) that can corrode, oxidize, or are poor conductors, can result
in improper or intermittent grounding. Secure DIN rail to mounting surface approximately every
200 mm (7.8 in.) and use end-anchors appropriately.
45298
Mounting dimensions do not include mounting feet or DIN rail latches.
87 mm (3.42 in.)
90 mm
(3.54 in.)
150 mm (5.91 in.)
44.5 mm (1.75 in.)
2085-IQ16 2085-IQ32T
Micro850 Controller
Bus terminator
