Install or replace ram – Rockwell Automation 2711P-Rxxxx Logic Module, Internal CompactFlash, and RAM User Manual
Page 7

Logic Module, Internal CompactFlash, and RAM 7
Publication 2711P-IN004J-EN-P - September 2009
Install or Replace RAM
The logic module is available with or without RAM installed. If ordered separately, you must
install the RAM before attaching the logic module to the display module.
RAM Memory Modules
Follow these steps to install or replace RAM.
1. Turn the logic module over to expose the circuit board.
2. Locate the RAM module on the circuit board.
3. Pull the metal retaining clips away from the module and slide out the RAM module.
4. Insert the new RAM module at a 45° angle and snap down.
Cat. No.
Description
2711P-RR64
64 MB SODIMM RAM for PanelView Plus and PanelView Plus CE terminals
2711P-RR128
128 MB SODIMM RAM for PanelView Plus and PanelView Plus CE terminals
2711P-RR128K
Conformal-coated 128 MB SODIMM RAM for PanelView Plus and PanelView
Plus CE terminals
2711P-RR256
256 MB SODIMM RAM for PanelView Plus and PanelView Plus CE terminals

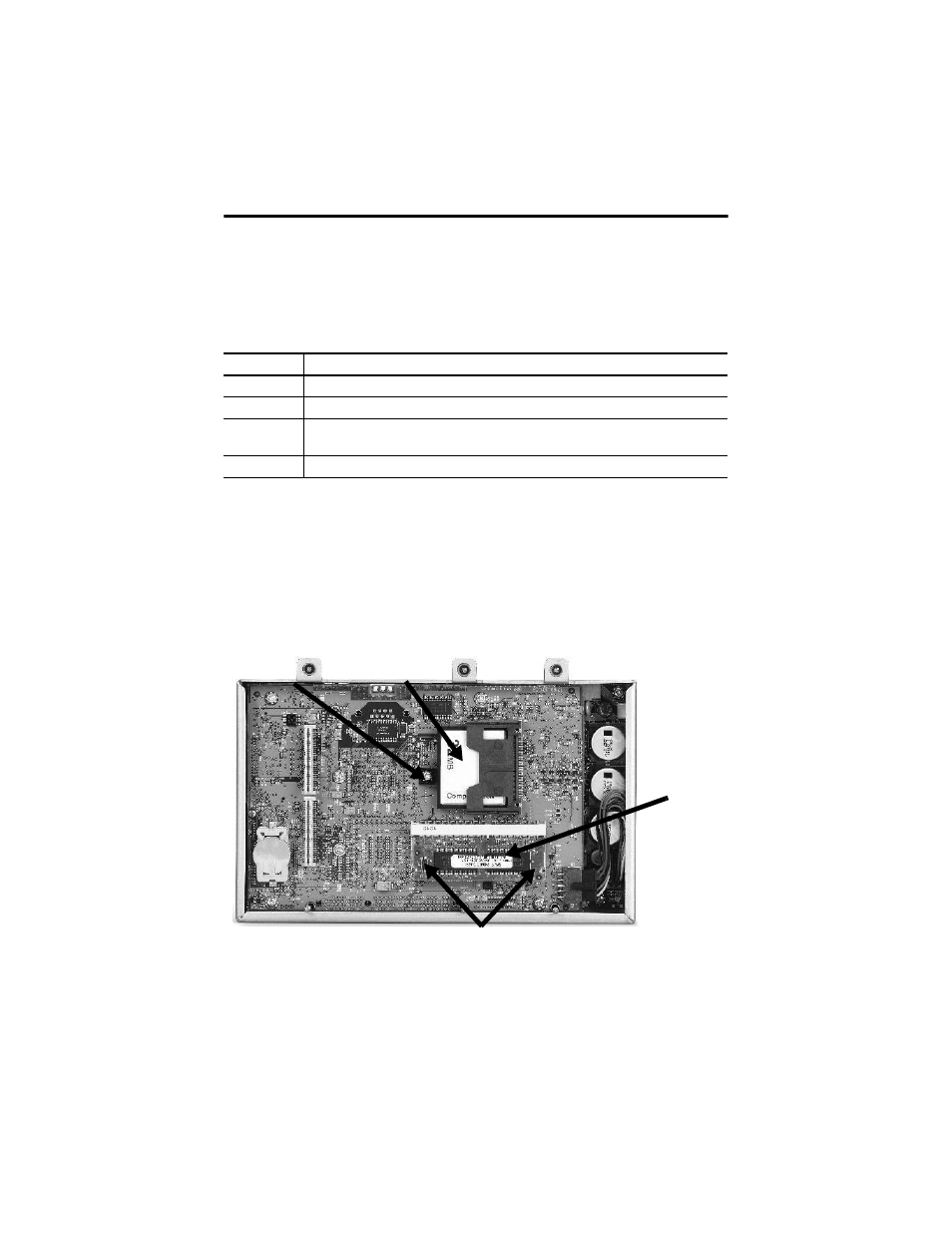

RAM
Module
CompactFlash Card
Retaining Clip
Screw
Retaining Clips
