Rockwell Automation 2706-PxM_PxK_PxP InView Communication Module Installation User Manual
Page 9
InView Communication Modules 9
Publication 2706-IN015E-EN-P - May 2007

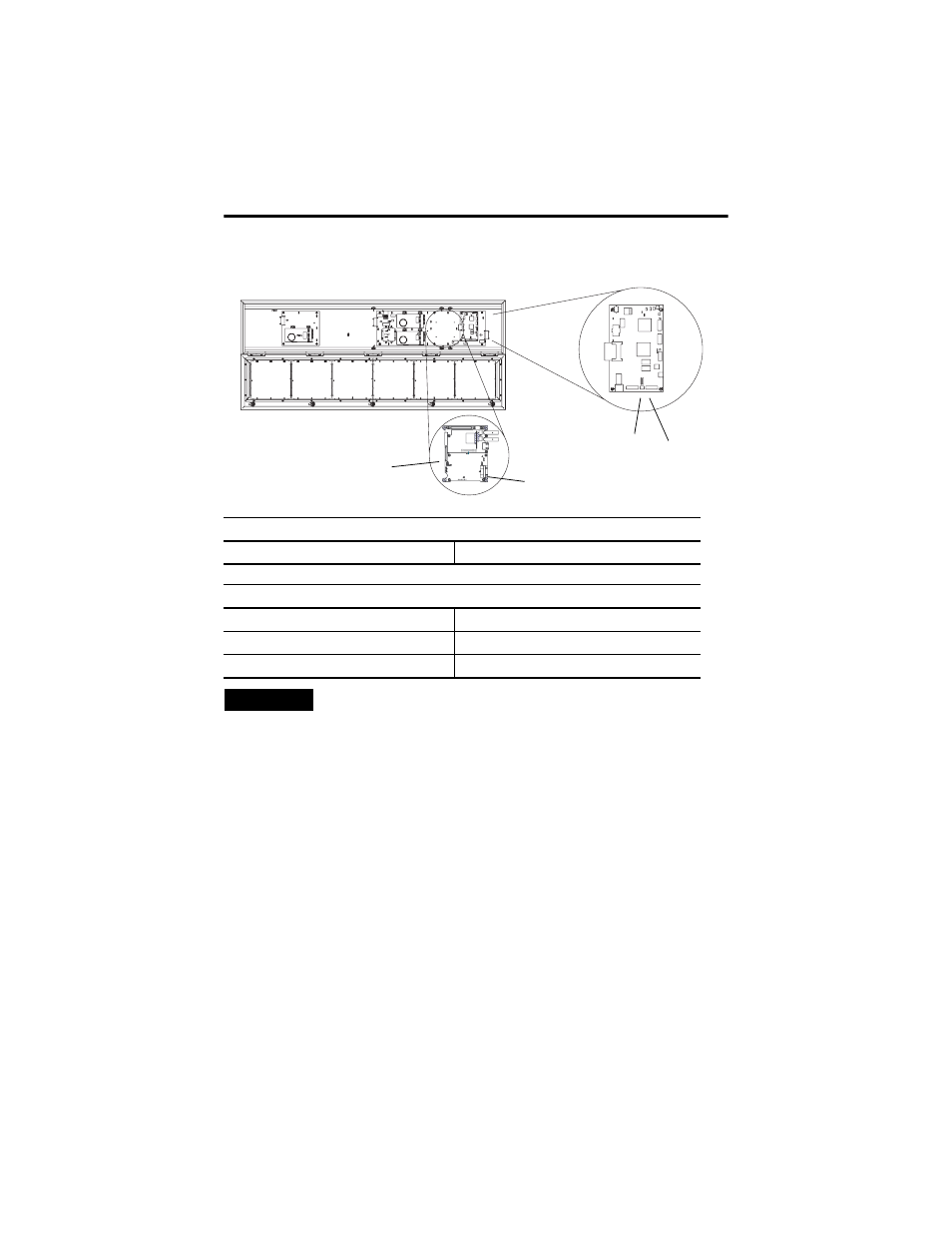

1. Connect the serial wires to the TB2, TB3 terminal block in the InView
display.
2. Route the user-supplied network cable through the cable grip and locknut
that is provided.
3. Connect the user-supplied network cable to the communication module.
4. Verify that there is adequate slack in the cable by making a loop of cable
inside the InView case.
5. Mount the cable grip to the InView display housing, tighten the locknut
finger-tight, and rotate an additional 1/2 turn.
6. Torque the cable grip cap until the cable is securely fastened.
7. Carefully close the InView case and tighten the latches by turning them
clockwise.
8. Connect the InView display to a power source.
TB2 - Aux +5V
+5V (Red)
GND (Black)
TB3 - RS-232
TXD (Orange)
CTS
RXD (Brown)
GND
RTS
EGND
TIP
The 2706-PxK communication modules are powered through the serial cable by
the display (series A).
To TB2 and TB3
TB2
TB3
Communication Module
