10 InView Communication Modules
Publication 2706-IN015E-EN-P - May 2007

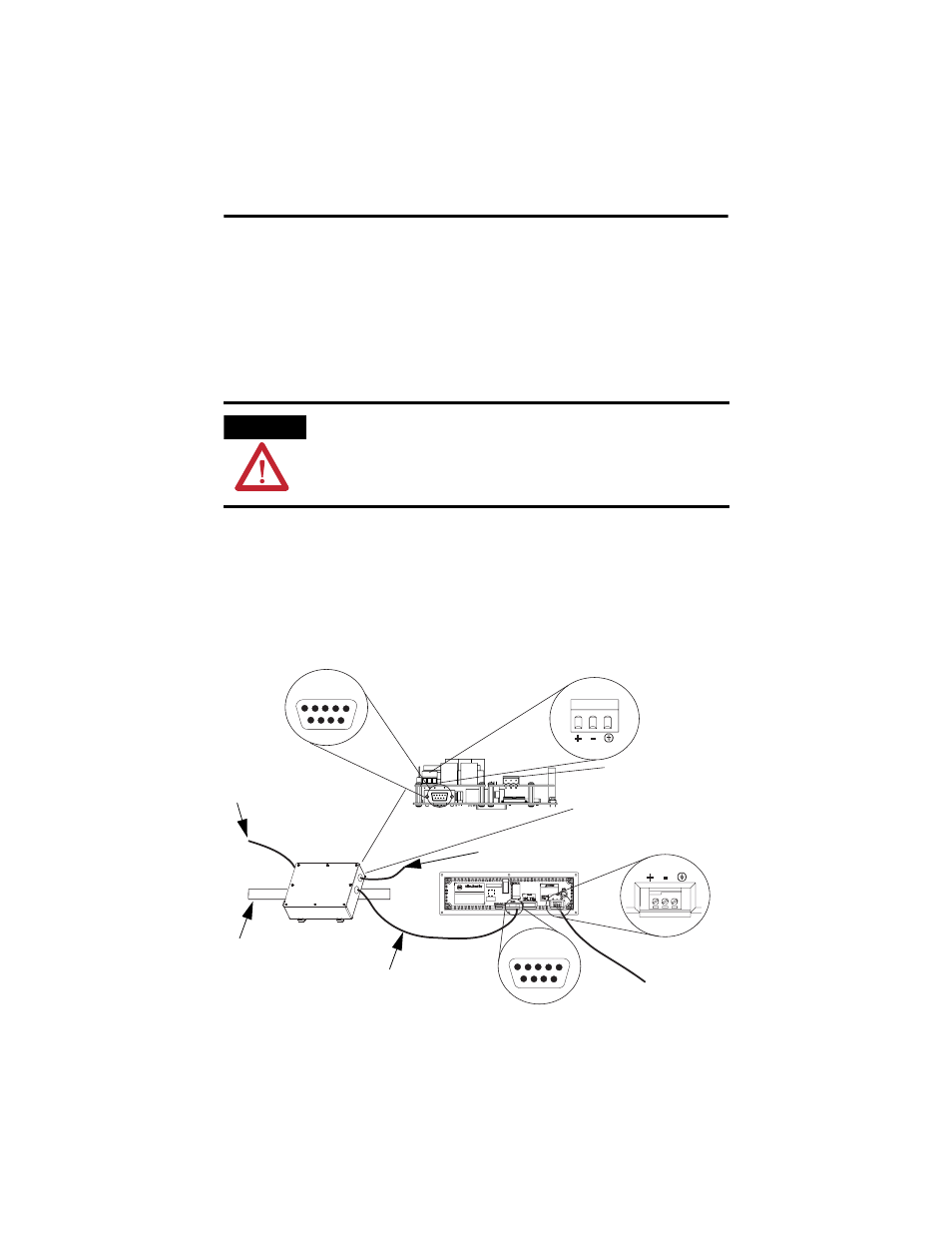

Using the Communication Module with a 2706-P22R Display
The 2706-P22R InView panel-mount display can be used with a 2706-PxP
communication module. The module is mounted on a DIN rail inside the enclosure
in which the 2706-P22R display is mounted. This maintains the NEMA 4x, 12, or 13
rating. The 2706-PxP communication module also requires a separate 24V dc power
supply. This module does not receive power from the InView display.
Follow these steps to mount and connect the communication module.
1. Disconnect power to the enclosure.
2. Mount the DIN rail somewhere in the enclosure, near the 2706-P22R display.
3. Snap the communication module to the DIN rail and lock the latches.
4. Connect the user-supplied network cable to the communication module.
ATTENTION
Hazardous voltage. Contact with high voltage may cause death or serious
injury. Always disconnect power to the InView display prior to servicing.
1 2 3 4 5
6 7 8 9
RS-232
1 2 3 4 5
6 7 8 9
RS-232
24V dc
(user-supplied)
DIN Rail
To Controller
(user-supplied cable)
2706-NC13 Serial Cable (supplied)
24V dc
Class 2
24V dc
Network Port
