14 PanelView Component HMI Terminals
Publication 2711C-IN001H-EN-P - July 2014

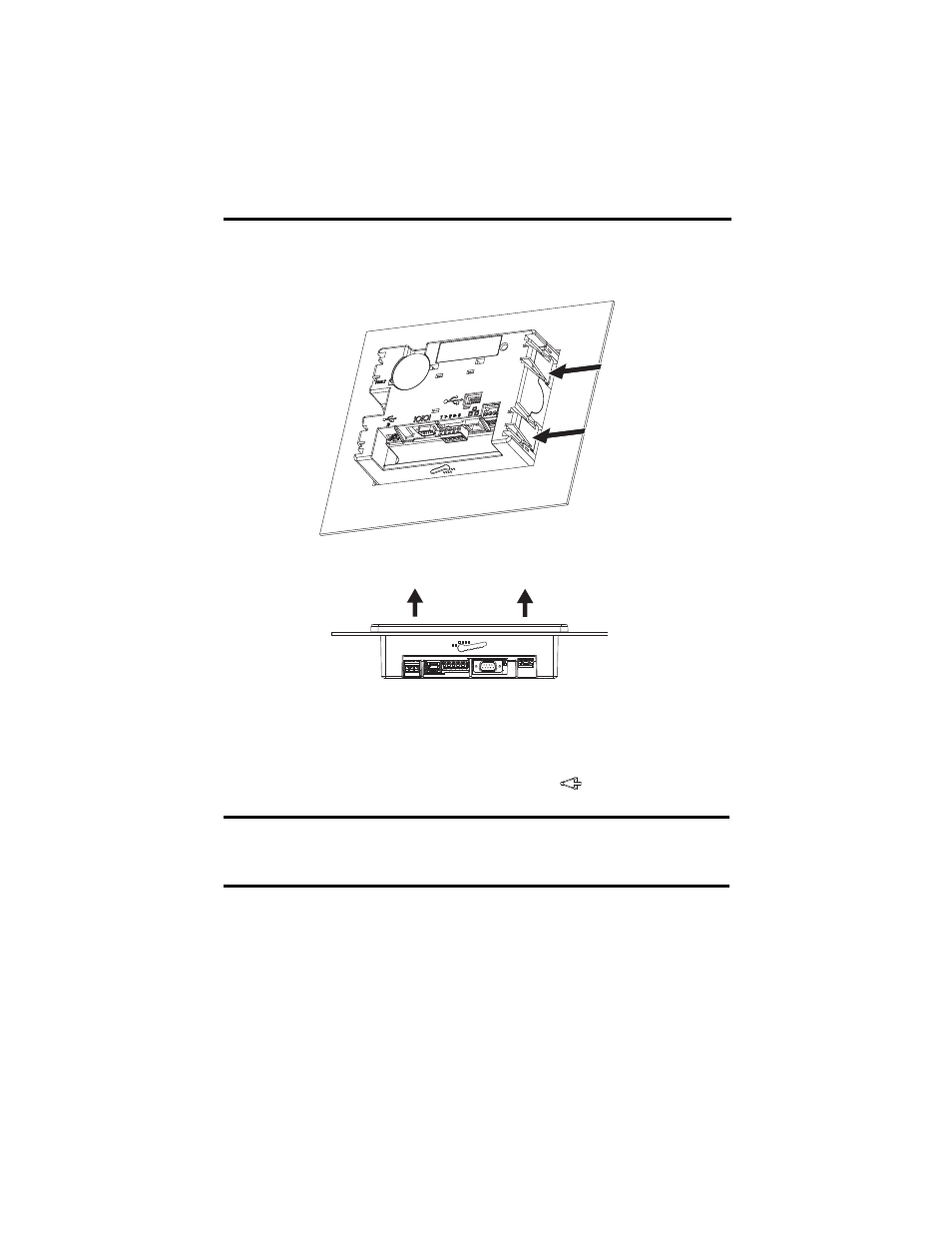

3. Push each panel clamp in until it is fully depressed and locked.
Depressed and locked, the panel clamps provide adequate clearance to remove the terminal.
4. Grip the sides of the bezel and gently pull the terminal out of the panel opening.
Before reinstalling the terminal in the panel opening, you must release each panel clamp from its locked
position. Do this as soon as possible after the removing the terminal from the panel.
Follow these steps to unlock each panel clamp.
1. Insert the tip of a flat-blade, #3 - #6, screwdriver, approximately 5 mm (0.20 in.),
into the location shown on each clamp, next to the arrow icon , and pull the screwdriver
straight out.
IMPORTANT Take care to insert the screwdriver in the correct orientation and on the correct side of each
clamp, as indicated by the arrow icon. Do not pry the plastic with the screwdriver or you may
damage the clamp.
6 1
44873
6 1
44874
