12 PanelView Component HMI Terminals
Publication 2711C-IN001H-EN-P - July 2014

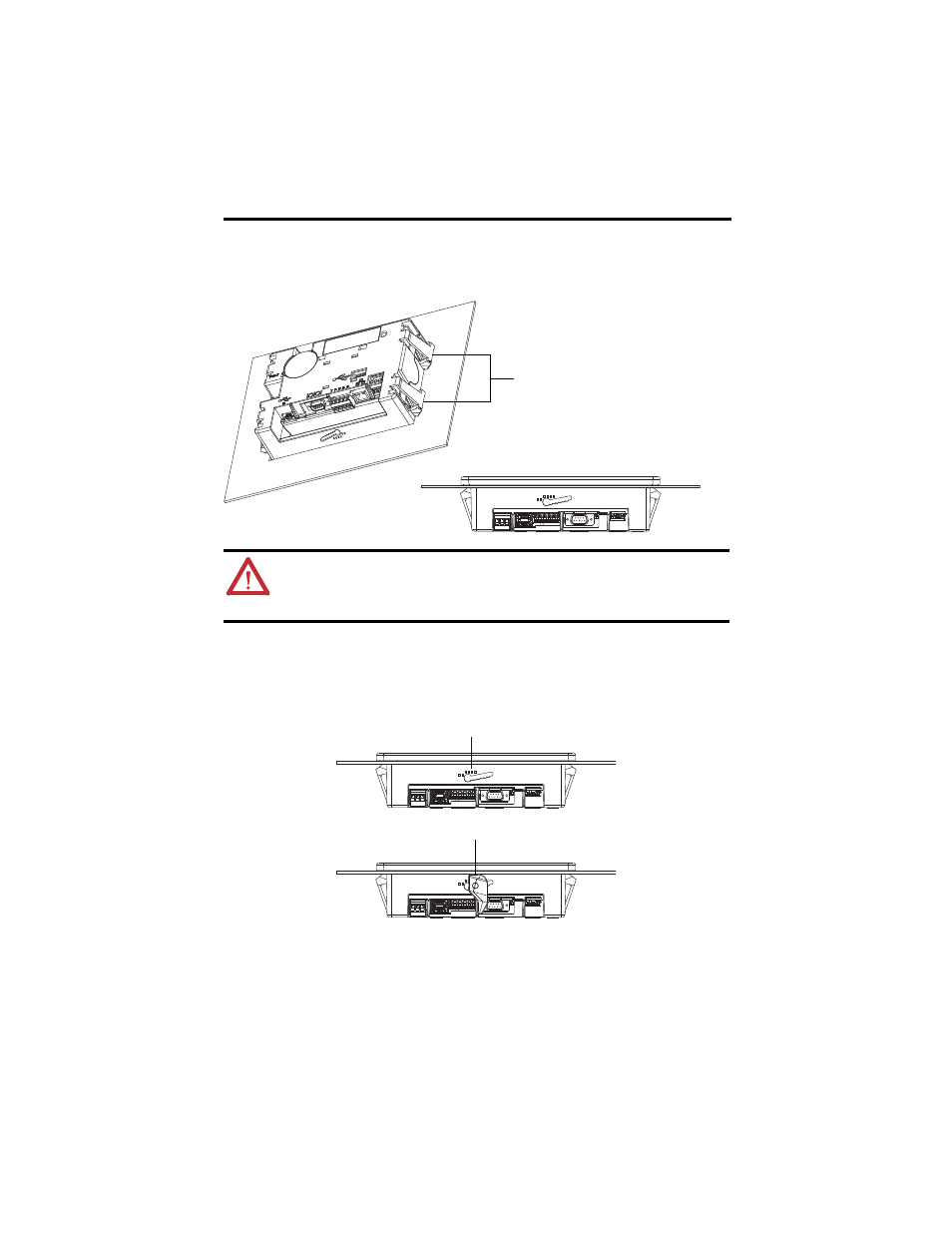

These views show the panel clamps fully extended to secure the terminal against the rear
of the panel.
For a C600 (2711C-T6M, -T6C Series C or later, 2711C-T6T Series A or later only)
terminal, continue with steps 5 through 7.
2. Insert a mounting lever into each mounting slot on the terminal.
Slide each lever until the short, flat side of the lever touches the surface of the panel.
3. When both levers are in place, slide each lever an additional notch or two until you hear a click.
ATTENTION: Follow the instructions to provide a proper seal and to prevent potential
damage to the terminal. Allen-Bradley assumes no responsibility for water or chemical
damage to the terminal or other equipment within the enclosure because of improper
installation.
6
1
6 1
44872
44871
Fully extended panel clamps
6 1
6 1
Mounting slot
Short, flat side of mounting lever
44905
44906
