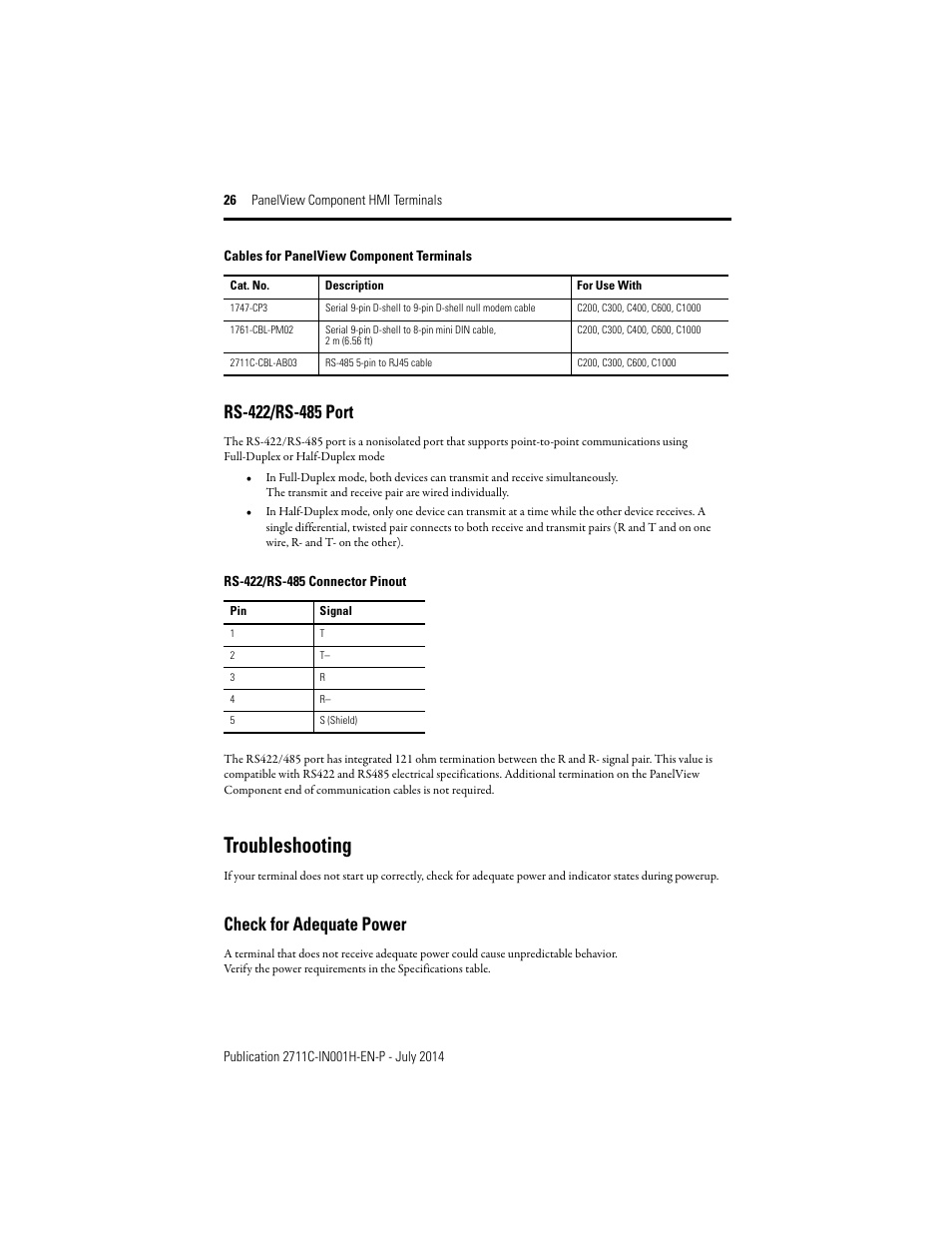

Rs-422/rs-485 port, Troubleshooting, Check for adequate power – Rockwell Automation 2711C-xxxx PanelView Component HMI Terminals Installation Instructions User Manual
Page 26
